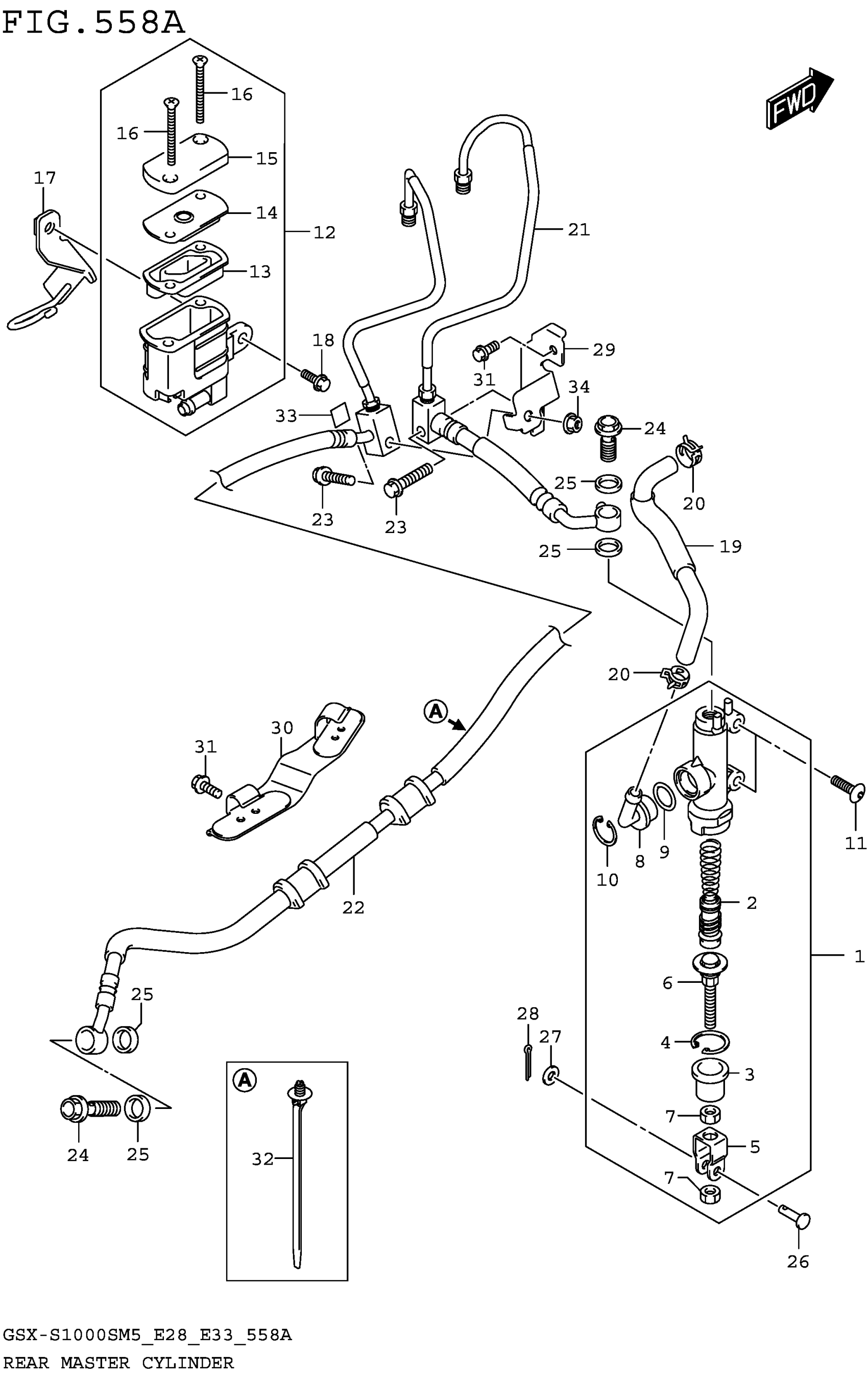

Suzuki GSX-S1000SRQM5 (2025) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-47H31

$222.47

2

.PISTON/CUP SET

69600-34810

$56.48

3

.BOOT

69691-04A00

$5.17

4

.CIRCLIP

69665-47H00

$5.02

5

.YOKE

69692-47H00

$11.87

6

.ROD,PUSH

69670-17K00

$17.32

7

.NUT

69693-47H00

$2.48

8

.CONNECTOR

69672-00B20

$7.01

9

.O-RING

69686-34200

$2.93

10

.CIRCLIP

69674-00B20

$3.97

11

BOLT

09139-06233

Unavailable

12

TANK ASSY,RESERVOIR

69740-18K00

$28.10

13

.DIAPHRAGM

69667-01H00

$6.30

14

.PLATE,DIAPHRAGM

69668-01H00

$5.98

15

.CAP

69669-18K00

$14.37

16

.SCREW

69689-01H00

$4.45

17

BRACKET, RR RESERVOIR TANK

69750-07L00

Unavailable

18

BOLT

01547-0612A

$2.03

19

HOSE, RR RESERVOIR TANK

69730-07L10

Unavailable

20

CLIP

09401-12412

Unavailable

21

HOSE ASSY, RR BK MASTER TO | UNIT

69200-04K21

Unavailable

22

HOSE ASSY, UNIT TO RR BK CLPR

69400-04K21

$115.22

23

BOLT

01547-0625A

$2.01

24

UNION This part replaces 09360-10042.

09360-10062

$6.43

25

WASHER (10X15X1.5)

09161-10009

$1.84

26

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

27

WASHER

08322-0106A

$1.84

28

PIN

04111-2015A

$1.49

29

CLAMP, RR BRAKE HOSE

69260-04K10

$7.95

30

GUIDE, RR BRAKE HOSE

69270-04K00

$19.45

31

BOLT

01547-0612A

$2.03

32

CLAMP (L:170)

09407-17403

$4.91

33

PROTECTOR, BRAKE HOSE

69411-04K00

$2.40

34

NUT (6X12)

08316-1006A

$2.19
