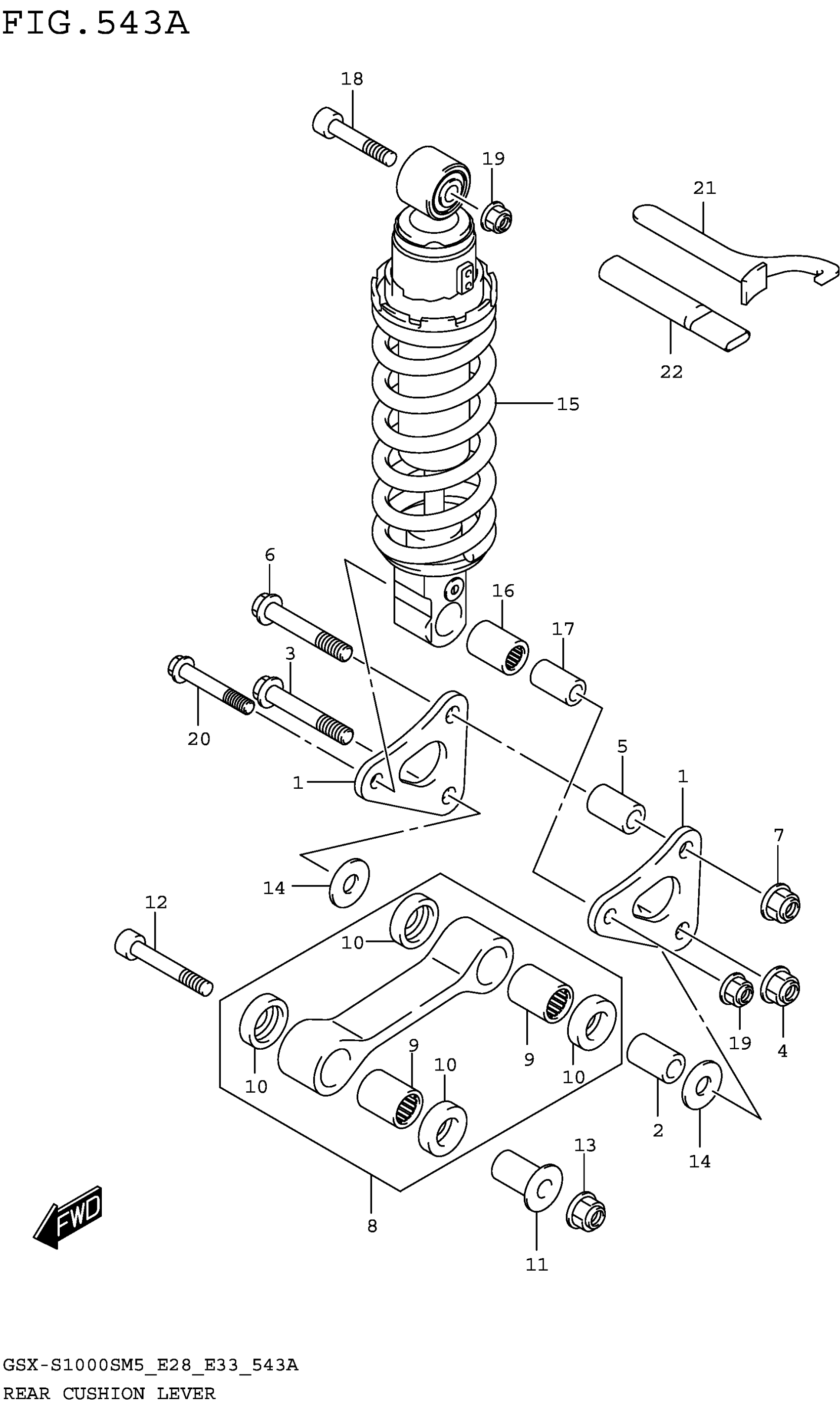

Suzuki GSX-S1000SRQM5 (2025) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER, REAR CUSHION

62611-04K00

$13.95

2

SPACER,RR CUSHION LEVER FR (1 | (12X20X34)

62317-27C10

$16.76

3

BOLT (12X62)

62668-42A02

$10.67

4

NUT

09159-12056

$7.37

5

SPACER,RR CUSHION LEVER FR

62317-44B00

$21.03

6

BOLT (12X62)

62668-42A02

$10.67

7

NUT

09159-12056

$7.37

8

ROD SET,RR CUSHION

62600-31850

$88.65

9

.BEARING (20X27X20)

09263-20063

Unavailable

10

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$5.24

11

SPACER,RR CUSHION ROD FR

62647-47H00

$35.28

12

BOLT,RR CUSHION ROD

62658-04K00

$14.37

13

NUT

09159-12056

$7.37

14

WASHER (12X34X1.0)

09160-12037

$3.83

15

ABSORBER ASSY, REAR SHOCK | (GRAY)

62100-48K50-17U

Unavailable

16

BEARING (17X24X32)

09263-17046

$41.45

17

SPACER,RR SHOCK ABS LWR

62317-47H00

$20.45

18

BOLT,RR SHOCK ABS UPPER

62658-04K10

$14.37

19

NUT (M10)

09159-10115

$3.55

20

BOLT (10X58)

09103-10428

$5.07

21

CLAMP,WRENCH

09822-00005

$15.16

22

HANDLE

09817-00037

$5.52
