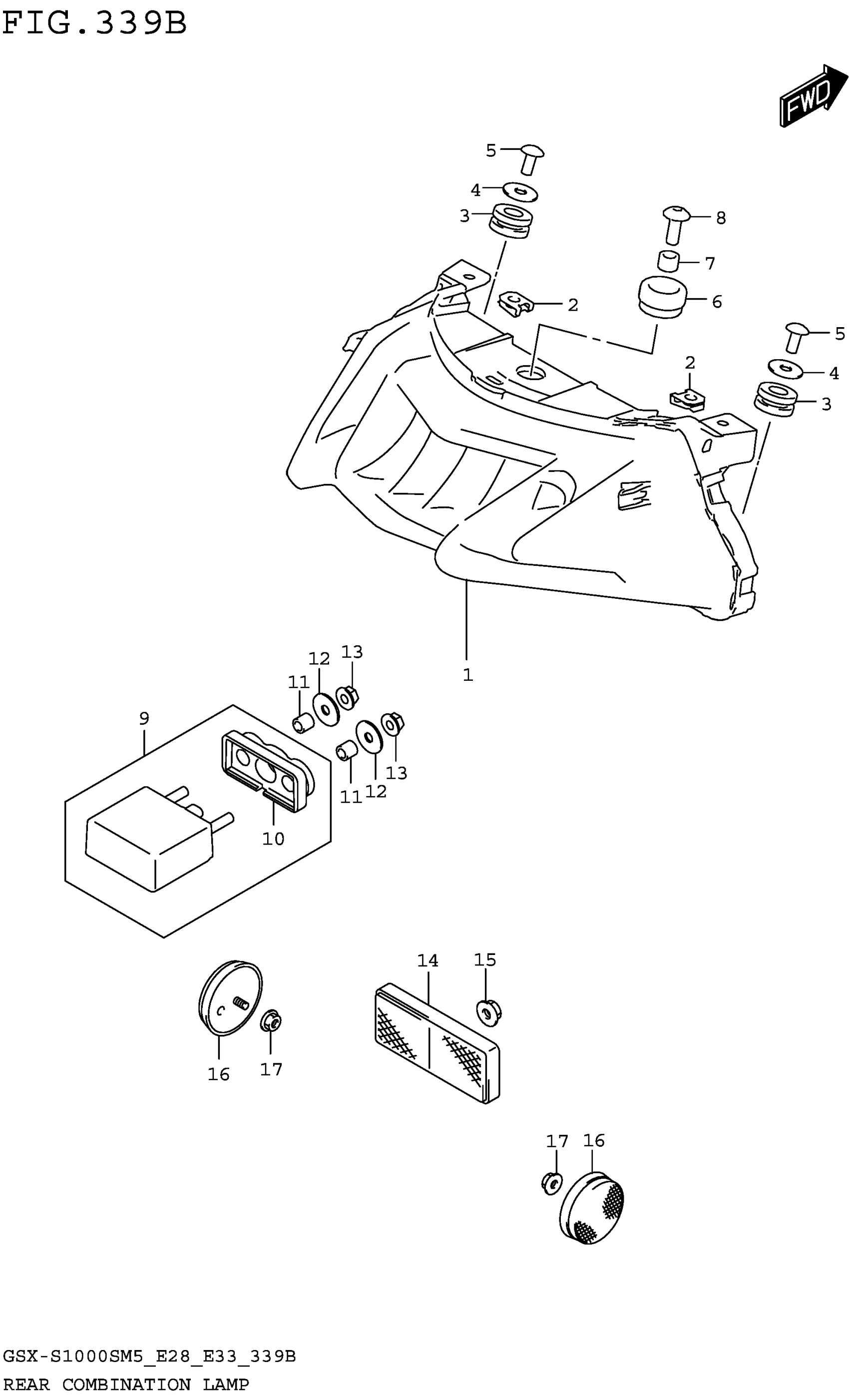

Suzuki GSX-S1000SRQM5 (2025) REAR COMBINATION LAMP (GSX-S1000SRQM5_E33) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMB

35710-07L00

$532.58

2

NUT (M5)

09148-05045

$2.36

3

CUSHION

09320-10073

$2.27

4

WASHER (5.5X18X1.0)

09160-05045

$1.93

5

SCREW

03541-0512A

$1.49

6

CUSHION (10X24X13)

47312-37H10

$2.91

7

SPACER (6.5X9X8)

09180-06261

$1.91

8

SCREW (6X16)

09139-06030

$3.70

9

LAMP ASSY, LICENSE

35910-17KA0

$183.68

10

.RUBBER

35913-17K00

$16.87

11

SPACER (6.5X9X9)

09180-06263

$2.03

12

WASHER (5.5X18X1.0)

09160-05045

$1.93

13

NUT

08316-1005A

$2.19

14

REFLECTOR ASSY,RR

35970-07F01

$20.88

15

NUT

08316-1005A

$2.19

16

REFLECTOR ASSY,REAR SIDE

35970-13K00

$16.28

17

NUT

08316-1005A

$2.19
