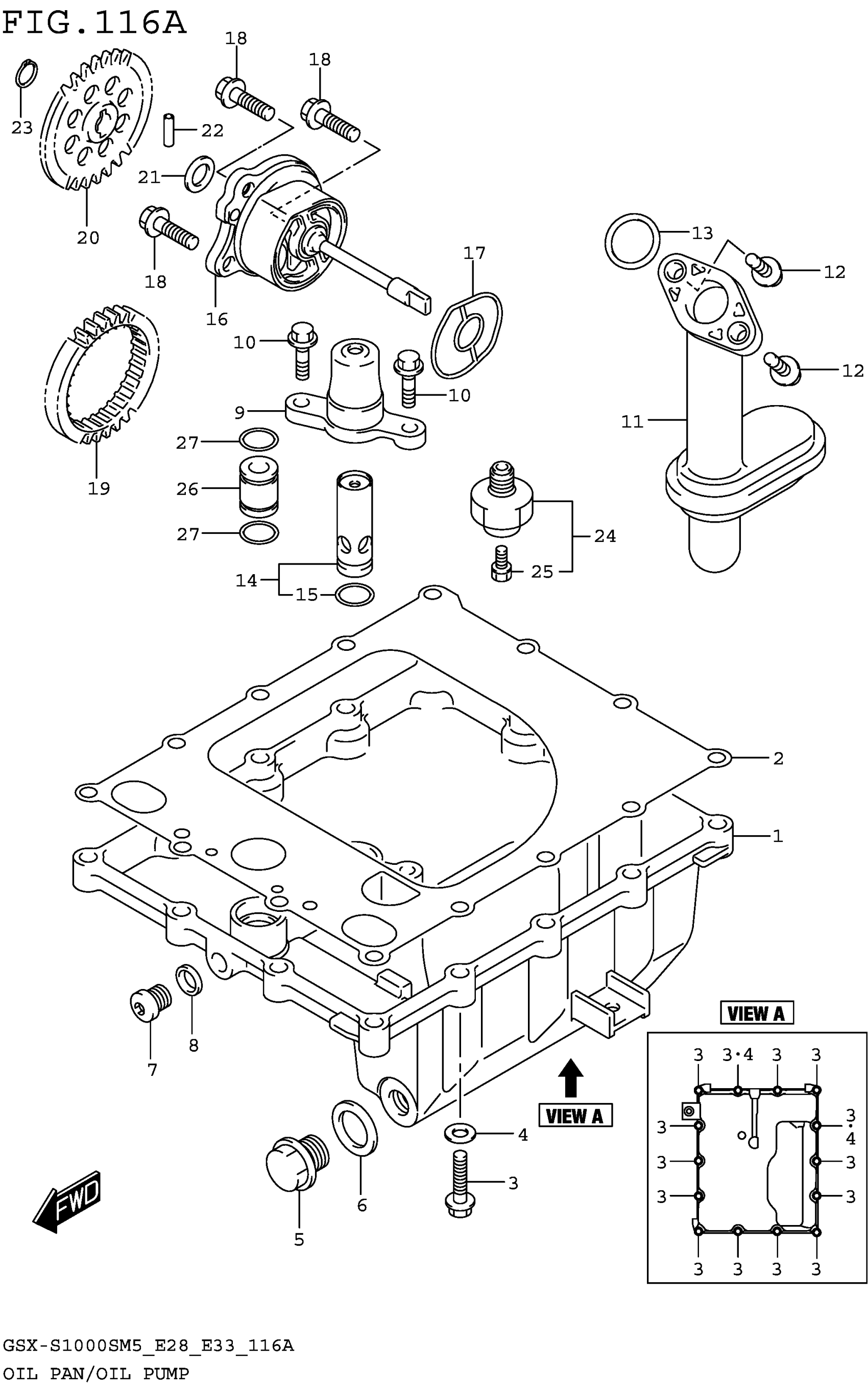

Suzuki GSX-S1000SRQM5 (2025) OIL PAN/OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11511-21H01

$153.23

2

.GASKET, OIL PAN

11489-21H00

$17.99

3

BOLT

01547-0625A

$2.01

4

GASKET (5.8X13X1.2)

09168-06023

$2.01

5

PLUG (14X20) | OIL DRAIN

09247-14036

$5.58

6

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

7

PLUG (10X10)

09248-10010

$3.82

8

GASKET (10X14X3.6)

09168-10002

$1.96

9

CAP, OIL RELIEF VALVE

11512-44G00

$24.83

10

BOLT

01547-0620A

$2.01

11

STRAINER, ENG OIL

16520-04K00

$36.30

12

BOLT (6X20)

01550-0620A

$1.97

13

O-RING (D:2.62,ID:20.3)

09280-19008

$4.97

14

VALVE ASSY,OIL RELIEF (7K)

16440-24F00

$45.80

15

.O-RING (D:1.9,ID:13)

09280-13004

$2.19

16

PUMP ASSY, ENGINE OIL

16400-21H00

$178.48

17

O RING

16491-35F00

$5.69

18

BOLT

01547-0620A

$2.01

19

GEAR, OIL PUMP DRIVE (NT:33)

16321-35F01

$78.32

20

GEAR, OIL PUMP DRIVEN (NT:35)

16331-35F00

$83.62

21

SHIM (10X18X0.5)

09181-10158

$1.97

22

PIN (4X15.8)

09261-04009

$1.50

23

CIRCLIP

08331-31109

$1.77

24

SWITCH ASSY,OIL PRESSURE

37820-33D11

$27.58

25

.BOLT,OIL PRESSURE SWITCH

37822-33D00

$4.92

26

PIPE, OIL GALLERY

11281-44G00

$15.63

27

.O-RING (D:1.9,ID:13)

09280-13004

$2.19
