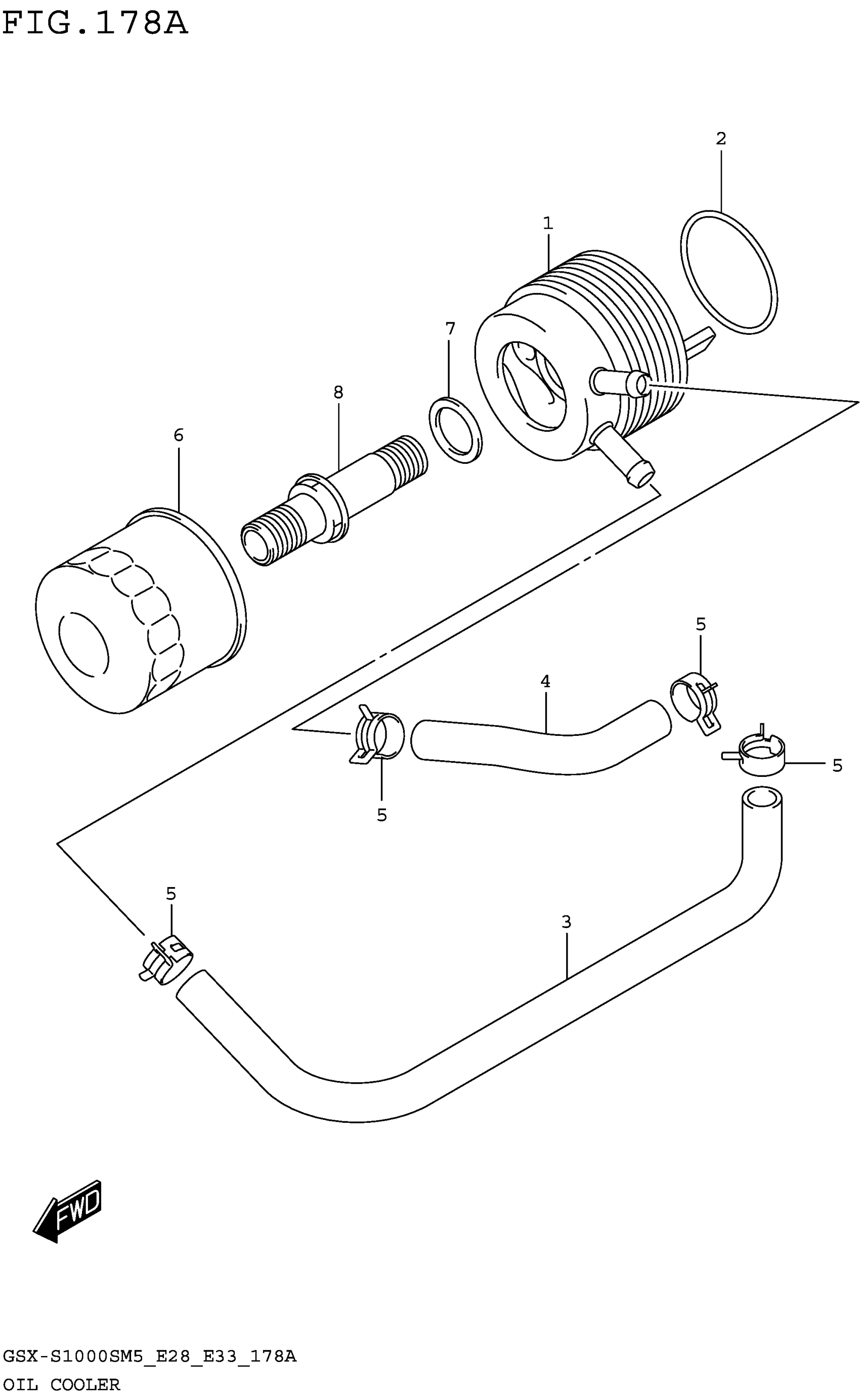

Suzuki GSX-S1000SRQM5 (2025) OIL COOLER Diagram

#

Description

Price

1

COOLER ASSY, OIL

16600-04K00

$603.02

2

.O-RING,OIL COOLER

16611-48K00

$4.47

3

HOSE, OIL COOLER WATER INLET

16461-04K00

$25.33

4

HOSE, OIL COOLER WATER OUTLET

16471-04K00

Unavailable

5

CLIP (ID:16.5)

09401-16407

$2.53

6

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

$11.99

7

SHIM (21X31X0.8)

09181-21002

$3.18

8

BOLT, OIL COOLER UNION

16591-04K00

$35.13
