Description

Price

1

GASKET SET | OPT

11401-48890

$230.60

2

.GASKET, CYLINDER HEAD | OPT,NOT ILLUSTRATED

11141-21H00

$89.92

3

.GASKET, CYL HEAD COVER NO.1 | OPT,NOT ILLUSTRATED

11173-35F00

$49.57

4

.GASKET,CYL HEAD COVER NO.2 | OPT,NOT ILLUSTRATED

11178-33E00

$6.20

5

.GASKET,2ND AIR PASSAGE | OPT,NOT ILLUSTRATED

11182-35F10

$4.72

6

WASHER,CYL HEAD COVER (10.6X2 | (10.6X25.5X1.6) OPT,NOT ILLUSTRATED

11191-27E00

$4.27

7

.GASKET, CLUTCH COVER | OPT,NOT ILLUSTRATED

11482-40F10

$15.69

8

.GASKET, MAGNETO COVER | OPT,NOT ILLUSTRATED

11483-18G00

$11.07

9

.GASKET, BREATHER COVER | OPT,NOT ILLUSTRATED

11484-35F00

$4.94

10

.GASKET, OIL PAN | OPT,NOT ILLUSTRATED

11489-21H00

$19.66

11

.GASKET, STARTER CLUTCH COVER | OPT,NOT ILLUSTRATED

11491-33E02

$8.73

12

.GASKET, START IDLE GR CAP | OPT,NOT ILLUSTRATED

11492-04K00

$7.21

13

.GASKET, TENSIONER ADJUSTER | OPT,NOT ILLUSTRATED

12837-48K00

$2.68

14

.GASKET,EXHAUST PIPE | OPT,NOT ILLUSTRATED

14181-04K00

$8.29

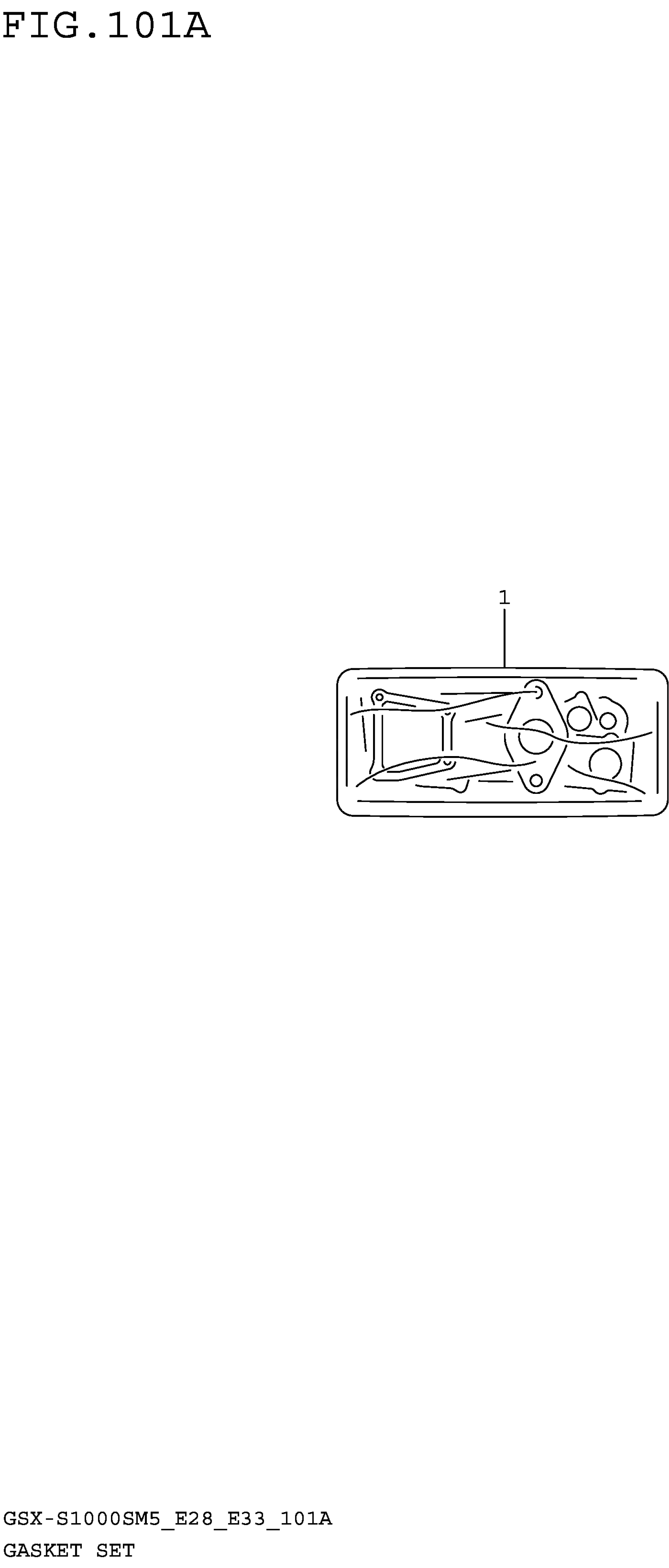

Suzuki GSX-S1000SRQM5 (2025) GASKET SET Diagram
