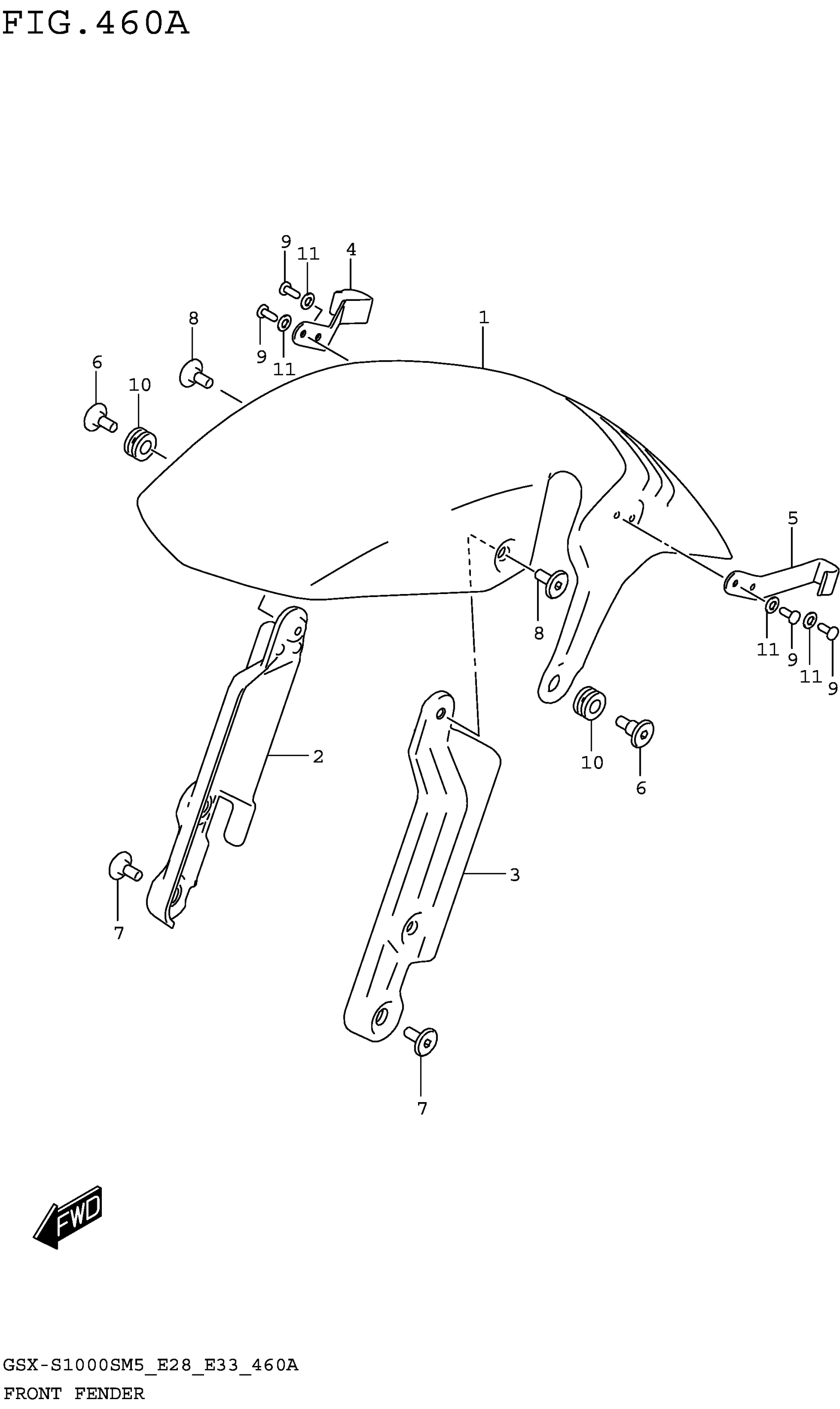

Suzuki GSX-S1000SRQM5 (2025) FRONT FENDER Diagram

#

Description
Price

1-1

FENDER, FRONT (BLUE)

53111-07L00-YKY

Unavailable

1-2

FENDER, FRONT (SILVER)

53111-07L00-YMD

$223.05

2

BRACKET, FRONT FENDER RH | (BLACK)

53112-07L00-YAP

$167.10

3

BRACKET, FRONT FENDER LH | (BLACK)

53113-07L00-YAP

$167.10

4

CLAMP, BRAKE HOSE RH

53117-07L00

$7.82

5

CLAMP, BRAKE HOSE LH

53118-07L00

$7.82

6

SCREW (6X20)

09139-06211

$3.44

7

SCREW (6X16)

09139-06221

$2.92

8

SCREW (6X16)

09139-06222

$2.92

9

RIVET

09229-04038

$1.49

10

CUSHION (9X18X9.5)

09320-09016

$1.97

11

WASHER (4.15X12X0.8)

09160-04030

$2.05
