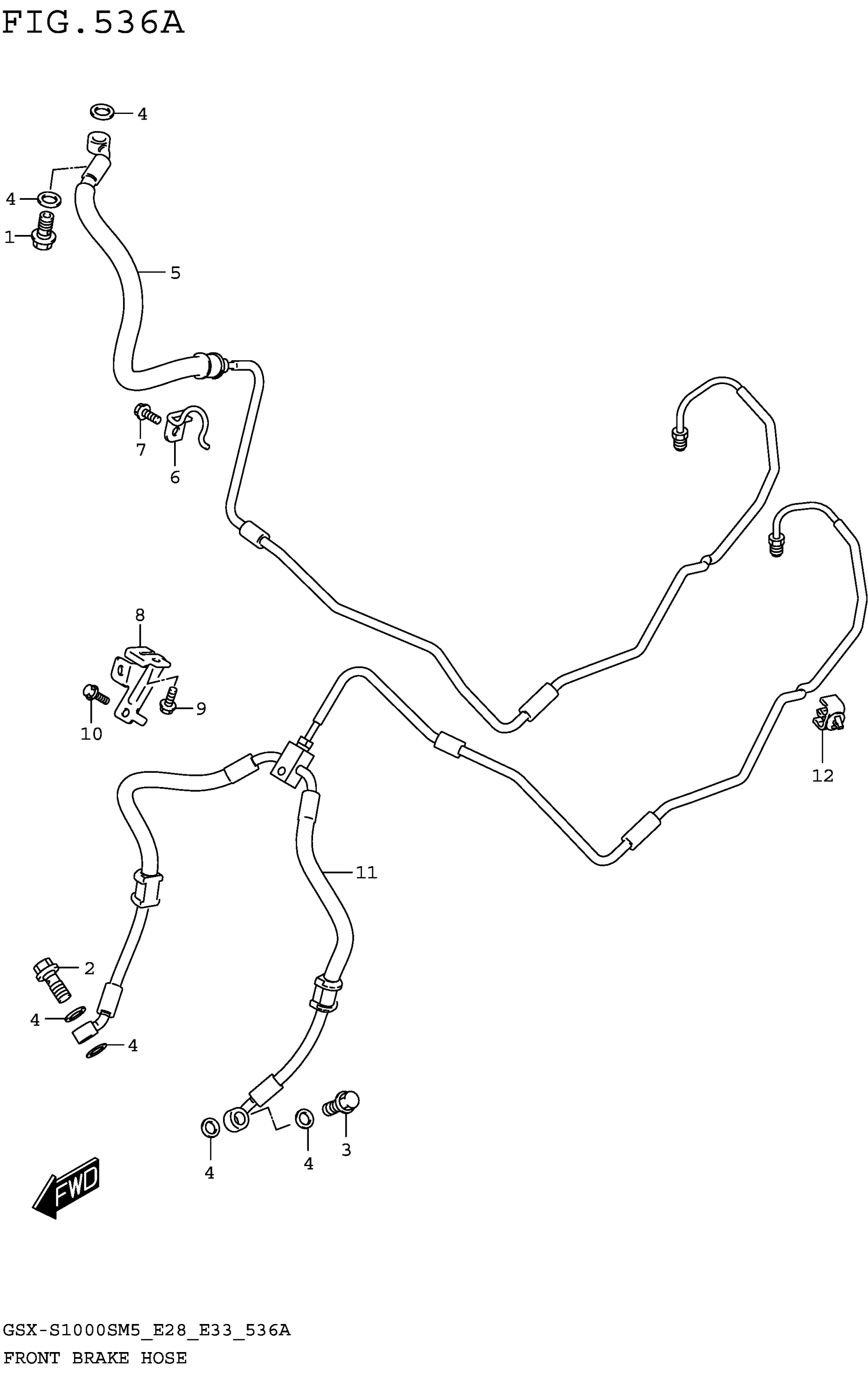

Suzuki GSX-S1000SRQM5 (2025) FRONT BRAKE HOSE Diagram

#

Description
Price

1

UNION This part replaces 09360-10042.

09360-10062

$6.43

2

UNION This part replaces 09360-10042.

09360-10062

$6.43

3

UNION This part replaces 09360-10042.

09360-10062

$6.43

4

WASHER (10X15X1.5)

09161-10009

$1.84

5

HOSE ASSY, FR BK MASTER TO | UNIT

59200-48K11

$90.67

6

CLAMP, FR BRAKE HOSE UPPER

59260-04K10

Unavailable

7

BOLT

01547-0612B

$1.49

8

CLAMP, FR BK HOSE LOWER

59270-48K00

$19.57

9

BOLT

01550-0616B

$2.48

10

BOLT

01547-0616B

$2.45

11

HOSE ASSY, UNIT TO FR BK CLPR

59400-04K71

Unavailable

12

CLAMP

09403-07346

$3.20
