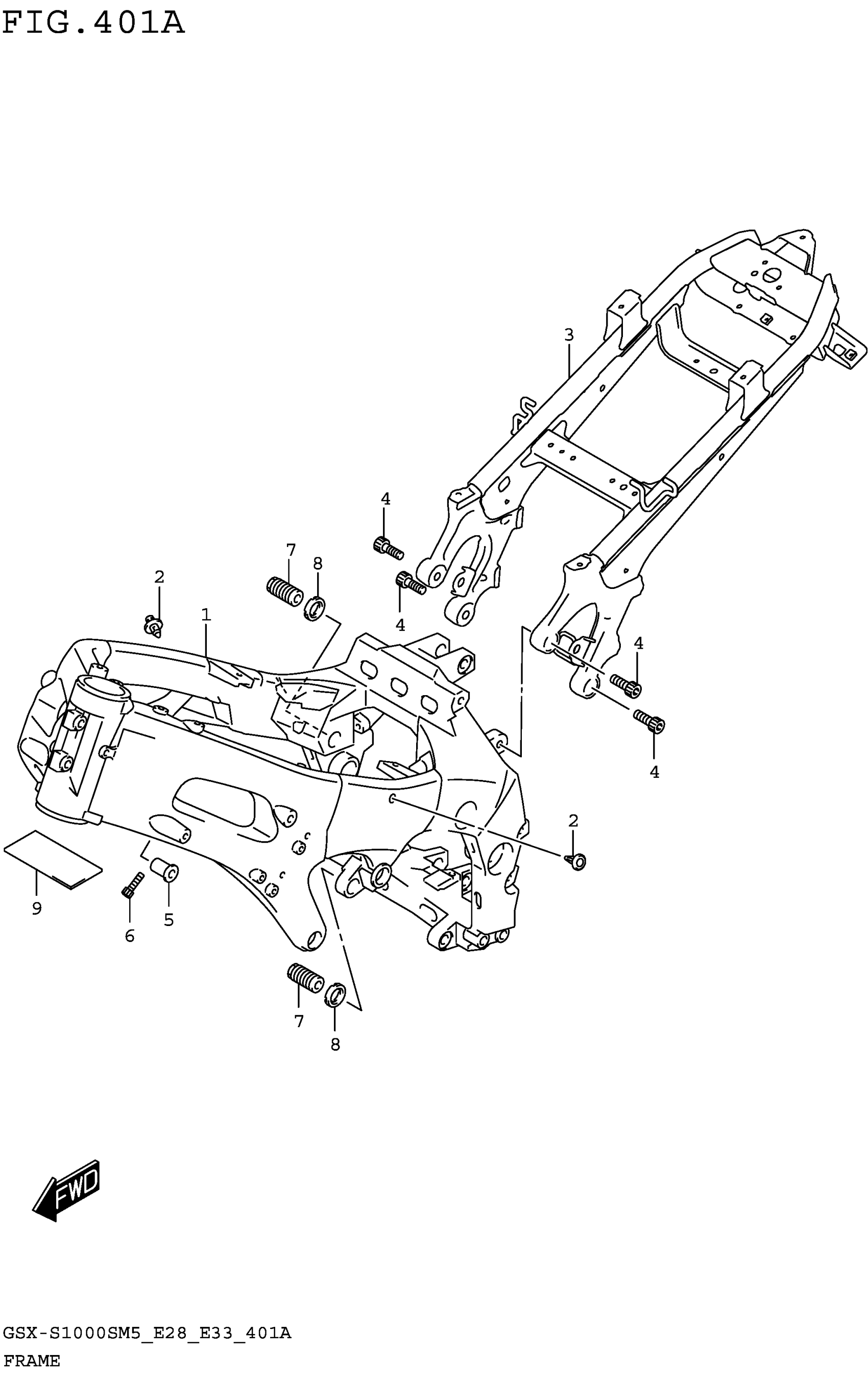

Suzuki GSX-S1000SRQM5 (2025) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-04K11-YAP

$2,601.07

2

PLUG, TANK RAIL

43585-01H01

$4.78

3

RAIL, SEAT (BLACK)

41200-07L00-YAP

$1,356.97

4

BOLT

09106-10097

Unavailable

5

SPACER,ENGINE MOUNTING

41911-40F01

$22.56

6

BOLT

09106-08205

$3.33

7

BOLT,CRANK CASE ADJUST LWR

41921-16G11

$11.93

8

NUT,CRANK CASE ADJUST LWR

41922-33E20

Unavailable

9

CUSHION, FRAME HEAD

41139-21H10

Unavailable
