Description

Price

1

RELAY ASSY,STARTING MOTOR

31800-38G10

$97.31

2

.COVER

31861-38G00

$4.88

3

.FUSE (30A)

09481-30501

$2.32

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-07L00

$324.10

6

SPACER (6.2X14.5X26)

09180-06345

$10.28

7

SPACER (6.2X8.4X6.1)

09180-06374

Unavailable

8

CUSHION (8.4X18X6)

09320-08066

$8.24

9

BOLT

01550-0655A

Unavailable

10

NUT (6X12)

08316-1006A

$2.19

11

COIL ASSY, IGNITION

33410-47H00

$150.98

12

HARDWARE, FI CONTROL UNIT

32910-48K00

$923.70

13

CUSHION,FI CONTROL UNIT This part replaces 33652-23H10.

33652-23H11

$1.74

14

CUSHION (30X40X2.0)

33652-36100

$2.36

15

CUSHION,TANK COVER FR (10X30X | (10X30X8)

44277-18K00

$2.90

16

BAND

09462-00015

$11.10

17

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

18

ACTUATOR ASSY, EXHAUST CONTRO

33970-48G02

$409.57

19

SPACER (6.2X14.5X26)

09180-06345

$10.28

20

BOLT

01550-0650A

$2.85

21

BOLT

01550-0655A

Unavailable

22

CLAMP

09407-14413

Unavailable

23

CLAMP (L:145)

09407-14407

$3.57

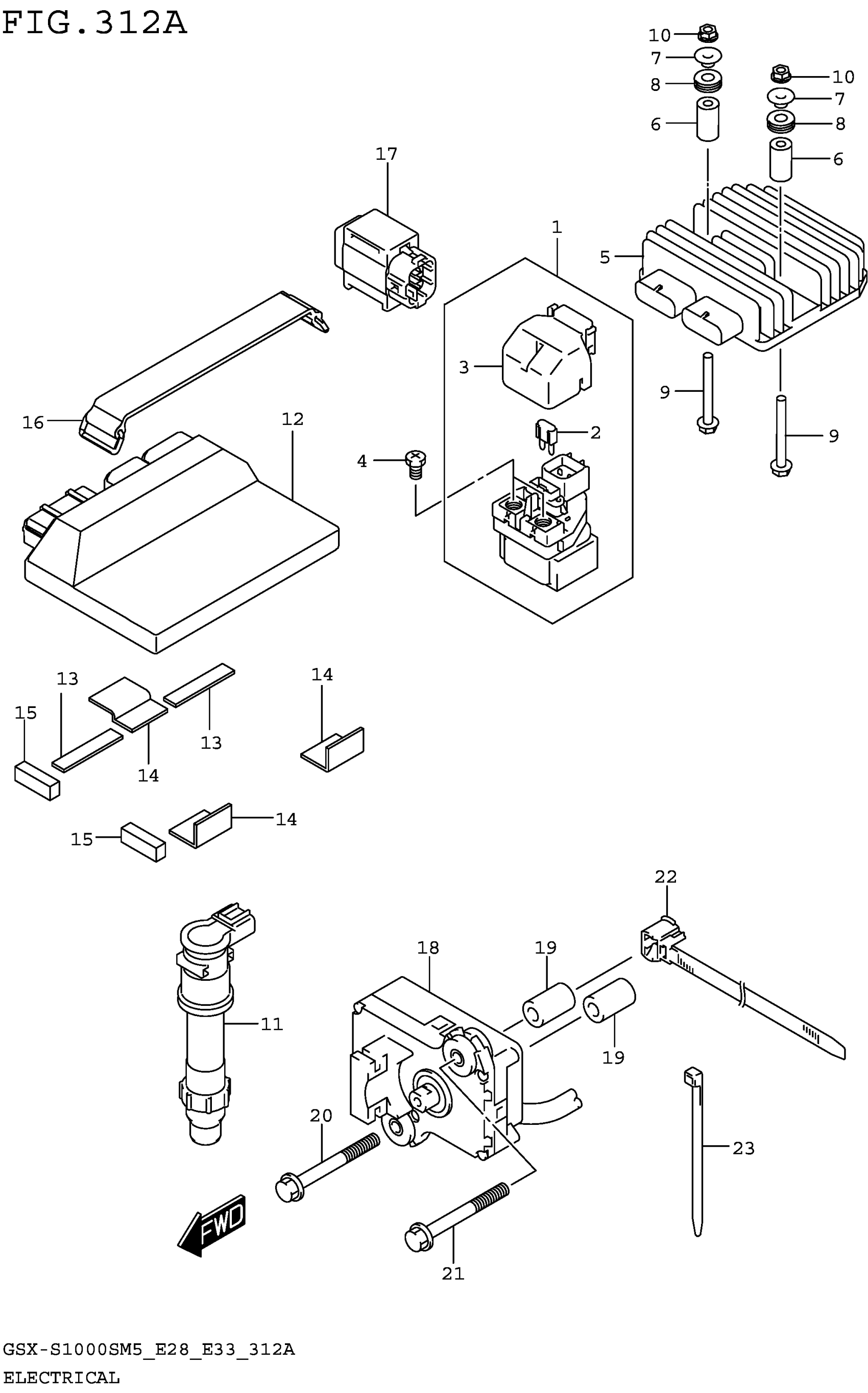

Suzuki GSX-S1000SRQM5 (2025) ELECTRICAL Diagram

RELAY ASSY,STARTING MOTOR

.COVER

.FUSE (30A)

SCREW (6X8)

RECTIFIER ASSY

SPACER (6.2X14.5X26)

SPACER (6.2X8.4X6.1)

CUSHION (8.4X18X6)

BOLT

NUT (6X12)

COIL ASSY, IGNITION

HARDWARE, FI CONTROL UNIT

CUSHION,FI CONTROL UNIT This part replaces 33652-23H10.

CUSHION (30X40X2.0)

CUSHION,TANK COVER FR (10X30X | (10X30X8)

BAND

SENSOR ASSY,FUEL CUT

ACTUATOR ASSY, EXHAUST CONTRO

SPACER (6.2X14.5X26)

BOLT

BOLT

CLAMP

CLAMP (L:145)
