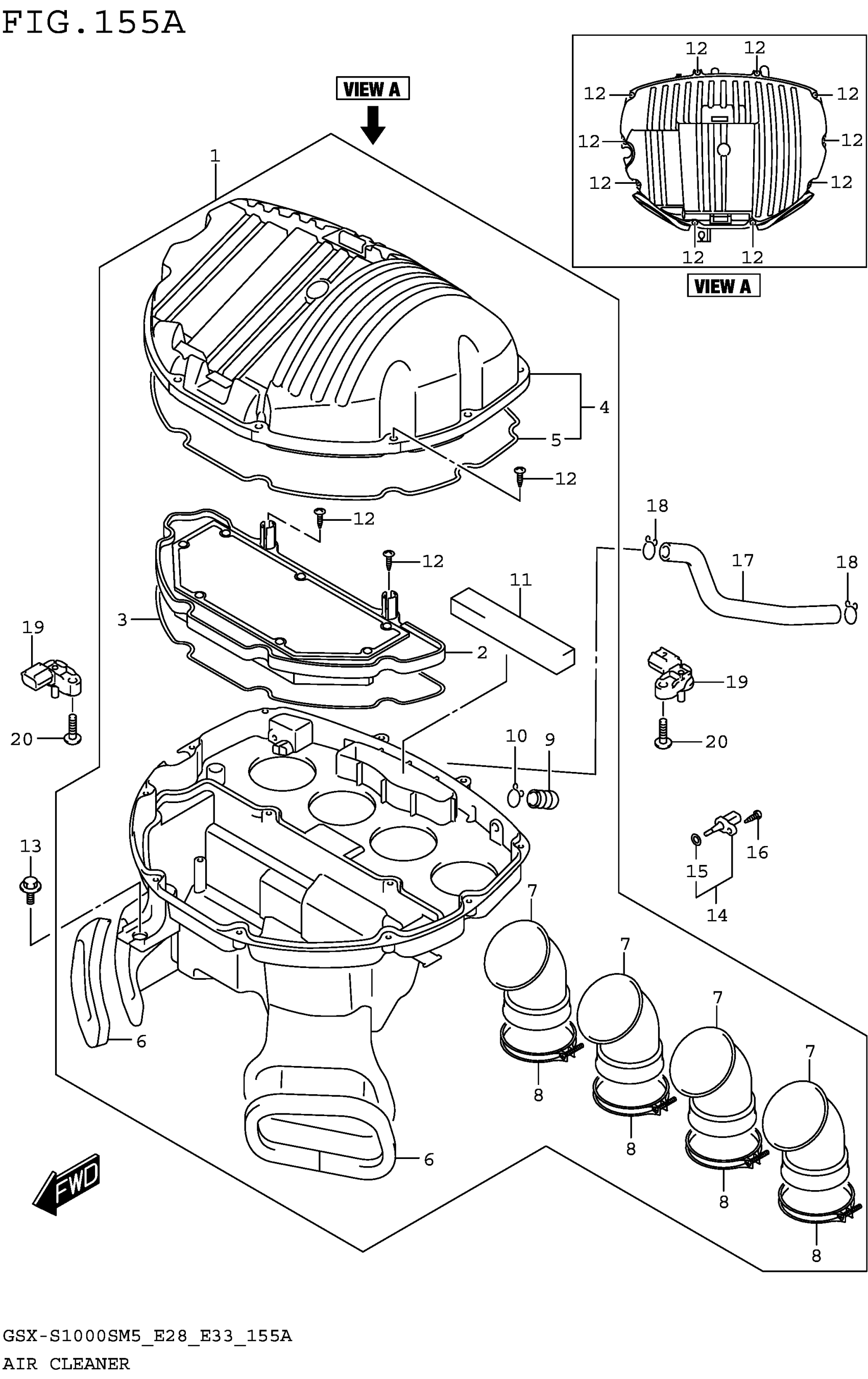

Suzuki GSX-S1000SRQM5 (2025) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-48K00

$304.75

2

.FILTER ASSY

13780-48K00

$57.48

3

.GASKET FILTER

13756-48K00

$16.80

4

.CAP, AIR CLEANER

13740-48K00

$64.42

5

..GASKET, CAP

13746-48K00

$19.70

6

.CUSHION, DUCT

13736-48K00

$9.40

7

.TUBE, OUTLET

13881-48K00

$20.87

8

CLAMP,INTAKE PIPE

13827-40H01

$17.33

9

.PLUG

13878-10G01

$6.53

10

.CLIP

09401-14301

$2.17

11

.FILTER BREATHER

13788-48K00

$5.17

12

SCREW

03541-0520A

$1.88

13

BOLT (6X16)

09111-06089

$2.70

14

SENSOR,AIR TEMP

13650-41F10

$71.40

15

O-RING

13655-41F10

Unavailable

16

SCREW

03511-0516A

$1.95

17

HOSE, BREATHER

13853-04K01

Unavailable

18

.CLIP (ID:14.5)

09401-14101

$2.44

19

SENSOR,BOOST

18590-18K10

$234.95

20

SCREW

03541-0520A

$1.88
