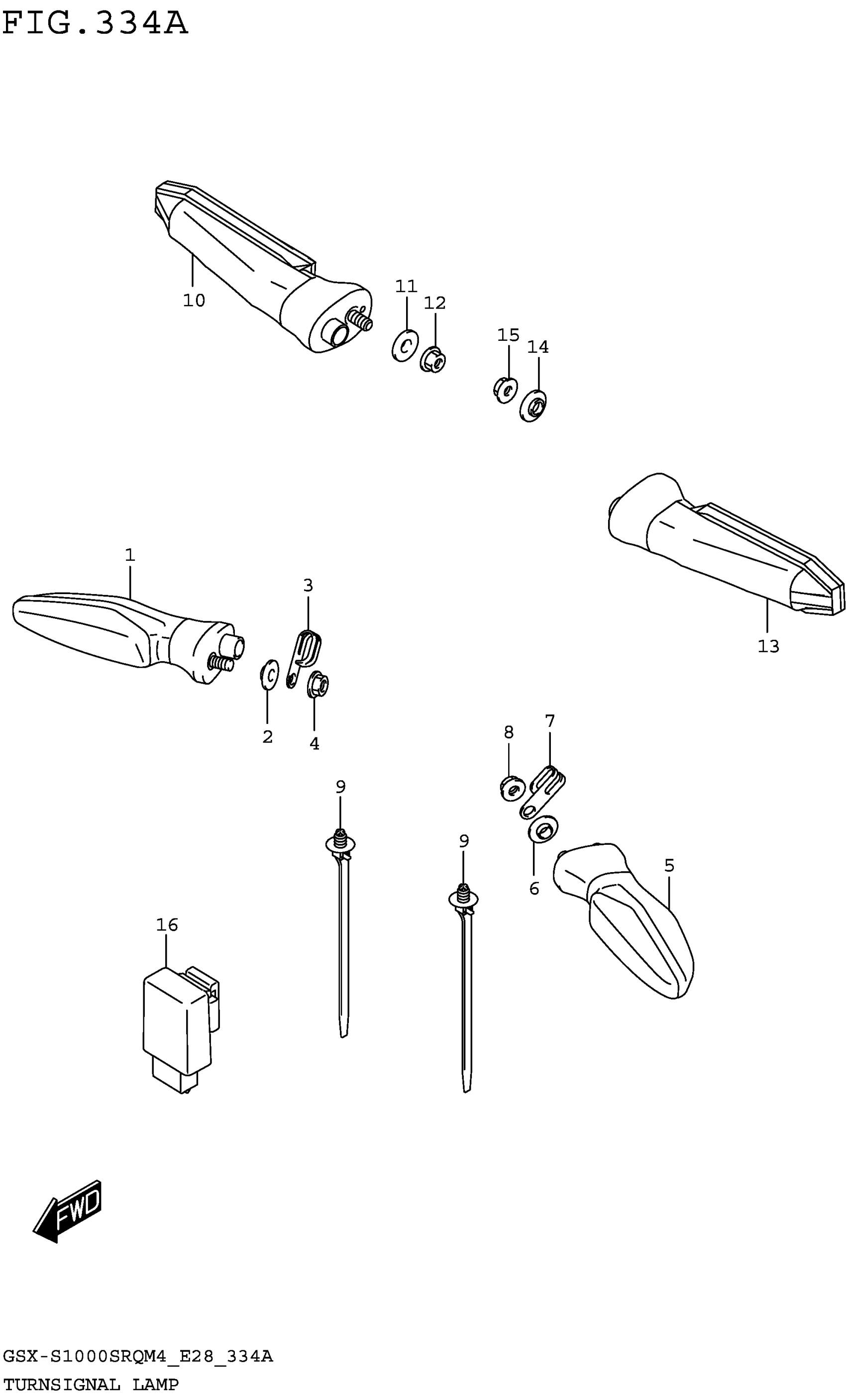

Suzuki GSX-S1000SRQM4 (2024) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL R

35601-06LF0

$117.73

2

WASHER

09169-06100

$1.49

3

CLAMP (L:45)

09404-06429

$1.83

4

NUT (6X12)

08316-1006A

$2.19

5

LAMP ASSY, FRONT TURNSIGNAL L

35602-06LF0

$124.87

6

WASHER

09169-06100

$1.49

7

CLAMP (L:45)

09404-06429

$1.83

8

NUT (6X12)

08316-1006A

$2.19

9

CLAMP (L:170)

09407-17403

$4.91

10

LAMP ASSY, REAR TURNSIGNAL RH

35603-06LH0

Unavailable

11

WASHER

09169-06100

$1.49

12

NUT (6X12)

08316-1006A

$2.19

13

LAMP ASSY, REAR TURNSIGNAL LH

35604-06LH0

$129.23

14

WASHER

09169-06100

$1.49

15

NUT (6X12)

08316-1006A

$2.19

16

RELAY ASSY,TURNSIGNAL

38610-06LA0

$109.93
