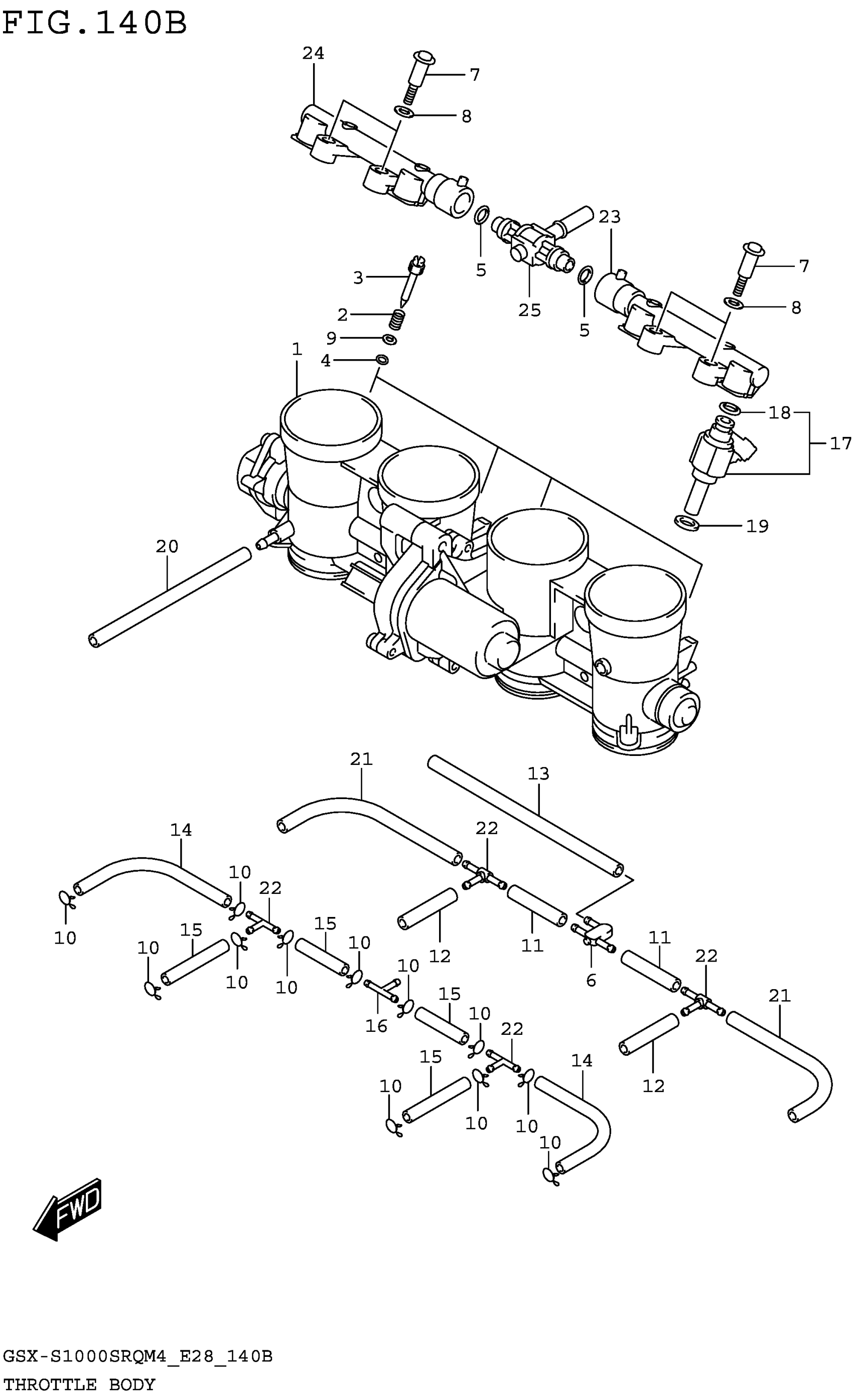

Suzuki GSX-S1000SRQM4 (2024) THROTTLE BODY (GSX-S1000SRQM4 E33) Diagram

#

Description
Price

1

BODY, THROTTLE

13405-48K00

Unavailable

2

SPRING,THROTTLE SCREW

13268-48700

$3.97

3

SCREW

13269-33E00

$10.45

4

O-RING

13295-29901

$3.97

5

O-RING

13374-32G00

$8.15

6

JOINT

13471-18H00

$11.83

7

SCREW

13601-29G00

$3.22

8

PACKING

13602-29G01

$2.52

9

WASHER

13606-47A00

$3.70

10

CLIP This part replaces 13671-12C00.

09401-06101

$2.06

11

HOSE (L:425)

13683-10F61

$19.30

12

HOSE

13683-07F01

$2.05

13

HOSE

13683-07F11

$6.28

14

HOSE (3.5X7.5X80)

13683-10L00

$3.25

15

HOSE

13683-48K00

$42.23

16

NIPPLE

13685-04F10

$12.50

17

INJECTOR ASSY

15710-04K00

$302.17

18

.O-RING

15717-58B00

$9.11

19

SEAL

15722-14J00

$10.70

20

.HOSE (3X7X600)

09355-30001-600

$7.83

21

HOSE (3.2X7.4X70)

13681-39F00-070

$3.37

22

3WAY,VACUUM HOSE This part replaces 13471-02FA0.

13685-02FA0

$7.95

23

DELIVERY PIPE

13471-10L00

$32.13

24

DELIVERY PIPE

13472-10L00

$32.13

25

NIPPLE ASSY

13473-17K00

$80.53
