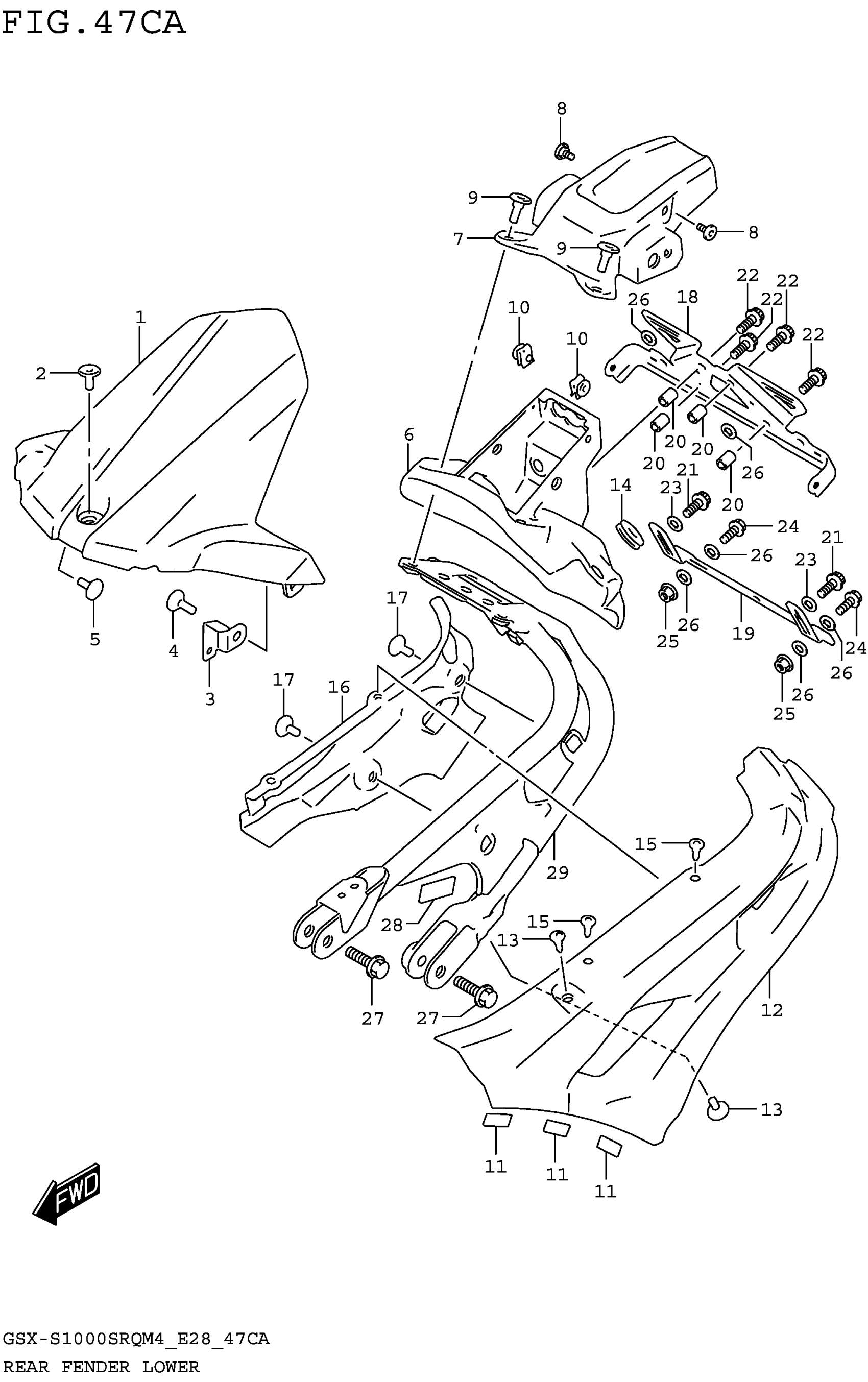

Suzuki GSX-S1000SRQM4 (2024) REAR FENDER LOWER Diagram

#

Description
Price

1

FENDER, REAR LOWER

63114-04K00

$44.37

2

BOLT, RR FENDER LWR

63129-07L00

Unavailable

3

BRACKET, RR FENDER LWR

63141-07L00

$5.38

4

BOLT, RR FENDER LWR LH

63145-07L00

$5.38

5

SCREW (6X16)

09139-06137

$2.61

6

FENDER, REAR REAR

63121-07L00

$53.22

7

COVER, REAR FENDER REAR

63122-07L00

$23.73

8

SCREW (5X13)

09139-05092

$2.25

9

SCREW (6X20)

09139-06223

$4.52

10

NUT (M5)

09148-05052

$3.37

11

CUSHION (10X30X2)

44894-24A00

$1.72

12

COVER, REAR FENDER REAR LH

63124-07L00

$65.00

13

SCREW (6X16)

09139-06221

$2.92

14

CUSHION (8X26X7)

09320-08028

$3.04

15

CLIP

09409-06329

$2.79

16

FENDER, REAR INNER

63125-07L00

Unavailable

17

SCREW (6X16)

09139-06221

$2.92

18

HOLDER, LICENSE PLATE

63130-07L00

$82.68

19

PLATE, LICENSE PLATE HOLDER

63132-07L00

$62.12

20

SPACER (10X16X10.5)

09180-10163

$11.70

21

BOLT

07120-0612B

$3.04

22

BOLT

07120-0620B

$3.04

23

WASHER

08322-0106B

$2.26

24

BOLT

01550-0616A

$1.97

25

NUT (6X12)

08316-1006A

$2.19

26

WASHER

08322-0106A

$1.84

27

.BOLT

01550-1035A

$3.55

28

CUSHION (10X24X1)

48128-14FA0

$6.47

29

BRACE, REAR FENDER

63210-07L00

Unavailable
