Description

Price

1

HEADLAMP ASSY This part replaces 35100-07L01.

35100-07LA0

$811.18

2

.CAP

35529-77R00

$9.93

3

CUSHION (10X20X10)

09320-10078

$4.16

4

SCREW (6X22.5)

09139-06118

$3.25

5

SCREW (6X20)

09139-06206

$3.32

6

CUSHION (9X18X10)

09320-09501

$2.03

7

LAMP ASSY, FRONT POSITION RH

36101-07L00

$258.85

8

LAMP ASSY, FRONT POSITION LH

36102-07L00

$258.85

9

CUSHION, POSITION LAMP RH

36121-07L00

$8.33

10

CUSHION, POSITION LAMP LH

36122-07L00

$8.33

11

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

$12.46

12

BOLT

09119-06109

$13.28

13

WASHER (8.5X18X1.0)

09160-08043

$1.83

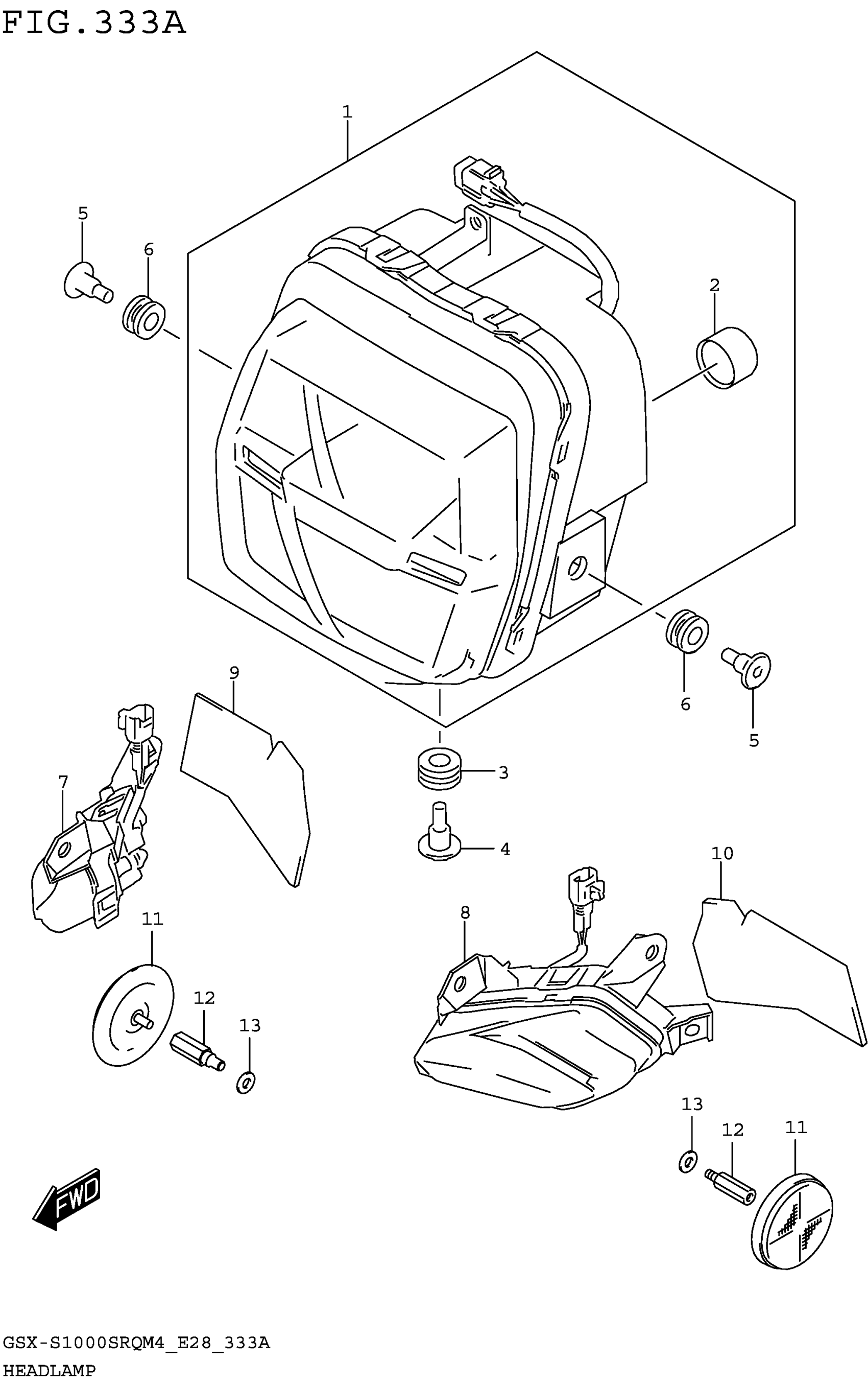

Suzuki GSX-S1000SRQM4 (2024) HEADLAMP Diagram
