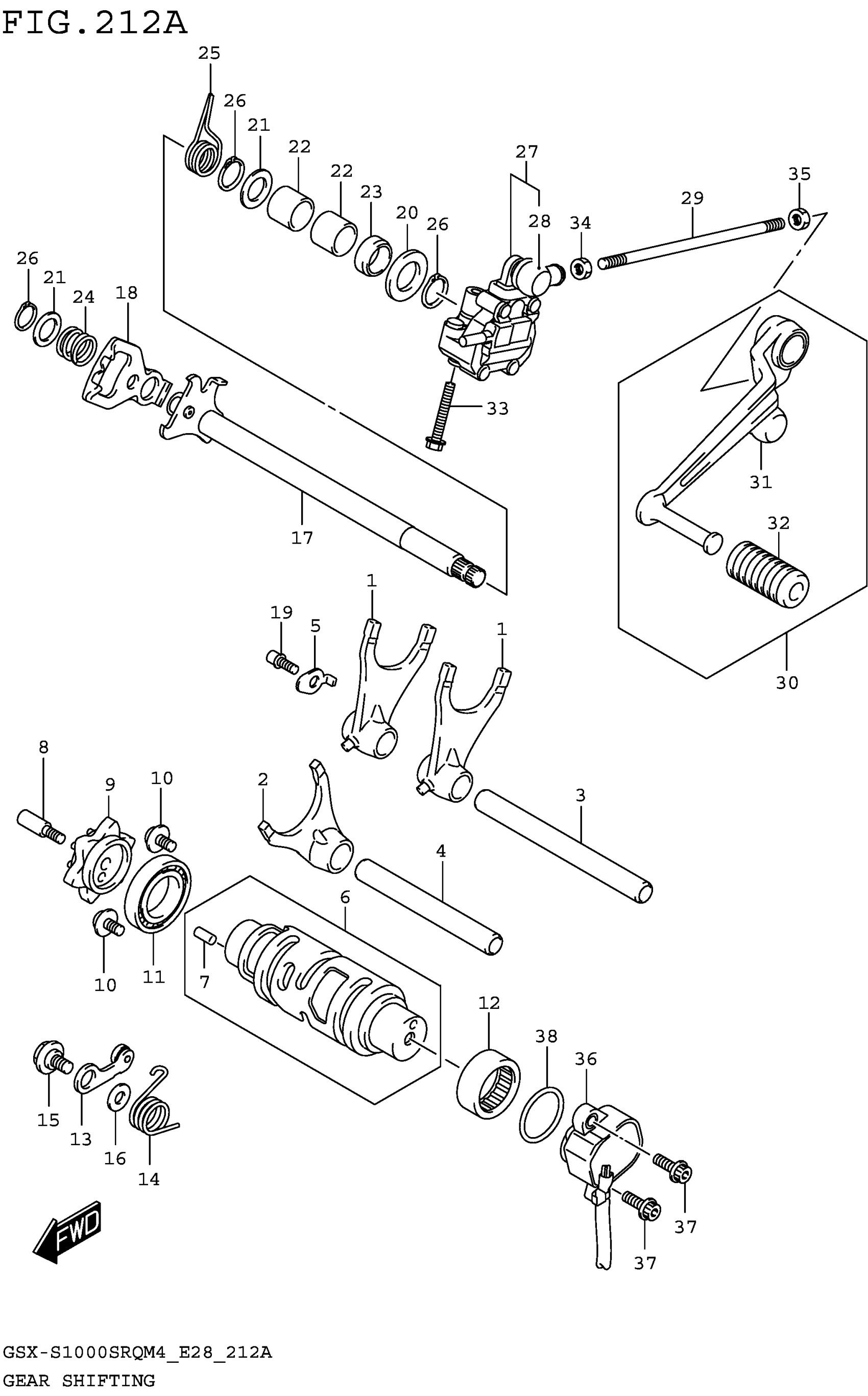

Suzuki GSX-S1000SRQM4 (2024) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-35F11

$79.26

2

FORK, GEAR SHIFT NO.3

25231-35F11

$116.12

3

SHAFT,SHIFT FORK NO.2 (L:132)

25411-24F00

$32.85

4

SHAFT,GEAR SHIFT FORK (L:110)

25411-26D01

$28.98

5

RETAINER, GEAR SHIFT FORK | SHAFT

25451-35F00

$6.83

6

CAM, GEAR SHIFT

25310-40F10

$180.85

7

PIN (4X13.8)

04221-04089

$1.10

8

BOLT,GEAR SHIFT CAM PLATE

25312-17K00

$26.05

9

PLATE,GEAR SHIFT CAM

25381-17K00

$49.37

10

SCREW (6X12)

09136-06147

$3.48

11

BEARING (25X47X8)

09262-25006

$23.05

12

BEARING (25X32X12)

09263-25018

$19.30

13

STOPPER, SHIFT CAM

25350-35F00

$19.62

14

SPRING,SHIFT

25355-35F01

$3.73

15

BOLT (6X14.3)

09111-06041

$2.63

16

WASHER

08211-06141

$1.61

17

SHAFT, GEAR SHIFT

25510-48K00

$75.55

18

PLATE,GEAR SHIFT CAM DRIVE

25512-06G20

$22.32

19

STOPPER, GEAR SHIFT ARM

25671-35F00

$5.18

20

WASHER (14X29X0.8)

09160-14016

$1.91

21

SHIM (14X22X1.0)

09181-14167

$2.55

22

BEARING (14X20X12)

09263-14027

$12.21

23

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.04

24

SPRING

09440-17009

$1.73

25

SPRING

09444-20003

$8.05

26

CIRCLIP

08331-3114A

$1.89

27

SENSOR ASSY, GEAR SHIFT

25500-48K00

$736.42

28

.COVER, DUST

25526-47001

$4.98

29

ROD, GEAR SHIFT LINK

25525-24F10

$12.38

30

LEVER ASSY, GEAR SHIFT

25600-04K11

$94.93

31

.COVER, DUST

25526-47001

$4.98

32

.RUBBER,GEAR SHIFT PEDAL

25652-20C00

$4.98

33

BOLT (L:45)

09103-06532

$2.27

34

NUT

08310-0006B

$2.37

35

NUT

09140-06032

Unavailable

36

SENSOR ASSY, GEAR POSITION

37730-48K00

$174.47

37

BOLT (5X16)

09106-05023

$2.80

38

O-RING (D:2.4,ID:26.2)

09280-26005

$2.31
