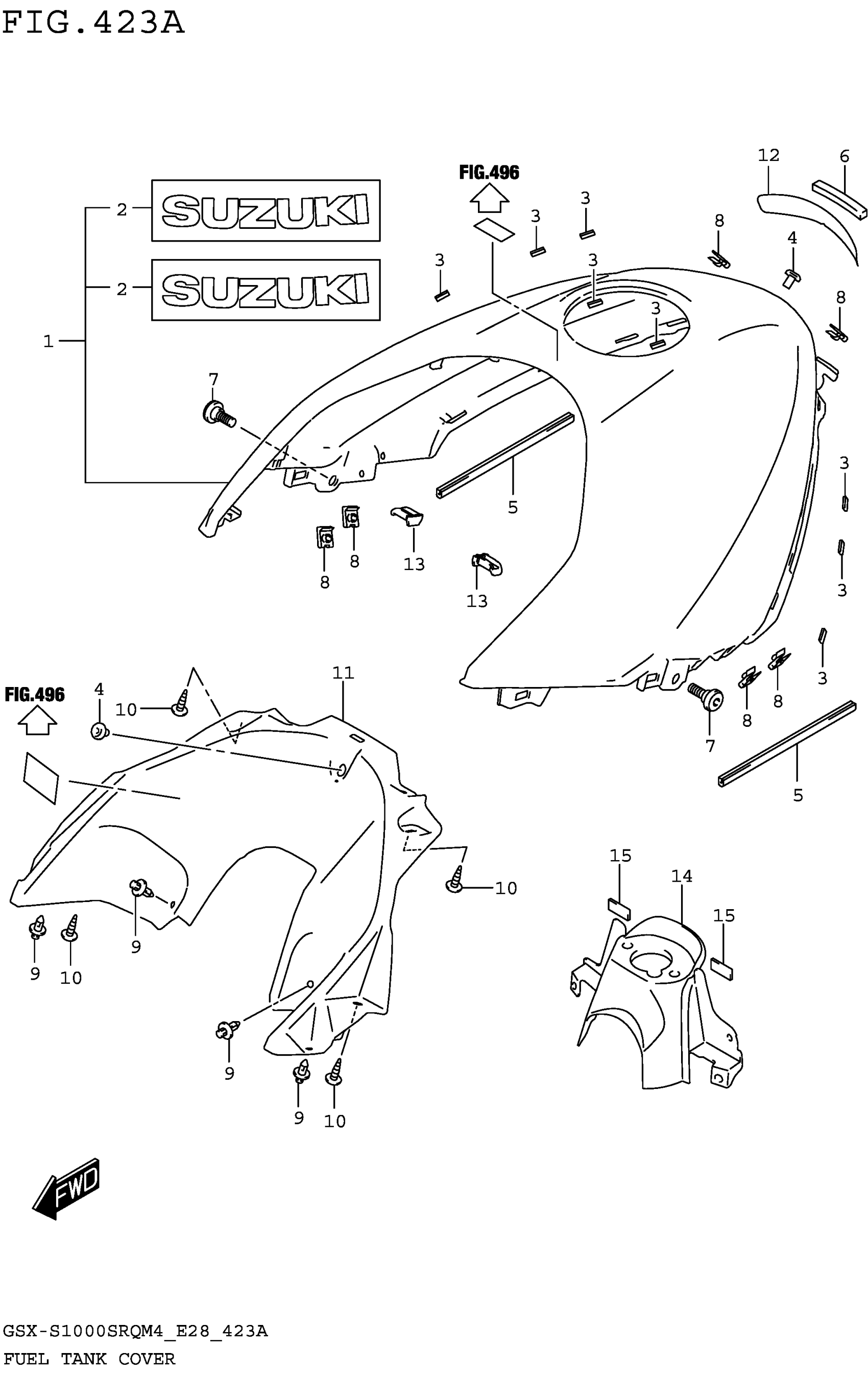

Suzuki GSX-S1000SRQM4 (2024) FUEL TANK COVER Diagram

#

Description
Price

1-1

COVER, FUEL TANK UPR (SILVER) | (SILVER)

44290-07L00-BCX

Unavailable

1-2

COVER,FUEL TANK UPPER (GRAY)

44290-07L00-YUD

$370.55

1-3

COVER,FUEL TANK UPPER (BLUE)

44290-07L10-YUA

Unavailable

2-1

.EMBLEM,SUZUKI (RED) | FOR YUD

68111-07L00-YYG

Unavailable

2-2

.EMBLEM, SUZUKI (BLACK) | FOR BCX,YUA

68111-07L00-019

$16.42

3

CUSHION, FUEL TANK COVER

44292-07L00

$1.49

4

SCREW, FUEL TANK COVER

44513-07L00

$4.55

5

MOLDING,FUEL TANK (L:110)

44552-24B00

$14.08

6

CUSHION, SEAT TAIL COVER CTR

45518-16G00

$6.47

7

SCREW (5X13)

09139-05091

$2.03

8

NUT (M5)

09148-05052

$3.37

9

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

10

SCREW

03541-0512A

$1.49

11

COVER, FUEL TANK FR (BLACK)

44281-07L00-YKV

$245.93

12

PROTECTOR, FUEL TANK COVER

44285-07L00

$16.65

13

CLIP

09409-08012

$2.82

14

COVER, FUEL TANK LOWER

44271-04K01

$22.87

15

CUSHION (10X30X2)

44894-24A00

$1.72
