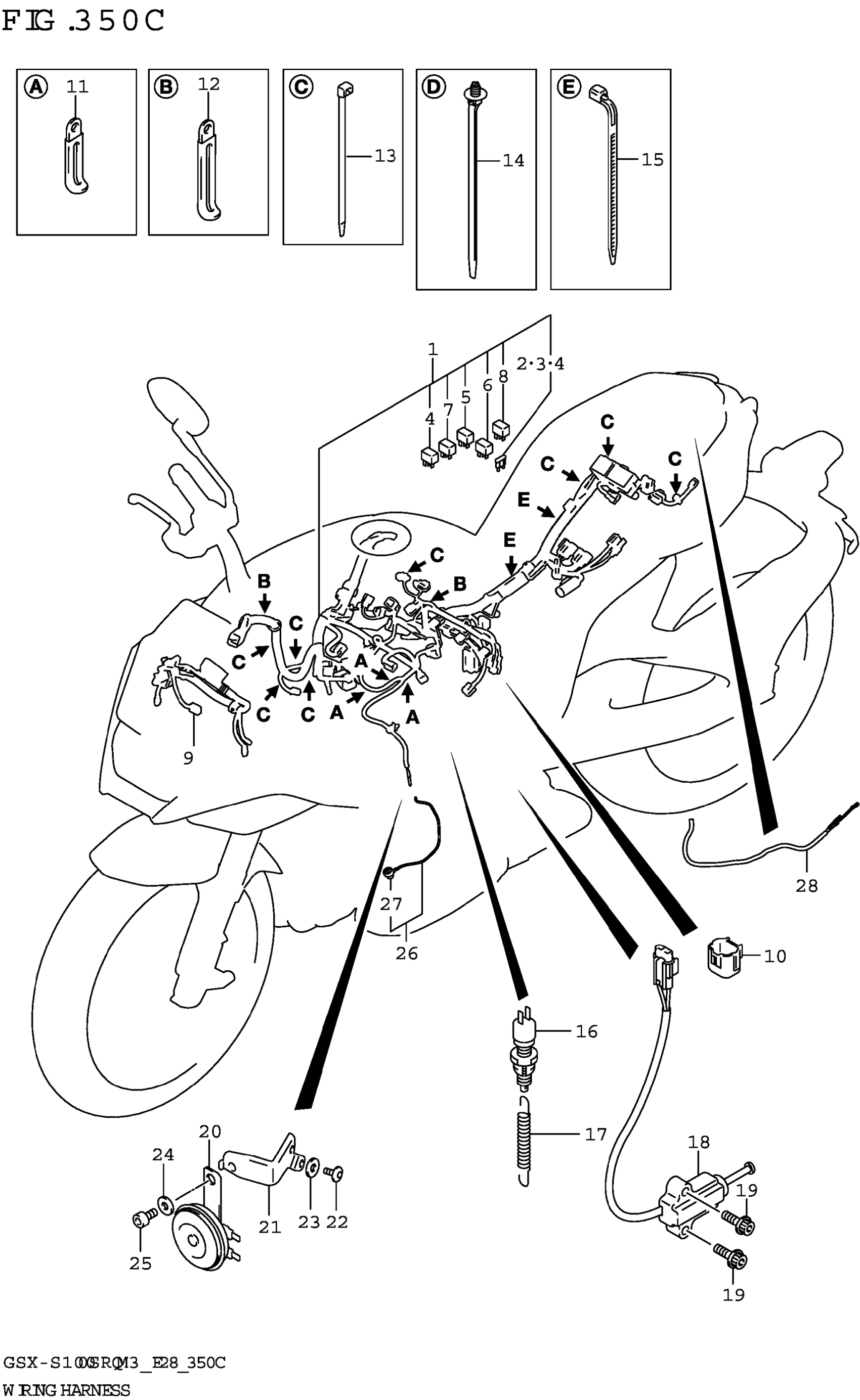

Suzuki GSX-S1000SRQM3 (2023) WIRING HARNESS (E33) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-07LC0

Unavailable

2

.FUSE (10A)

09481-10504

$2.06

3

.FUSE (15A)

09481-15504

$2.07

4

.FUSE (25A)

09481-25504

$2.75

5

.RELAY ASSY | FOR FUEL PUMP

38860-76F01

$34.37

6

.RELAY ASSY | FOR FAN MOTOR

38860-76F01

$34.37

7

.RELAY ASSY | FOR SIDE STAND

38860-76F01

$34.37

8

.RELAY ASSY | FOR HIGH BEAM

38860-76F01

$34.37

9

HARNESS, WIRING NO.2

36620-07LB0

Unavailable

10

CAP,OBD CONNECTOR

36654-28K00

$8.72

11

CLAMP, OIL PRESS LEAD

36651-07L00

$13.92

12

CLAMP (L:80)

09404-06030

Unavailable

13

CLAMP (L:145)

09407-14407

$3.57

14

CLAMP (L:170)

09407-17403

$4.91

15

CLAMP (L:165)

09407-18402

$2.19

16

SWITCH ASSY, STOP LAMP

37740-07L00

Unavailable

17

SPRING

09443-06054

$3.85

18

SWITCH ASSY, SIDE STAND

37840-48K00

$100.02

19

BOLT (6X20)

01550-0620A

$1.97

20

HORN ASSY

38500-48K00

$39.55

21

PLATE, HORN

38590-04K10

$13.38

22

SCREW (6X16)

09139-06214

$2.60

23

WASHER (6.5X18X1.6)

09160-06109

$1.49

24

WASHER (8.5X22X2.0)

09160-08127

$2.12

25

BOLT

07130-0812A

$3.72

26

WIRE, OIL PRESSURE SWITCH LEA

36851-48K00

$15.95

27

.CAP,OIL PRESSURE SWITCH

36618-31J00

Unavailable

28

WIRE, REAR COMB LEAD

36856-07L00

$68.58
