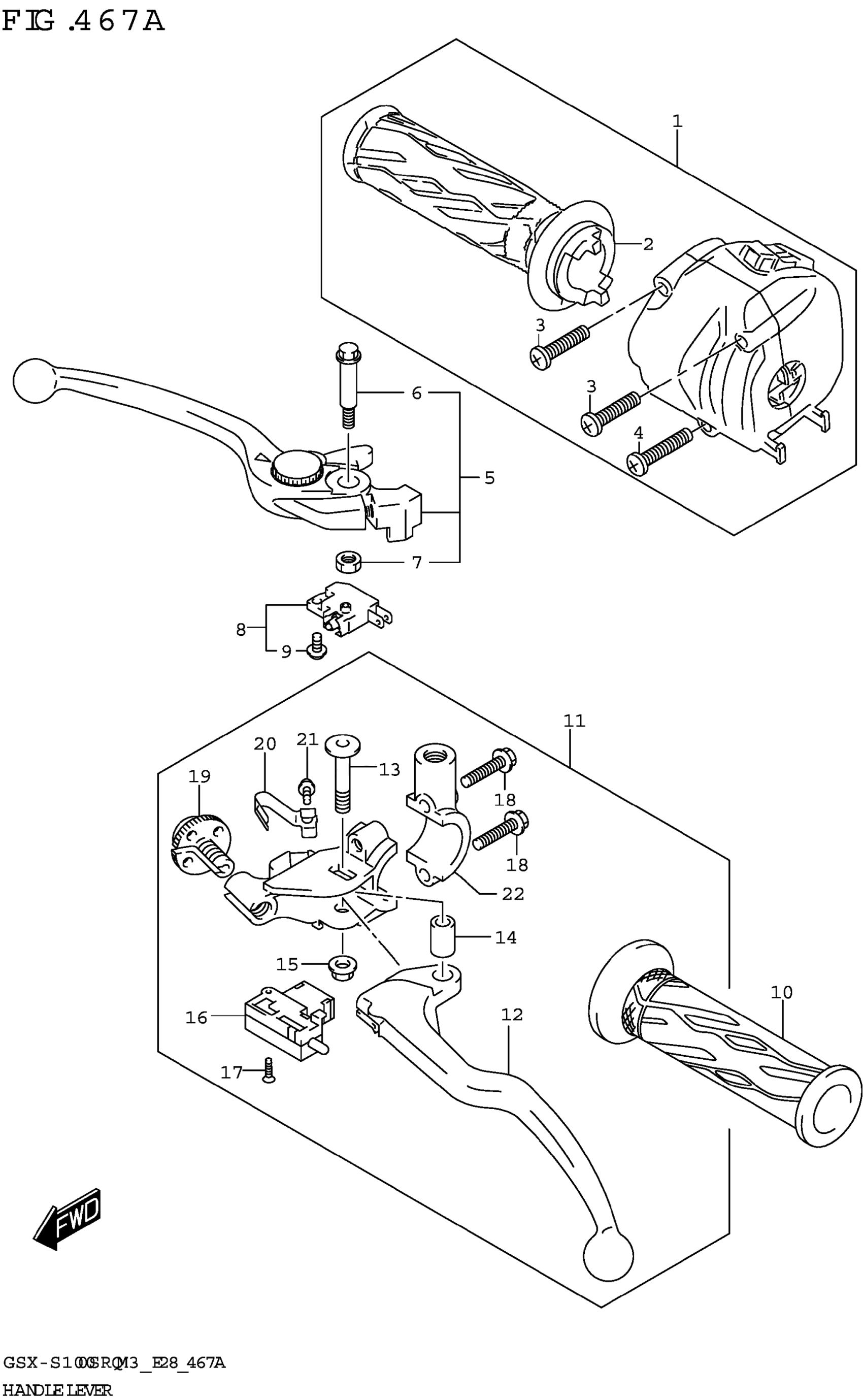

Suzuki GSX-S1000SRQM3 (2023) HANDLE LEVER Diagram

#

Description
Price

1

GRIP ASSY,THROTTLE

57100-06L40

Unavailable

2

.GRIP,THROTTLE This part replaces 57110-06L00.

57110-06L10

$25.42

3

.SCREW

02112-0530B

$1.49

4

.SCREW

02112-0540B

$2.70

5

LEVER ASSY,BRAKE

57300-44G20

$40.76

6

.BOLT,LEVER PIVOT

57431-17H02

$7.13

7

.NUT

08319-2106A

$1.91

8

SWITCH ASSY,FR BRAKE

57460-14J02

$38.46

9

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.19

10

GRIP,L

57211-21H01

$11.13

11

LEVER SET,CLUTCH

57059-41G60

$161.27

12

.LEVER,CLUTCH

57621-41G10

$35.19

13

.BOLT,LEVER PIVOT

57431-41G60

$10.43

14

.COLLAR

57532-41G00

$19.74

15

NUT

08319-3106B

$2.45

16

.SWITCH ASSY,CLUTCH

57560-05A10

$30.85

17

.SCREW,CLUTCH SWITCH

57562-41G01

$9.58

18

BOLT

01547-0625B

$2.45

19

.NUT,ADJUSTER

57641-33E21

$35.94

20

.SPRING,ADJUST

57644-33E10

Unavailable

21

.SCREW,ADJUST

57642-33E10

Unavailable

22

.HOLDER,CLUTCH LEVER

57512-41G00

$37.53
