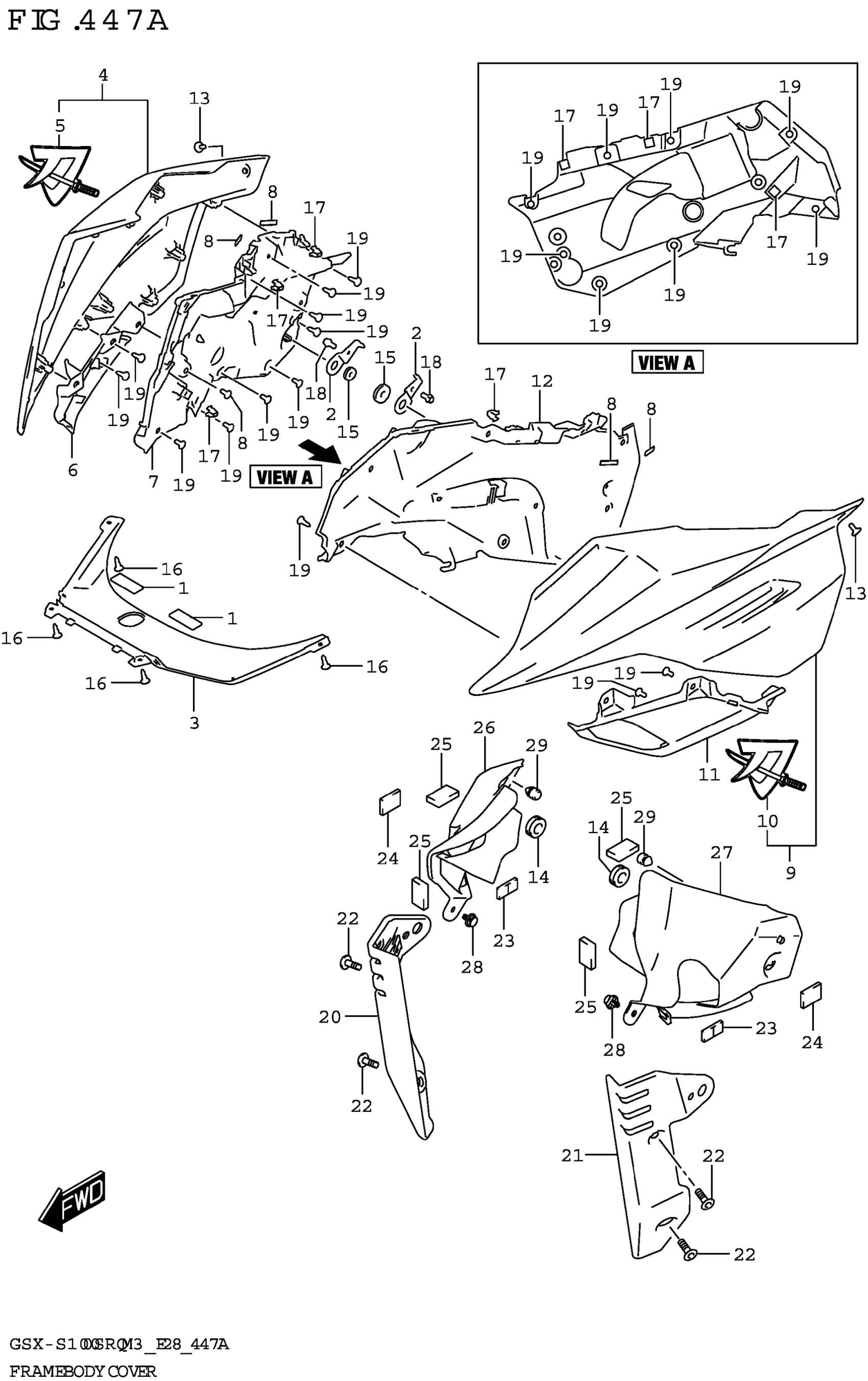

Suzuki GSX-S1000SRQM3 (2023) FRAME BODY COVER Diagram

#

Description
Price

1

.COVER (30X45X2)

36930-60A10

$2.92

2

BRACKET, FRAME BODY COVER

47539-04K00

$10.93

3

COVER, BODY COWL

94419-07L00

$32.05

4-1

COVER, SIDE RH (SILVER) | BODY COLOR:BCX

94670-07L00-YMD

$224.68

4-2

COVER,SIDE,R (BLUE) | BODY COLOR:YUA

94670-07L00-YUA

Unavailable

4-3

COVER,SIDE,R (GRAY) | BODY COLOR:YUD

94670-07L00-YUD

$170.42

5-1

.TAPE, SIDE COWLING | ,SILVER) BODY COLOR:BCX

68685-07L00-BWS

$17.87

5-2

.TAPE,SIDE COWLING (CHROME,RE | ,BLUE) BODY COLOR:YUA

68685-07L00-CCC

Unavailable

5-3

.TAPE,SIDE COWLING (CHROME,RE | ,GRAY) BODY COLOR:YUD

68685-07L00-CCD

Unavailable

6

COVER, SIDE LOWER RH

94672-07L00

$26.73

7

COVER, SIDE INNER RH

94673-07L00

$29.77

8

CUSHION (6X25X1)

94675-07L00

$2.20

9-1

COVER, SIDE LH (SILVER) | BODY COLOR:BCX

94680-07L00-YMD

$224.68

9-2

COVER,SIDE,L (BLUE) | BODY COLOR:YUA

94680-07L00-YUA

$155.15

9-3

COVER,SIDE,L (GRAY) | BODY COLOR:YUD

94680-07L00-YUD

$170.42

10-1

.TAPE, SIDE COWLING | ,SILVER) BODY COLOR:BCX

68685-07L00-BWS

$17.87

10-2

.TAPE,SIDE COWLING (CHROME,RE | ,BLUE) BODY COLOR:YUA

68685-07L00-CCC

Unavailable

10-3

.TAPE,SIDE COWLING (CHROME,RE | ,GRAY) BODY COLOR:YUD

68685-07L00-CCD

Unavailable

11

COVER, SIDE LOWER LH

94682-07L00

$26.73

12

COVER, SIDE INNER LH

94683-07L00

$29.77

13

SCREW (5X13)

09139-05091

$2.03

14

CUSHION (6X18X6)

09320-06504

$4.96

15

CUSHION (8x26x7)

09320-08018

$3.04

16

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

17

CLIP (10.5X14.3)

09409-08326

$2.48

18

BOLT

01547-0612B

$1.49

19

SCREW

03541-0512B

$1.78

20

COVER, FRAME BODY RH

47531-07L00

$58.03

21

COVER, FRAME BODY LH

47541-07L00

$58.03

22

BOLT, FRAME BODY COVER

47532-07L02

$3.22

23

CUSHION (10X30X2)

44894-24A00

$1.72

24

CUSHION This part replaces 47512-10D00.

61544-94500

$1.68

25

CUSHION This part replaces 47512-10D00.

61544-94500

$1.68

26

COVER, FRAME BODY UPR RH

47551-07L00

Unavailable

27

COVER, FRAME BODY UPR LH

47561-07L00

$53.85

28

CLIP

94479-35F00

$5.62

29

CUSHION

09321-06036

$1.52
