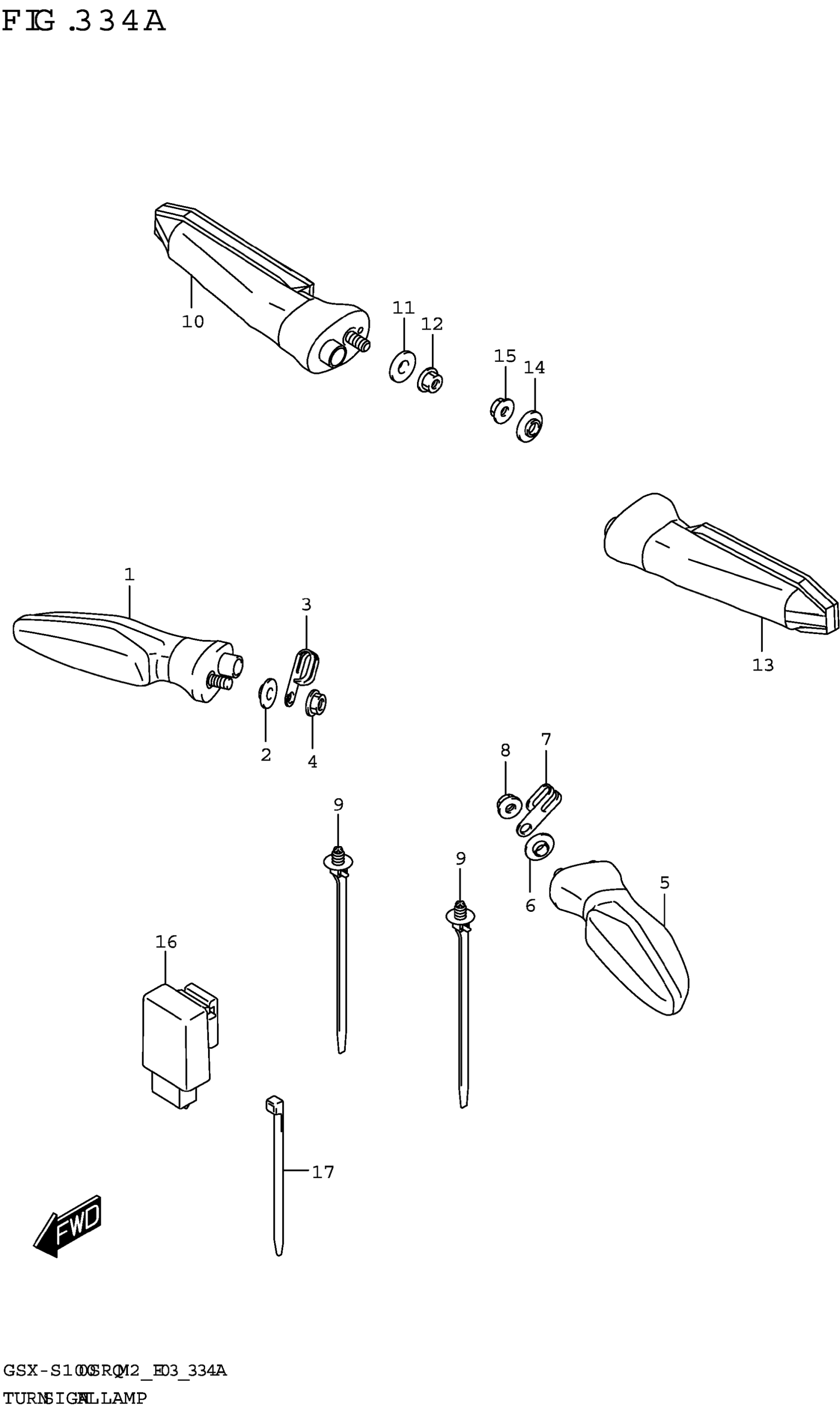

Suzuki GSX-S1000SRQM2 (2022) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL R This part replaces 35601-06LA1.

35601-06LF0

$132.23

2

WASHER

09169-06076

$2.88

3

CLAMP (L:45)

09404-06429

$1.82

4

NUT (6X12)

08316-1006A

$2.19

5

LAMP ASSY,FRONT TURNSIGNAL LH

35602-06LA1

$89.77

6

WASHER

09169-06076

$2.88

7

CLAMP (L:45)

09404-06429

$1.82

8

NUT (6X12)

08316-1006A

$2.19

9

CLAMP (L:170)

09407-17403

$4.63

10

LAMP ASSY,REAR TURNSIGNAL RH

35603-06LA1

$99.50

11

WASHER

09169-06076

$2.88

12

NUT (6X12)

08316-1006A

$2.19

13

LAMP ASSY, REAR TURNSIGNAL LH This part replaces 35604-06LA1.

35604-06LH0

$145.15

14

WASHER

09169-06076

$2.88

15

NUT (6X12)

08316-1006A

$2.19

16

RELAY ASSY,TURNSIGNAL

38610-06LA0

$124.07

17

CLAMP (L:145)

09407-14407

$2.80
