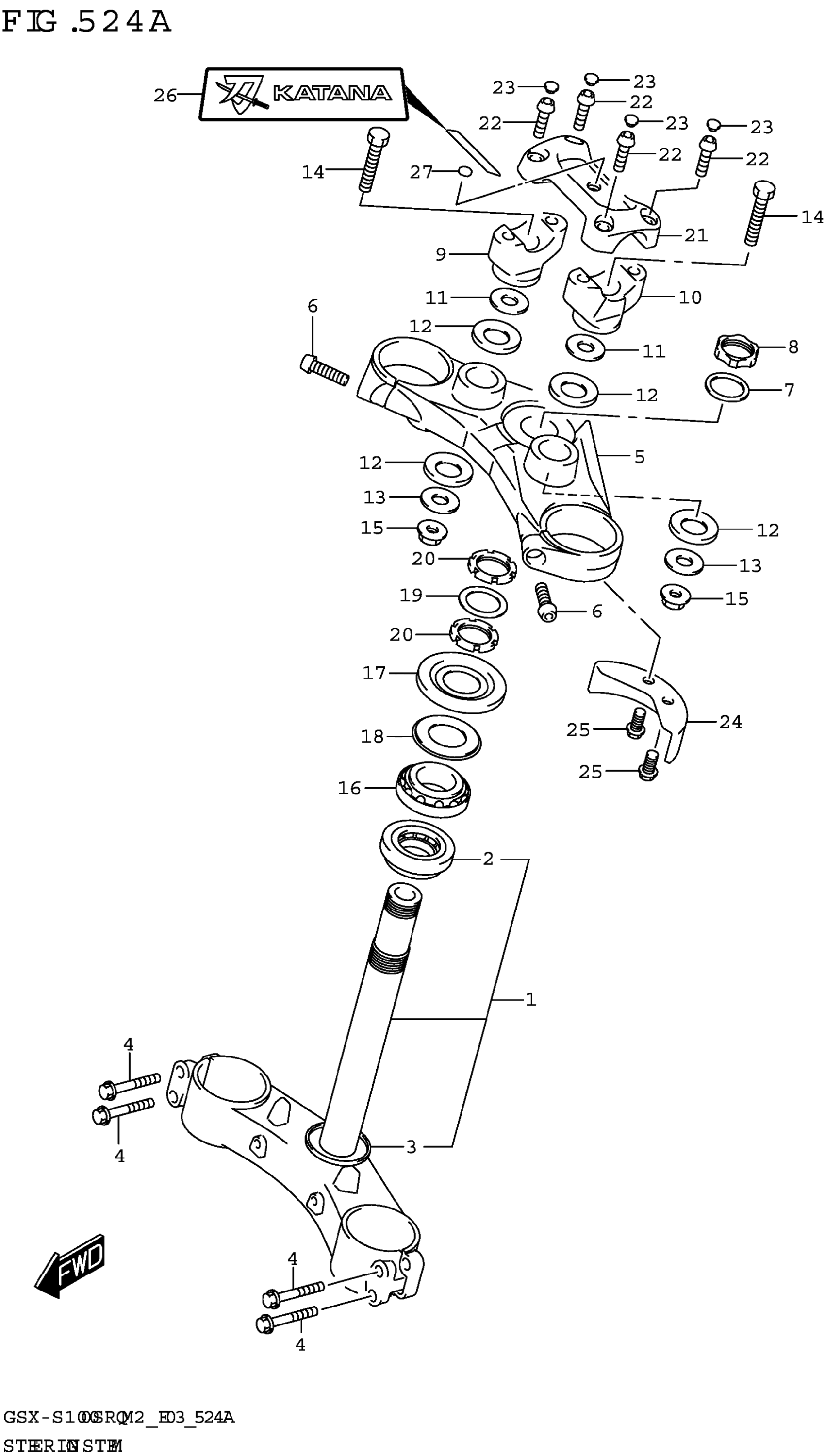

Suzuki GSX-S1000SRQM2 (2022) STEERING STEM Diagram

#

Description
Price

1

BRACKET, UNDER (BLACK)

51410-07L00-YTA

$515.60

2

.BEARING (30X55X17)

09267-30010

$48.11

3

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.44

4

BOLT,AXLE STOPPER

51166-10G10

$5.38

5

BRACKET, UPPER (BLACK)

51310-48K00-YTA

Unavailable

6

BOLT, BRACKET UPR

51328-46H00

$3.66

7

WASHER

51356-40F30

$5.78

8

NUT

51353-40F30

$45.37

9

HOLDER, HANDLE LOWER RH

51335-48K00-YTA

Unavailable

10

HOLDER, HANDLE LOWER LH

51336-48K00-YTA

Unavailable

11

WASHER

51354-17H00

$3.70

12

RUBBER,HANDLE HOLDER

56245-31J00

$2.85

13

WASHER This part replaces 51356-40400.

09160-10035

$1.78

14

BOLT

51321-17H10

$6.22

15

NUT

08319-3110A

$2.73

16

.BEARING (30X55X17)

09267-30010

$48.11

17

COVER,STEERING UPR

51643-41G00

$8.71

18

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.44

19

WASHER,STEERING STEM

51641-33E00

$6.20

20

NUT,STEERING STEM

51631-33E00

$23.64

21

HOLDER, HANDLE UPPER (BLACK)

51331-07L00-YTA

$120.97

22

BOLT, BRACKET UPR

51328-46H00

$3.66

23

CAP (OD:10.5)

09250-06015

$2.76

24

PLATE, STEERING LOCK

51911-04K10

$11.90

25

BOLT (8X16)

09103-08351

$3.23

26

EMBLEM, UPPER BRACKET

68281-07L00

$38.63

27

PLATE, EMBLEM UNDER

68282-07L00

$2.43
