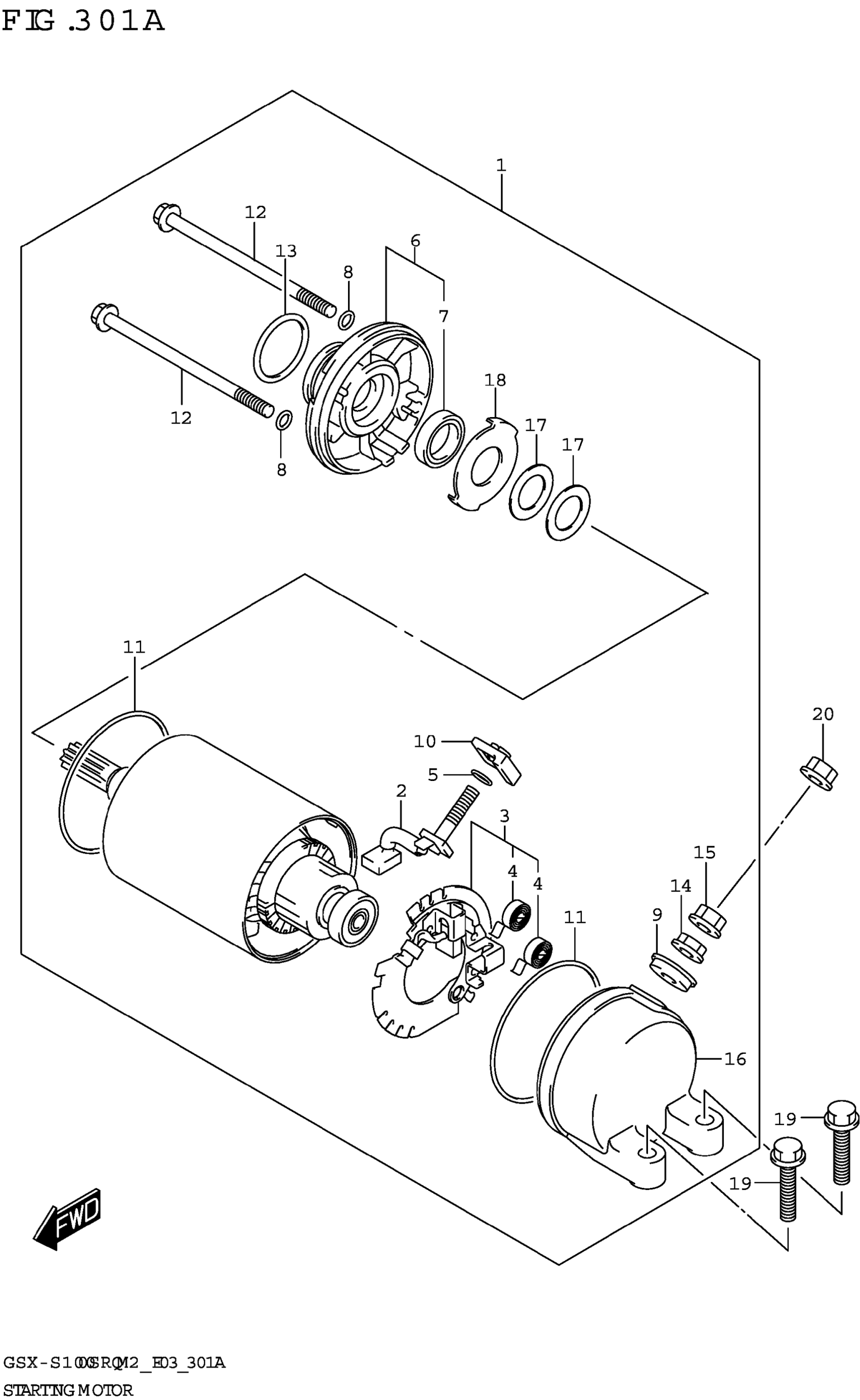

Suzuki GSX-S1000SRQM2 (2022) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING

31100-04K00

$714.10

2

.BRUSH (+)

31130-38300

$18.43

3

.HOLDER, BRUSH

31132-27A01

$73.55

4

..SPRING

31135-65010

$4.52

5

.O-RING

31143-38300

$5.10

6

.HOUSING ASSY, STARTER

31150-04K00

Unavailable

7

..SEAL,OIL

31153-49210

$24.20

8

.O RING

31156-38300

$4.52

9

.BUSHING

31172-38300

$6.55

10

.BUSH, B

31171-38300

$8.93

11

.O-RING

31264-44110

$11.87

12

.BOLT

31281-88C00

Unavailable

13

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

14

.NUT

08310-00067

$2.13

15

NUT

08361-3506A

$1.80

16

.FRAME, STARTER END

31170-04K00

$109.52

17

.SHIM

31361-38300

Unavailable

18

.SHIM SET This part replaces 31361-43400.

31170-43400

Unavailable

19

BOLT

01547-0625A

$2.01

20

NUT

08361-3506A

$1.80
