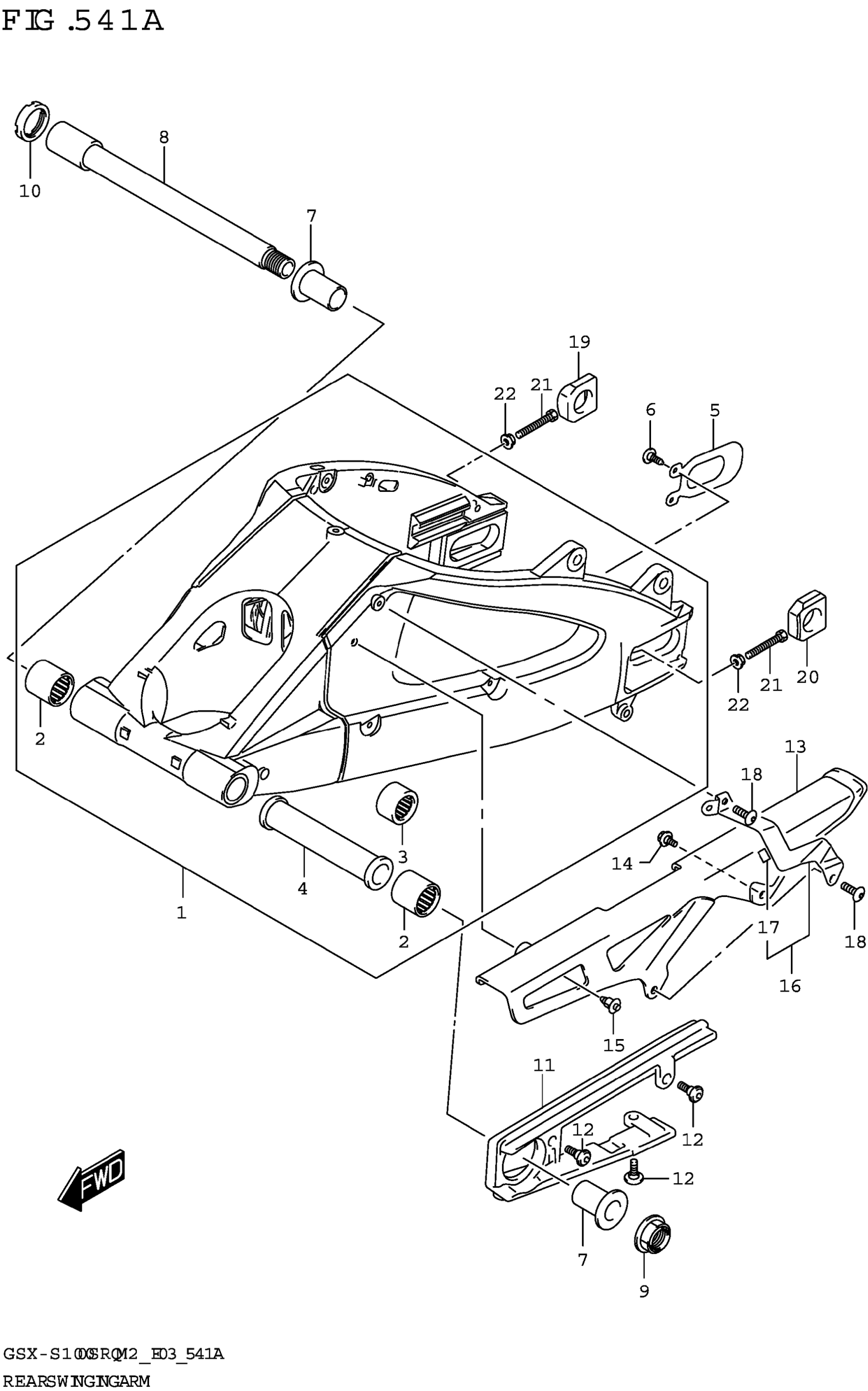

Suzuki GSX-S1000SRQM2 (2022) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY, REAR (BLACK

61000-07L11-YAP

Unavailable

2

.BEARING (27X35X35)

09263-27015

$27.55

3

.BEARING

09263-20116

$31.15

4

.SPACER,RR SWG PVT CTR

61281-41G00

$55.68

5

PLATE, RR SWGARM BRKT

61124-07L00

Unavailable

6

SCREW (6X12)

09125-06060

$1.78

7

SPACER,RR SWGARM PIVOT BEARIN

61251-41G00

$38.37

8

SHAFT,RR SWINGINGARM PIVOT

61211-01H00

$171.00

9

NUT

09159-20006

$27.12

10

NUT,RR SWGARM PIVOT BOLT

61214-42E10

$42.53

11

BUFFER, CHAIN TOUCH DEFENSE

61273-47H01

$23.75

12

SCREW (6X17.8)

09139-06226

$3.55

13

CASE,CHAIN

61311-21H00

$63.58

14

BOLT (6X12)

09139-06225

$2.92

15

CLIP (7.6X25.7)

09409-08308

$2.26

16

REINF, CHAIN CASE

61380-07L00

Unavailable

17

CUSHION

45516-01H00

$5.32

18

SCREW (6X16)

09139-06214

$2.60

19

ADJUSTER,CHAIN | RH

61445-40F00

$47.20

20

ADJUSTER,CHAIN | LH

61446-40F00

$47.20

21

BOLT (8X60)

09100-08305

$3.49

22

NUT

08316-1008A

$2.45
