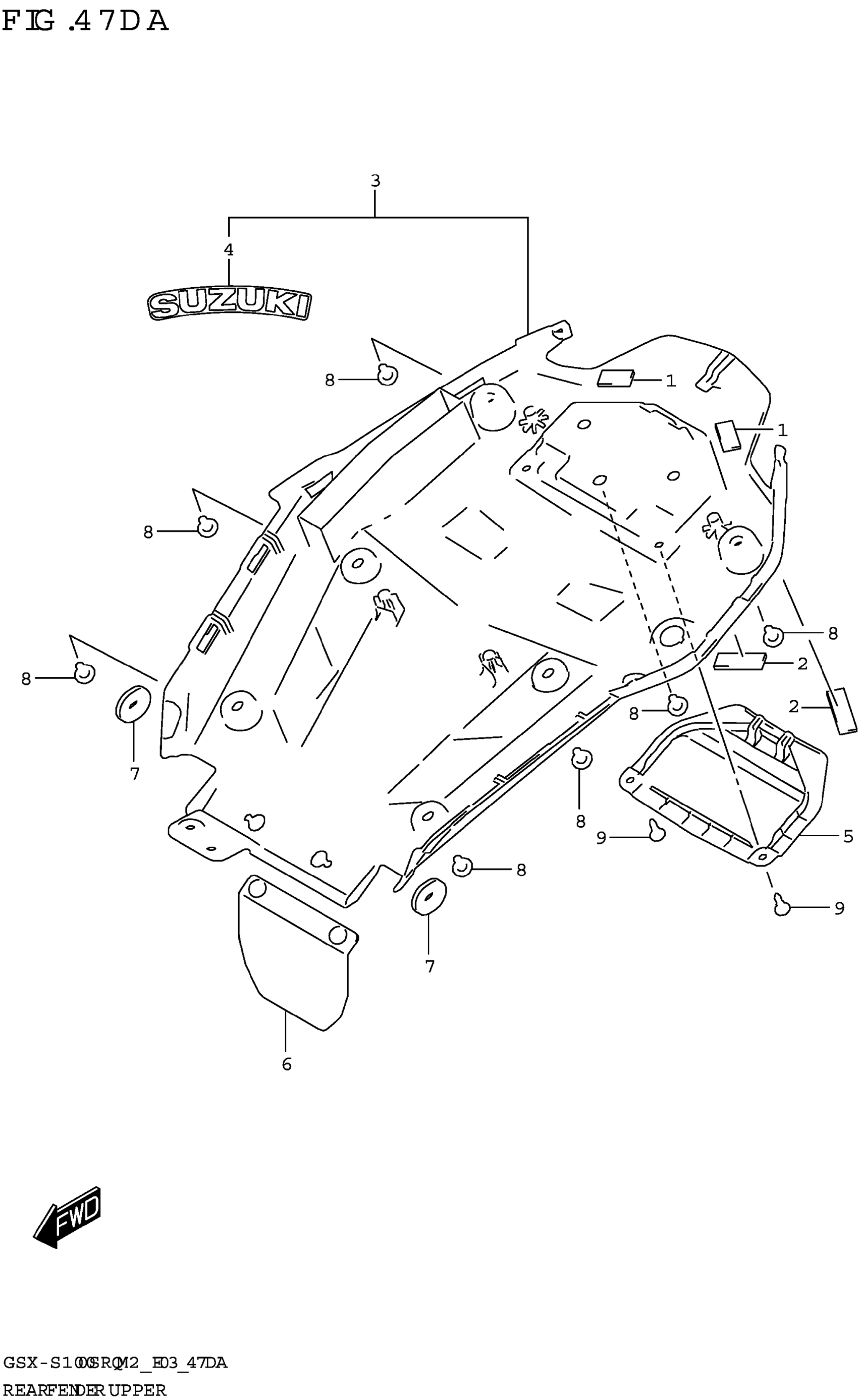

Suzuki GSX-S1000SRQM2 (2022) REAR FENDER UPPER Diagram

#

Description

Price

1

CUSHION, BATTERY (30X130X3) This part replaces 33972-31D00.

33652-19B00

$5.67

2

CUSHION (10X24X1)

48128-14FA0

$7.30

3

FENDER, REAR FRONT | R)

63110-07L00-DM7

$129.13

4

.EMBLEM, SUZUKI (BLACK/SILVER

68181-07L00-DM7

$10.87

5

COVER, REAR FENDER FRONT

63112-07L00

$31.52

6

MUDGUARD, REAR FENDER

63411-07L00

Unavailable

7

CUSHION

94478-14J00

$5.42

8

BOLT (6X12)

09111-06107

$2.66

9

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80
