Description

Price

1-1

WHEEL, FRONT (17M/CXMT3.50) | ER) BODY COLOR:BCX

54111-04K30-YMY

$758.32

1-2

WHEEL, FRONT (17M/CXMT3.50) | ) BODY COLOR:YUA

54111-04K30-YPU

$633.10

1-3

WHEEL,FRONT (17M/CXMT3.50,RED | BODY COLOR:YUD

54111-04K30-QGY

$758.32

2

SPACER,FR HUB BEARING

54731-14J00

$21.58

3

BEARING

09262-22049

$43.81

4

SEAL,OIL

09283-28028

$9.13

5

AXLE,FR

54711-14J00

$143.18

6

NUT,RR SHOCK ABS BRACKET

62994-47H00

$42.02

7

SPACER,FR AXLE,L

54751-14J00

$18.33

8

DISC, FRONT BRAKE

59210-04K00

$330.48

9

BOLT (6X21)

09106-06124

$3.42

10

RING, SPEED SENSOR FR (50T)

54162-44H10

Unavailable

11

BOLT

07130-0512A

$2.19

12

TIRE,FRONT

55110-07L10

Unavailable

13

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

14-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

14-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

14-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47

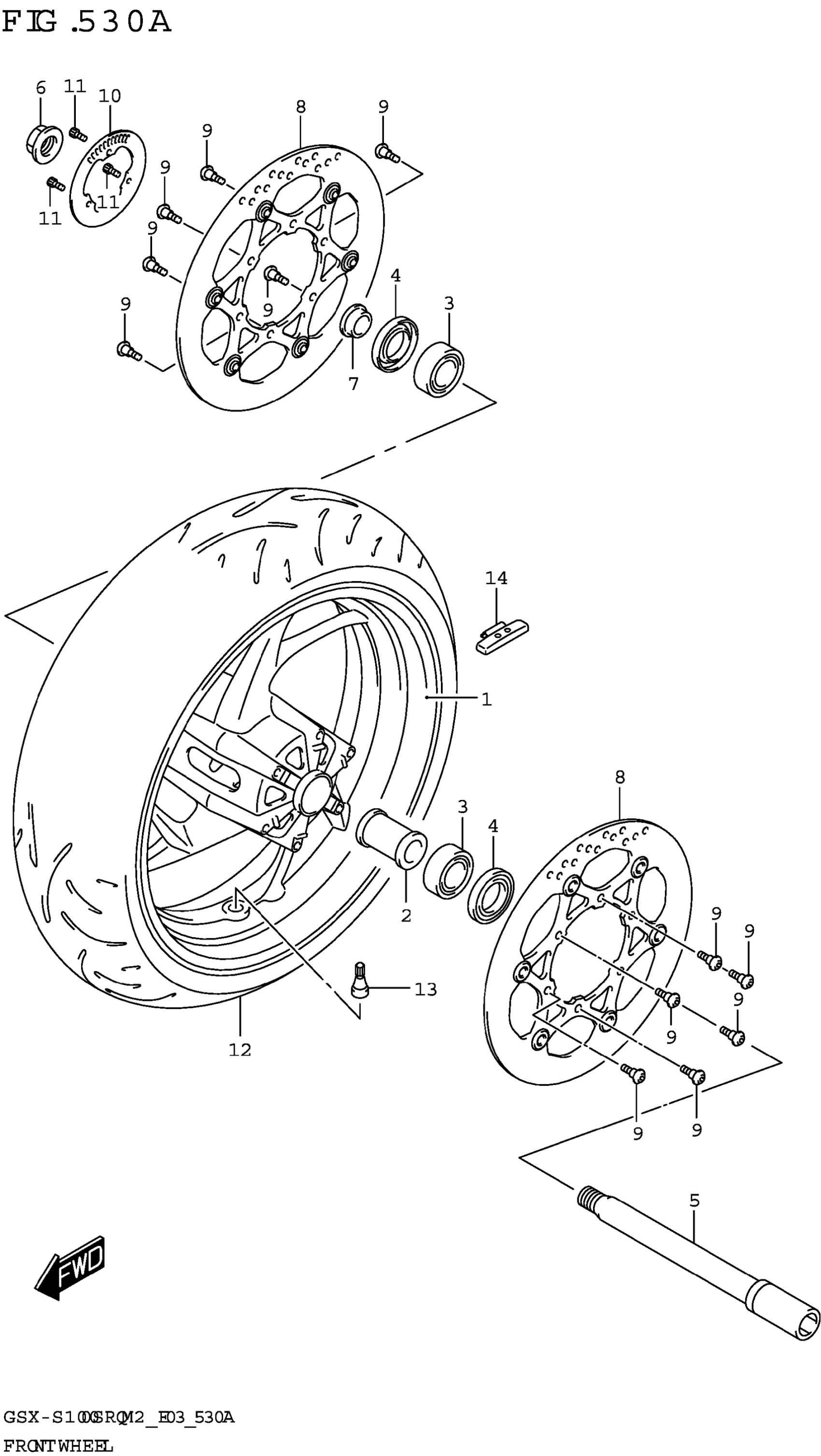

Suzuki GSX-S1000SRQM2 (2022) FRONT WHEEL Diagram
