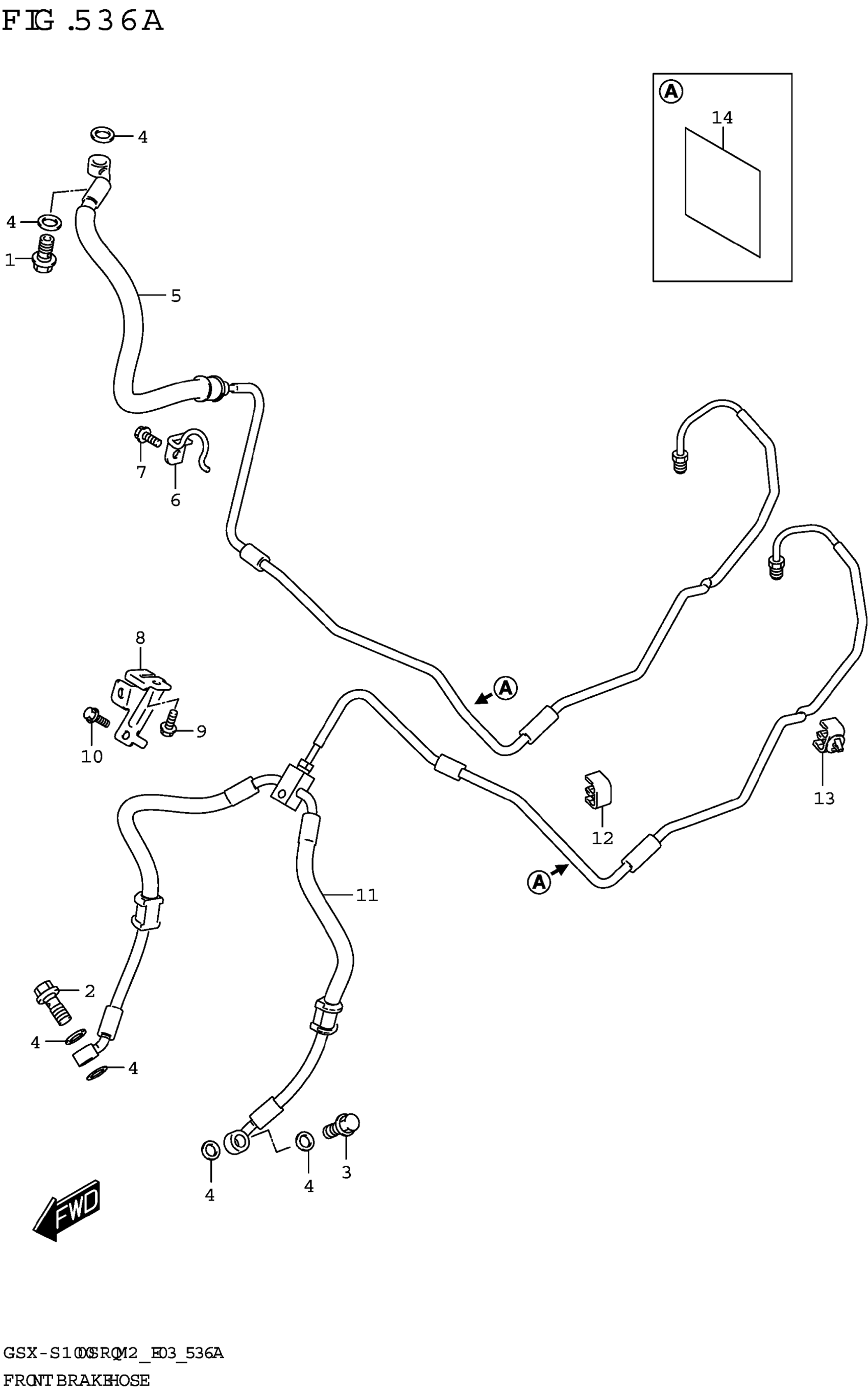

Suzuki GSX-S1000SRQM2 (2022) FRONT BRAKE HOSE Diagram

#

Description

Price

1

UNION This part replaces 09360-10042.

09360-10062

$6.43

2

UNION This part replaces 09360-10042.

09360-10062

$6.43

3

UNION This part replaces 09360-10042.

09360-10062

$6.43

4

WASHER (10X15X1.5)

09161-10009

$1.84

5

HOSE ASSY, FR BK MASTER TO This part replaces 59200-48K10.

59200-48K11

$90.67

6

CLAMP, FR BRAKE HOSE UPPER

59260-04K10

Unavailable

7

BOLT

01547-0612B

$1.49

8

CLAMP, FR BK HOSE LOWER

59270-48K00

$19.57

9

BOLT

01550-0616B

$2.48

10

BOLT

01547-0616B

$2.45

11

HOSE ASSY,UNIT TO FR BK CLPR

59400-04K70

Unavailable

12

CLAMP

09403-07344

$2.50

13

CLAMP

09403-06324

Unavailable

14

PROTECTOR, FRONT BRAKE HOSE

59411-48K00

$3.25
