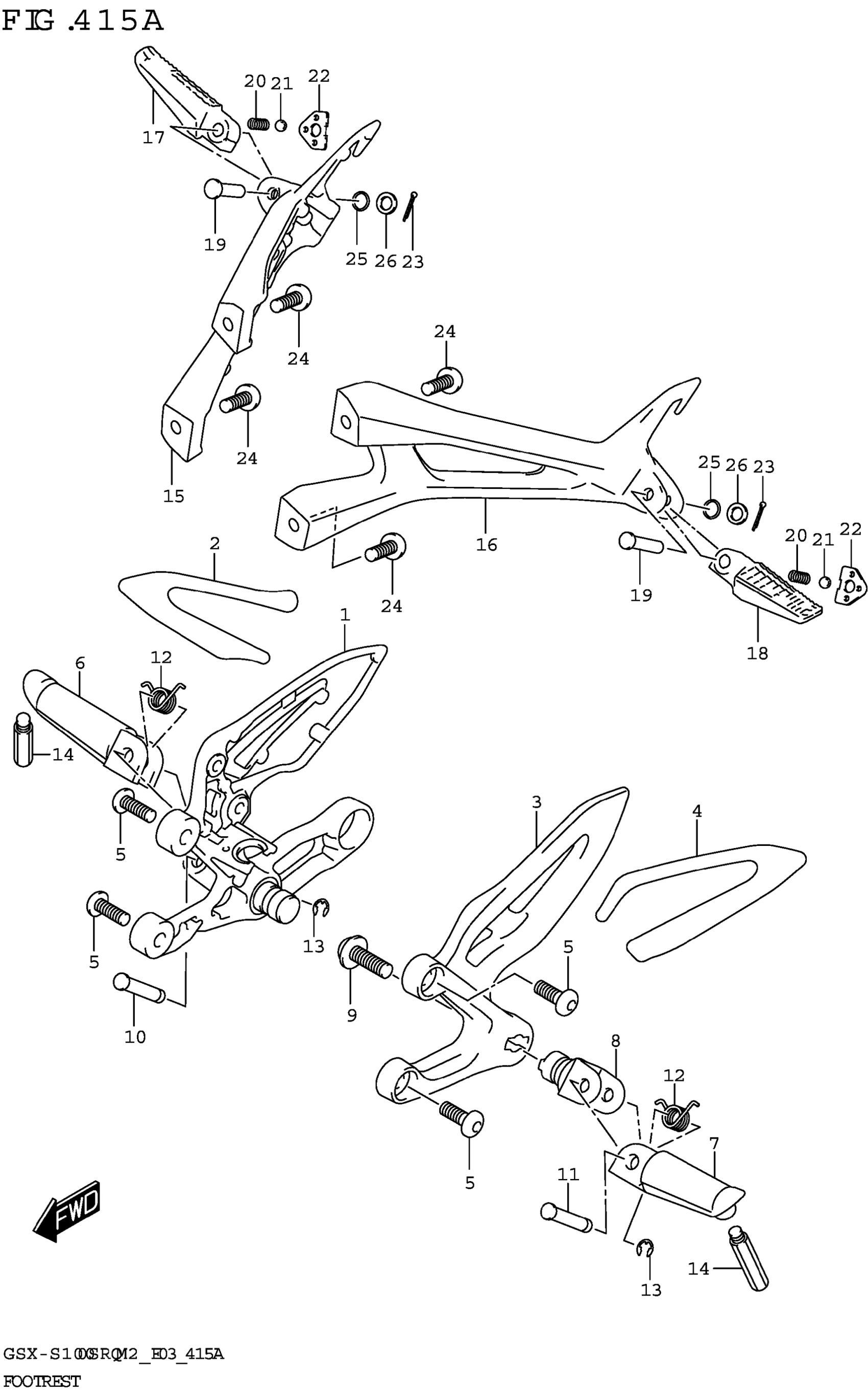

Suzuki GSX-S1000SRQM2 (2022) FOOTREST Diagram

#

Description
Price

1

BRACKET, FR FOOTREST RH

43510-48K10

$110.40

2

TAPE, FR FOOTREST RH

43571-04K10

$27.42

3

BRACKET,FR FOOTREST,L

43521-04K10

$113.82

4

TAPE, FR FOOTREST LH

43572-04K10

$27.97

5

BOLT

09106-08209

$2.78

6

BAR,FRONT FOOTREST,R

43516-35F20

$47.54

7

BAR,FRONT FOOTREST,L

43526-35F20

$47.54

8

HOLDER,FOOTREST,L

43540-04K10

$41.57

9

BOLT (10X28)

09106-10064

$4.90

10

PIN

09208-08019

$2.79

11

PIN

09208-08018

$2.79

12

SPRING, FRONT FOOTREST

43581-48K00

$3.89

13

E-RING

08332-1106A

$1.49

14

.BOLT,BANK SENSOR

43576-48B50

$14.20

15

BRACKET, PILLION FOOTREST RH

43811-07L10

Unavailable

16

BRACKET, PILLION FOOTREST LH

43821-07L10

Unavailable

17

BAR, PILLION FOOTREST RH

43611-37H60

$56.12

18

BAR, PILLION FOOTREST LH

43621-37H60

$56.12

19

PIN

09200-08002

$2.05

20

SPRING

09440-05003

$1.49

21

BALL

06111-07004

$1.49

22

PLATE,PILLION FOOTREST

43816-01H20

$6.58

23

PIN

04111-2015A

$1.49

24

BOLT

09106-08209

$2.78

25

O RING (D:2.4,ID:6.9)

18592-68K00

$4.82

26

WASHER (8.5X14X1.6)

09160-08090

$2.39
