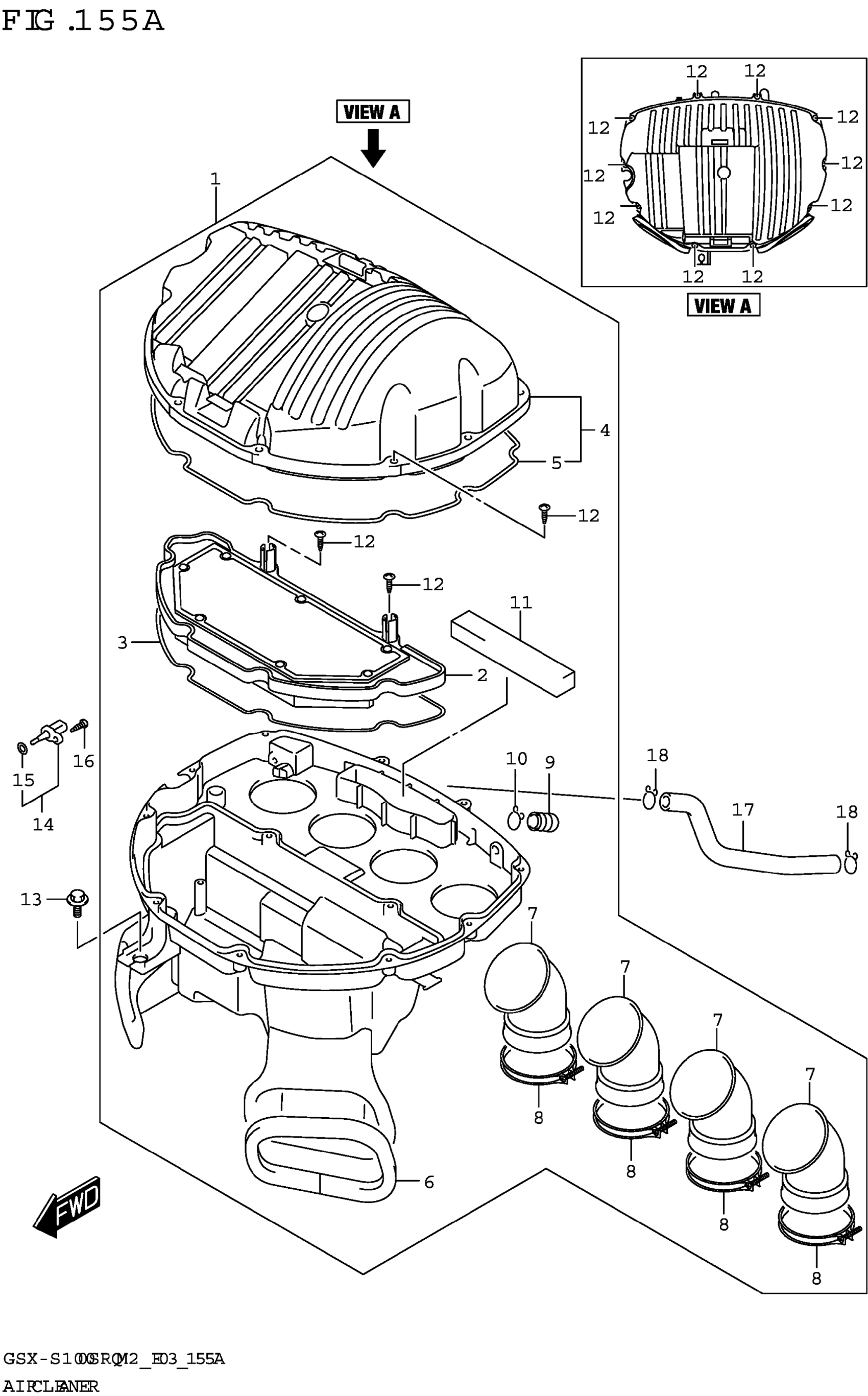

Suzuki GSX-S1000SRQM2 (2022) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-48K00

$273.87

2

.FILTER ASSY

13780-48K00

$62.76

3

.GASKET FILTER

13756-48K00

$14.88

4

.CAP, AIR CLEANER

13740-48K00

$57.07

5

..GASKET, CAP

13746-48K00

$17.45

6

.CUSHION, DUCT

13736-48K00

$8.33

7

.TUBE, OUTLET

13881-48K00

$18.48

8

CLAMP,INTAKE PIPE

13827-40H01

$15.37

9

.PLUG

13878-10G01

$4.93

10

.CLIP

09401-14301

$2.35

11

.FILTER BREATHER

13788-48K00

$4.57

12

SCREW

03541-0520A

$1.80

13

BOLT (6X16)

09111-06089

$2.62

14

SENSOR,AIR TEMP

13650-41F10

$63.25

15

O-RING

13655-41F10

Unavailable

16

SCREW

03511-0516A

$1.86

17

HOSE, BREATHER

13853-04K01

$13.63

18

.CLIP (ID:14.5)

09401-14101

$2.34
