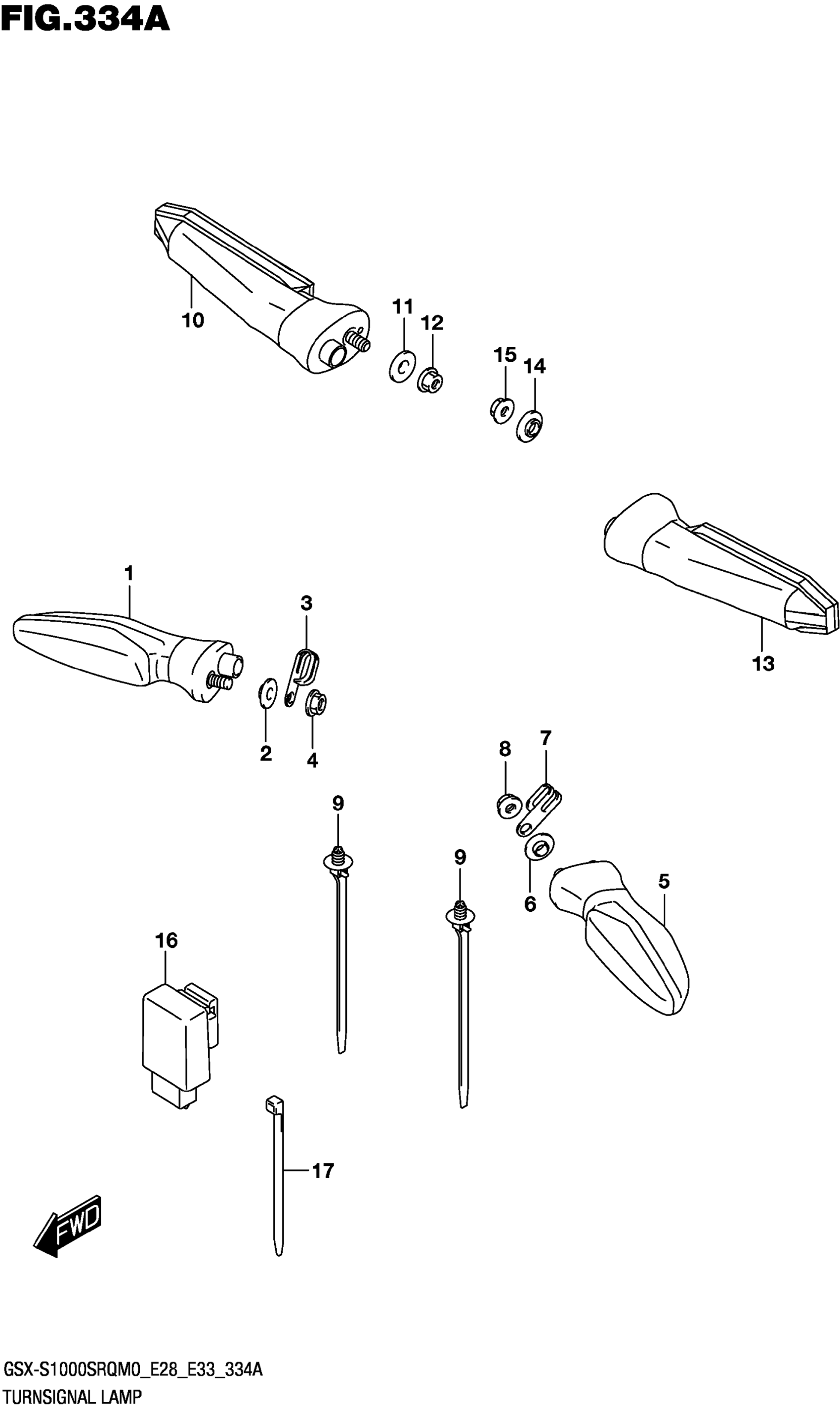

Suzuki GSX-S1000SRQM0 (2020) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL R This part replaces 35601-06LA0.

35601-06LF0

$132.23

2

WASHER

09169-06076

$2.97

3

CLAMP (L:45)

09404-06429

$1.88

4

NUT (6X12)

08316-1006A

$2.25

5

LAMP ASSY,FRONT TURNSIGNAL LH This part replaces 35602-06LA0.

35602-06LA1

$89.77

6

WASHER

09169-06076

$2.97

7

CLAMP (L:45)

09404-06429

$1.88

8

NUT (6X12)

08316-1006A

$2.25

9

CLAMP (L:170)

09407-17403

$4.79

10

LAMP ASSY,REAR TURNSIGNAL RH This part replaces 35603-06LA0.

35603-06LA1

$99.50

11

WASHER

09169-06076

$2.97

12

NUT (6X12)

08316-1006A

$2.25

13

LAMP ASSY, REAR TURNSIGNAL LH This part replaces 35604-06LA0.

35604-06LH0

$145.15

14

WASHER

09169-06076

$2.97

15

NUT (6X12)

08316-1006A

$2.25

16

RELAY ASSY,TURNSIGNAL

38610-06LA0

$124.07

17

CLAMP (L:145)

09407-14407

$2.84
