Partiron

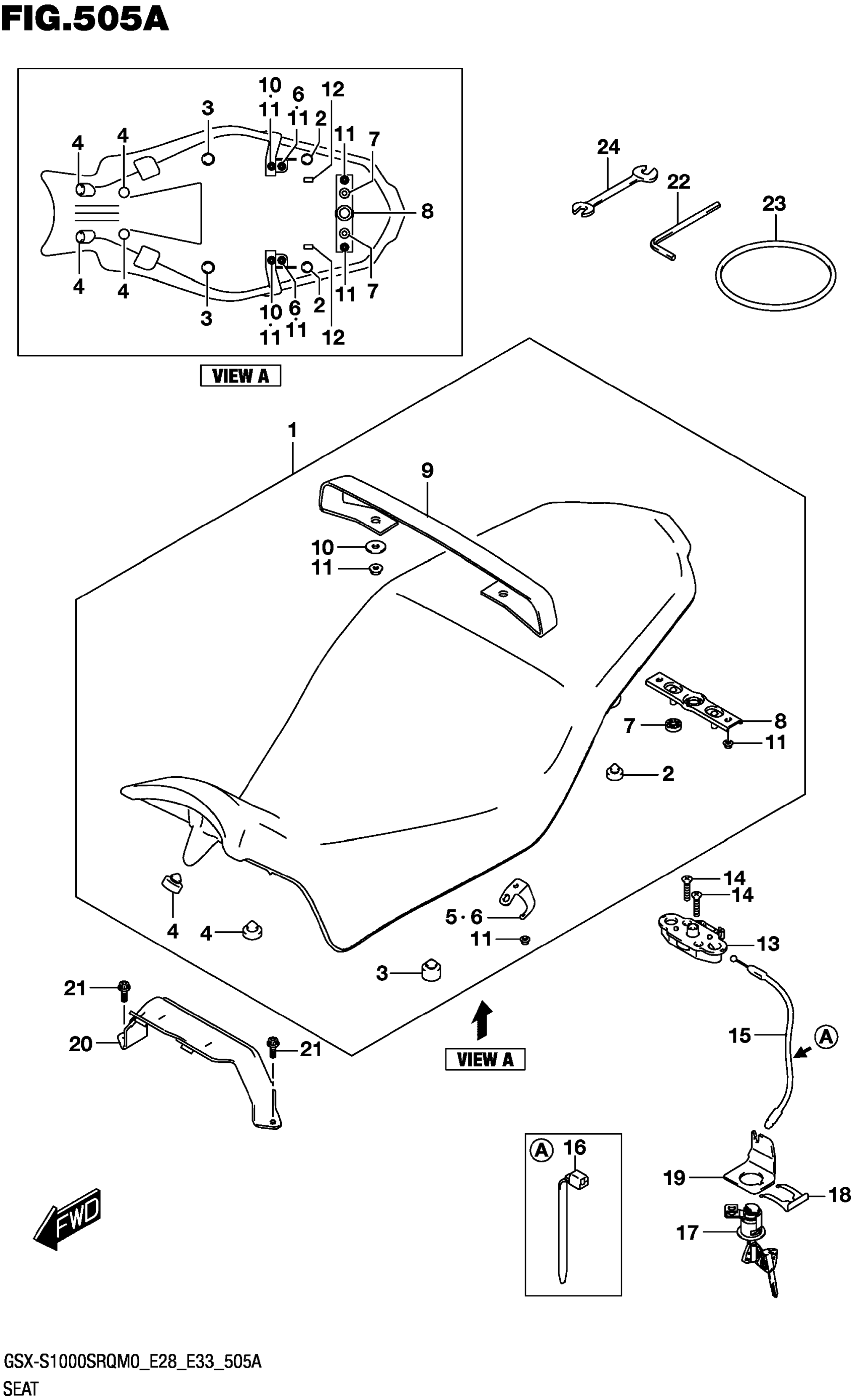

Suzuki GSX-S1000SRQM0 (2020) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK,SILVER,GRAY)

45100-07L01-BWU

$695.27

2

.CUSHION

09321-10011

$2.91

3

.CUSHION

45148-07L00

$7.93

4

.CUSHION, SEAT MOUNT

45148-23J00

$6.98

5

.PLATE, SEAT HOOK RH

45116-07L00

$10.58

6

.PLATE, SEAT HOOK LH

45117-07L00

$10.58

7

..CUSHION,SEAT LOCK (10X22X6)

45213-13601

$2.79

8

.STRIKER, SEAT LOCK

45215-26F00

Unavailable

9

.BAND,SEAT

45380-07L00

$17.43

10

.WASHER (6.5X20X1.6)

09160-06088

$1.65

11

NUT (6X12)

08316-1006A

$2.19

12

PROTECTOR (50X50X5)

33652-20C00

$2.99

13

BRACKET,SEAT SUPPORT

45220-47H00

$138.38

14

SCREW

02122-0630A

$1.74

15

CABLE, SEAT LOCK

45280-07L00

$11.28

16

CLAMP (L:125)

09407-14403

$2.26

17

LOCK SET, SEAT This part replaces 95700-14F00.

95700-14810

$107.30

18

PLATE,SEAT LOCK ASSY

45289-11F00

$6.20

19

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.36

20

BRACKET, SEAT

45130-07L00

$30.57

21

BOLT

07120-0612A

$2.50

22

SPANNER,HEXAGON (5)

96514-17K00

$4.77

23

O-RING (D:3.5,ID:56.5)

09280-57003

Unavailable

24

SPANNER,OPEN (14X17)

09813-00031

Unavailable
