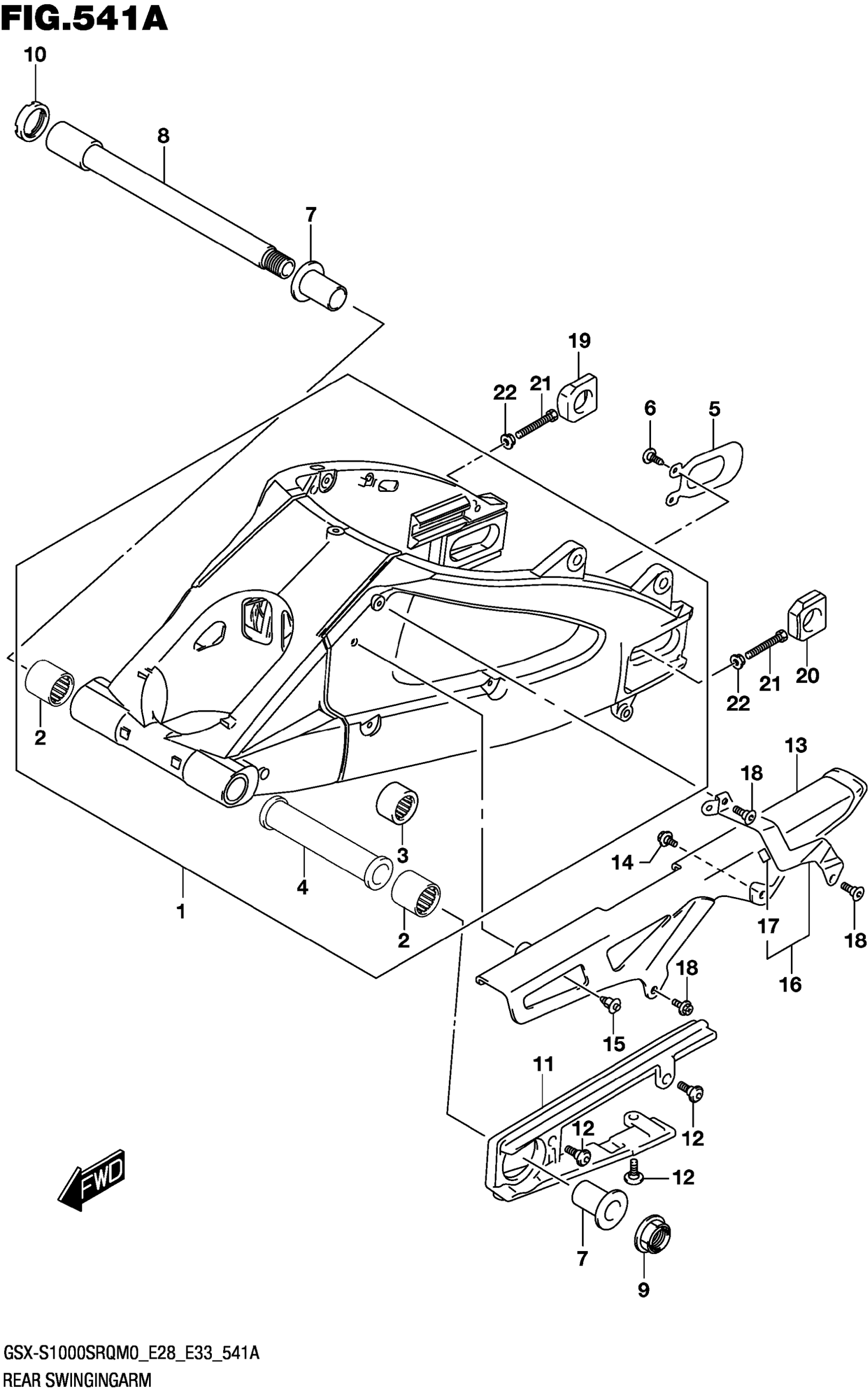

Suzuki GSX-S1000SRQM0 (2020) REAR SWINGINGARM Diagram

SWINGINGARM ASSY,REAR (BLACK)

61000-07L00-YAP

$1,637.25

.BEARING (27X35X35) This part replaces 09263-27013.

09263-27015

$27.55

.BEARING (20X27X30)

09263-20070

$37.72

.SPACER,RR SWG PVT CTR

61281-41G00

$55.68

PLATE, RR SWGARM BRKT

61124-07L00

Unavailable

SCREW (6X12)

09125-06060

$1.78

SPACER,RR SWGARM PIVOT BEARIN

61251-41G00

$38.37

SHAFT,RR SWINGINGARM PIVOT

61211-01H00

$171.00

NUT

09159-20006

$27.12

NUT,RR SWGARM PIVOT BOLT

61214-42E10

$42.53

BUFFER, CHAIN TOUCH DEFENSE This part replaces 61273-47H00.

61273-47H01

$23.75

SCREW (6X17.8)

09139-06226

$3.55

CASE,CHAIN

61311-21H00

$63.58

BOLT (6X12)

09139-06225

$2.92

CLIP (7.6X25.7)

09409-08308

$2.26

REINF, CHAIN CASE

61380-07L00

Unavailable

CUSHION

45516-01H00

$5.32

SCREW (6X16)

09139-06214

$2.60

ADJUSTER,CHAIN

61445-40F00

$47.20

ADJUSTER,CHAIN

61446-40F00

$47.20

BOLT (8X60)

09100-08305

$3.49

NUT

08316-1008A

$2.45
