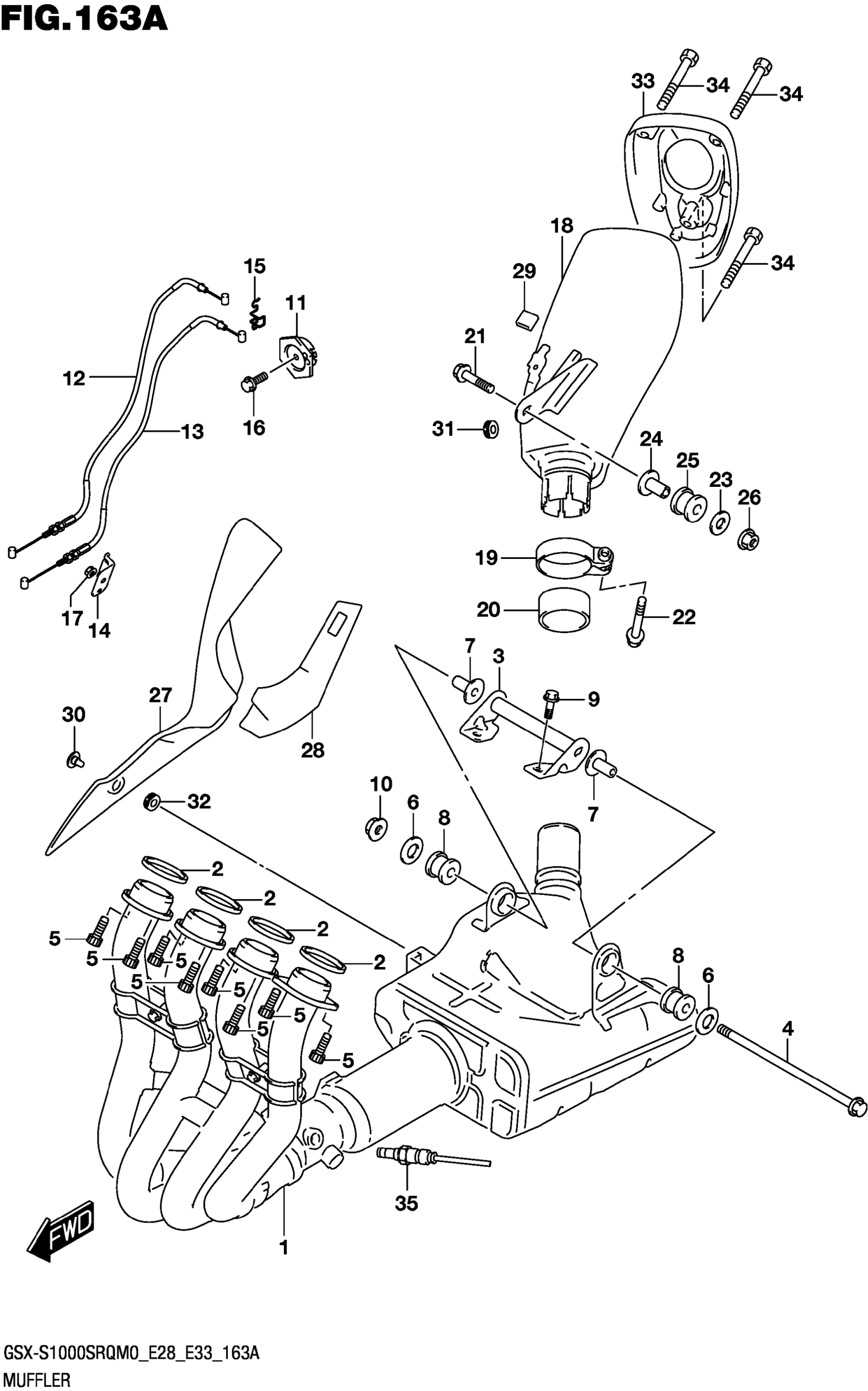

Suzuki GSX-S1000SRQM0 (2020) MUFFLER Diagram

#

Description
Price

1

EXHAUST

14100-04K10

$1,929.58

2

.GASKET,EXHAUST PIPE

14181-04K00

$8.29

3

BRACKET, EXH SPRT

14770-04K00

$26.13

4

BOLT (8X200)

09103-08464

$11.18

5

BOLT (8X25)

09106-08178

$3.24

6

WASHER (8.5X30X2.3)

09160-08503

$2.50

7

SPACER (8.6X12X24.2)

09180-08152

$5.83

8

CUSHION (12X30X24)

09320-12077

$11.78

9

BOLT (8X20)

09135-08007

$2.93

10

NUT

08316-1008A

$2.45

11

PULLEY,CONTROLLER

11269-18G01

$28.78

12

CABLE,EXH VALVE NO.1

11276-04K01

$48.33

13

CABLE,EXH VALVE NO.2

11277-04K01

$48.33

14

BRACKET,EXHAUST VALVE CABLE

14250-21H00

$9.90

15

GUIDE,EXHAUST VALVE CABLE

14252-14J00

$7.37

16

BOLT

01547-0516A

$1.55

17

NUT (6X12)

08316-1006A

$2.19

18

BODY COMP,MUFFLER (BLACK/MARO | N,SILVER)

14310-04K60-H01

$461.53

19

CLAMP,MUF CONN

14459-21H30

$29.33

20

CONNECTOR,JT

14771-42F40

$25.95

21

BOLT (8X45)

09106-08195

$6.17

22

BOLT (8X40)

09106-08162

$4.77

23

WASHER (8.5X30X2.3)

09160-08503

$2.50

24

SPACER (8.6X12X24.2)

09180-08152

$5.83

25

CUSHION (12X30X24)

09320-12048

$5.11

26

NUT

08316-1008A

$2.45

27

COVER,MUF FR

14780-04K10

$251.05

28

SHIELD,MUF COVER HEAT

14784-04K01

$9.33

29

GROMMET

14795-10FA0

$5.58

30

SCREW (6X12)

09139-06128

$5.67

31

CUSHION (4X12X8) This part replaces 09320-04009.

09320-04013

$1.85

32

CUSHION (8.4X18X6)

09320-08066

$8.24

33

COVER, MUF RR This part replaces 14791-04K21.

14791-04K22

$85.97

34

BOLT (6X15)

09106-06078

$3.37

35

SENSOR,OXYGEN

18213-04K00

$315.67
