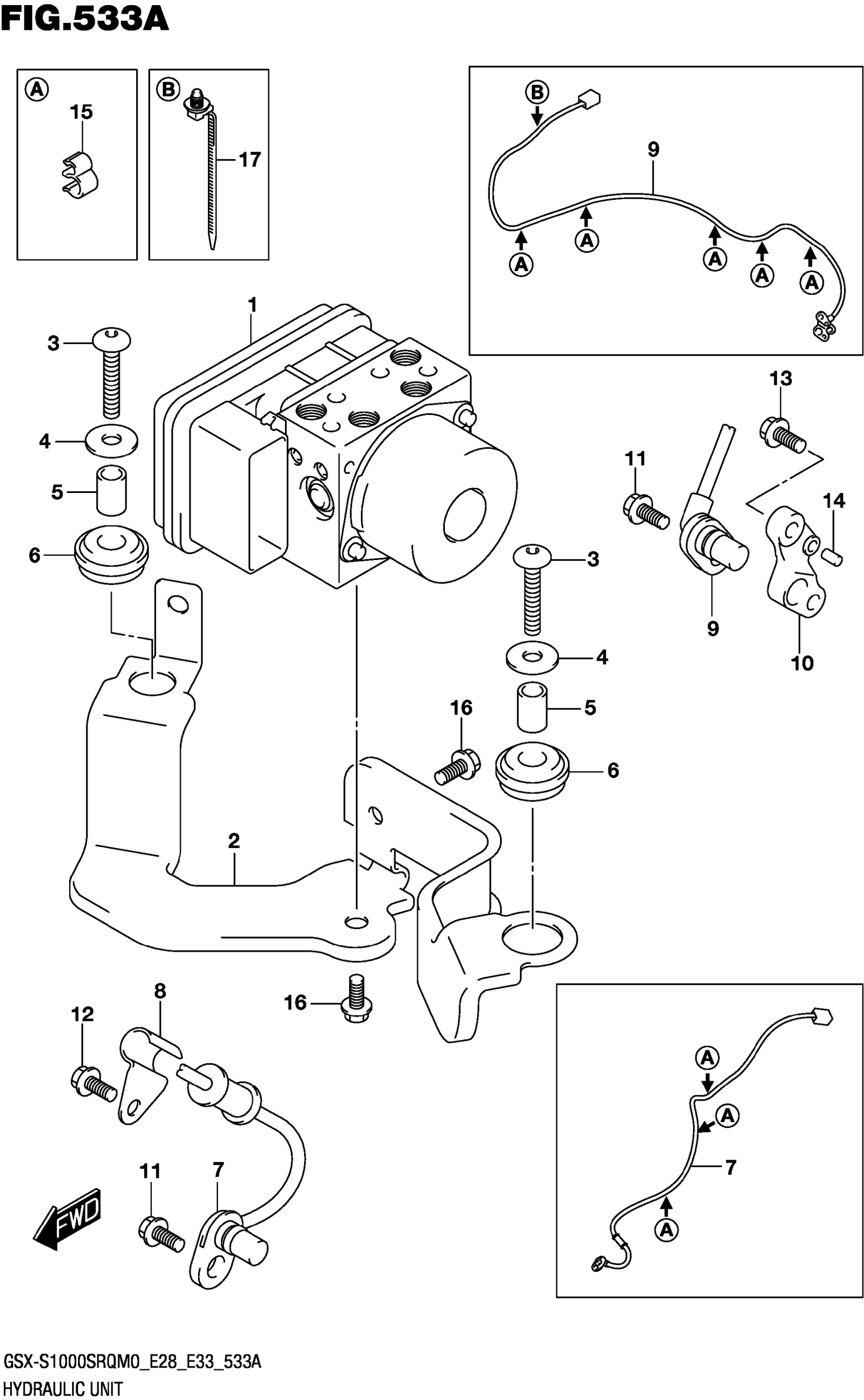

Suzuki GSX-S1000SRQM0 (2020) HYDRAULIC UNIT Diagram

#

Description
Price

1

UNIT ASSY, HYDRAULIC ABS | (E28,E33)

55610-07L00

$1,099.42

2

HOLDER, HYDR UNIT ABS | (E28,E33)

55660-04K00

Unavailable

3

SCREW (6X30) | (E28,E33)

09139-06065-XC0

$2.80

4

.WASHER (6.5X20X1.6) | (E28,E33)

09160-06088

$1.73

5

SPACER,HYDR UNIT MTG (#05) | (E28,E33)

55662-10G00

Unavailable

6

RUBBER, HYDR UNIT MTG | (E28,E33)

55663-10G10

Unavailable

7

SENSOR, FR WHEEL ABS | (E28,E33)

55710-04K10

$244.62

8

CLAMP,ABS SENSOR FR | (E28,E33)

55731-23H00

Unavailable

9

SENSOR, RR WHEEL ABS | (E28,E33)

65710-04K20

$99.57

10

BRACKET, SPEED SENSOR RR | (E28,E33)

65721-04K00

$21.95

11

BOLT (6X12) | (E28,E33)

09103-06525

$1.49

12

BOLT (6X12) | (E28,E33)

09103-06525

$1.49

13

BOLT (6X16) | (E28,E33)

09103-06240

$3.45

14

PIN (4X13.8) | (E28,E33)

04221-04089

$1.15

15

CLAMP | (E28,E33)

09408-00266

$2.69

16

BOLT | (E28,E33)

01547-0610A

$1.47

17

CLAMP (L:170) | (E28,E33)

09407-17403

$4.79
