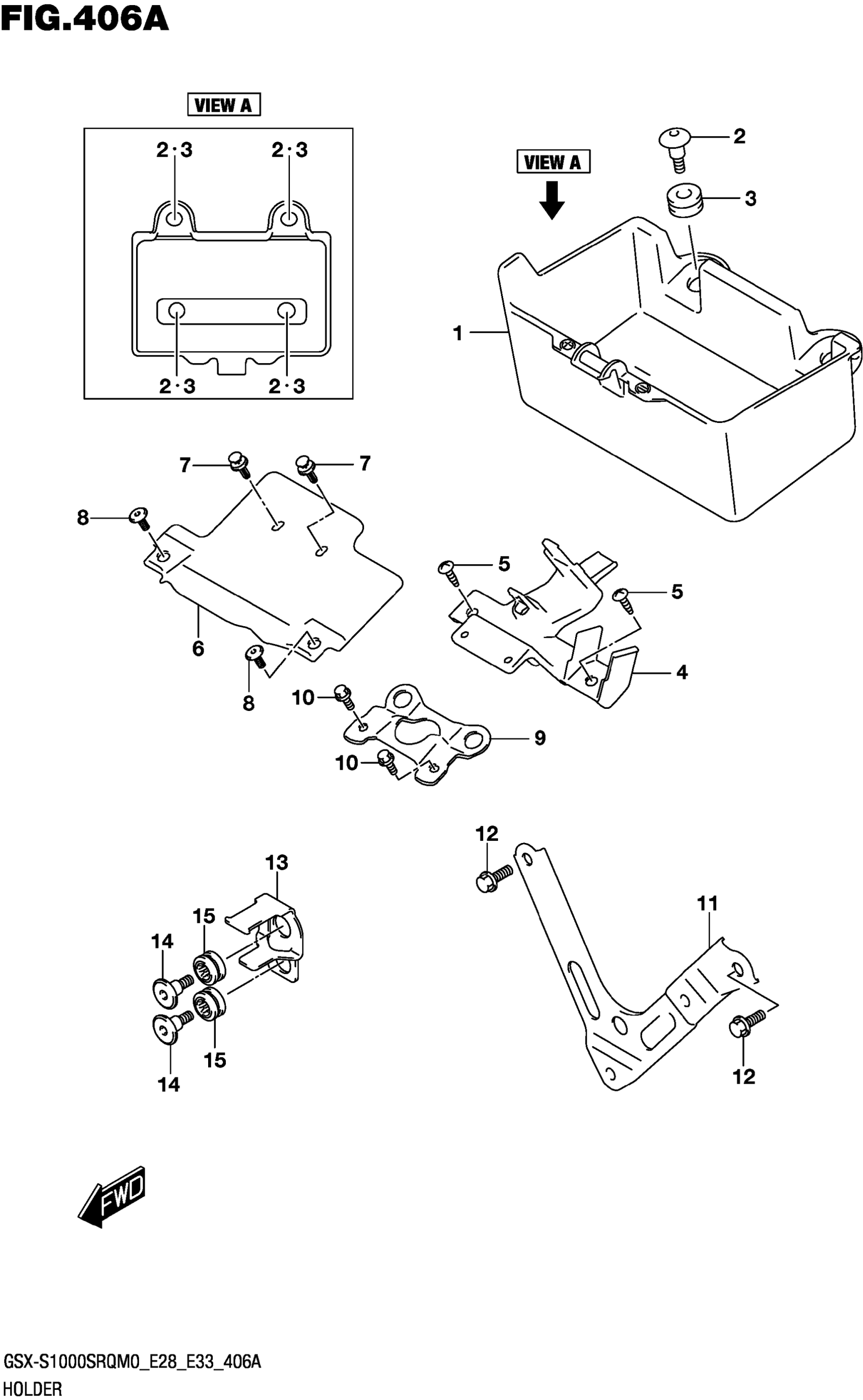

Suzuki GSX-S1000SRQM0 (2020) HOLDER Diagram

#

Description
Price

1

HOLDER, BATTERY

47431-07L00

$65.00

2

SCREW (6X20)

47118-08J00

$4.35

3

CUSHION (9X18X9.5)

09320-09016

$1.97

4

HOLDER, ELECTRIC PARTS

47414-07L00

$19.33

5

SCREW

03541-0512A

$1.49

6

COVER, RECTIFIER

47432-07L00

$20.80

7

CLIP

09409-06328

$3.23

8

SCREW (5X13)

09139-05091

$2.03

9

BRACKET, RECTIFIER

47415-07L00

$21.08

10

BOLT

01550-0612A

$1.97

11

BRACKET, ACTUATOR

47420-04K00

Unavailable

12

BOLT

01547-0616A

$2.03

13

BRACKET, FUEL CUT SENSOR

47470-07L00

$25.80

14

SCREW (6X20)

09139-06206

$3.32

15

RUBBER,INERTIAL SENSOR MTG

55763-17K00

$4.77
