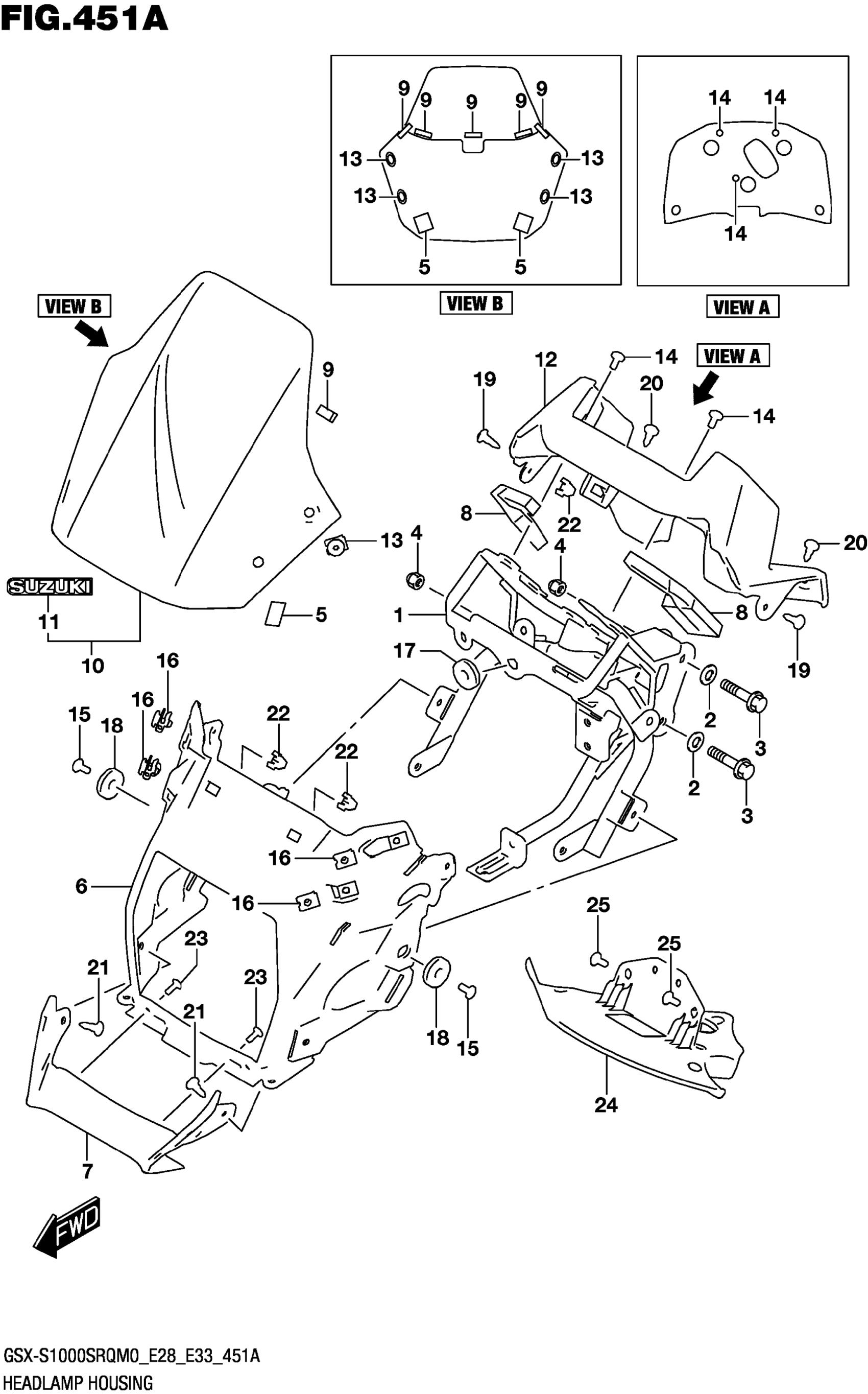

Suzuki GSX-S1000SRQM0 (2020) HEADLAMP HOUSING Diagram

#

Description
Price

1

BRACE, COWLING

94510-07L01

$241.90

2

WASHER (8.5X18X2.0)

09160-08120

$2.19

3

BOLT

01550-0840B

$4.10

4

NUT

08313-2008A

$2.50

5

.CUSHION (20X20X1)

47123-17K00

$4.34

6

COWLING, BODY

94411-07L00

$51.45

7

COWLING, BODY FRONT

94412-07L00

$25.45

8

CUSHION, COWLING NO.2

94416-07L00

$3.33

9

TAPE (6X25X0.13)

94443-06G00

$3.25

10

PANEL, METER FR (SILVER) This part replaces 94640-07L00-YD8.

94640-07L01-YD8

$119.90

11

.EMBLEM, SUZUKI (SILVER) This part replaces 68171-28H00-YD8.

68171-28H01-YD8

$7.58

12

PANEL, METER REAR

94642-07L00

$51.65

13

SCREW (5X13)

09139-05092

$2.25

14

SCREW (5X13)

09139-05092

$2.25

15

SCREW (6X20)

09139-06206

$3.32

16

NUT (M5)

09148-05052

$3.37

17

CUSHION (8x26x7)

09320-08018

$3.04

18

CUSHION (9X18X9.5)

09320-09016

$1.97

19

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

20

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

21

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

22

CLIP (10.5X14.3)

09409-08326

$2.48

23

SCREW

03541-0412B

$1.49

24

COVER, LWR BRACKET

94458-07L00

$24.85

25

BOLT (6X12)

09111-06107

$2.60
