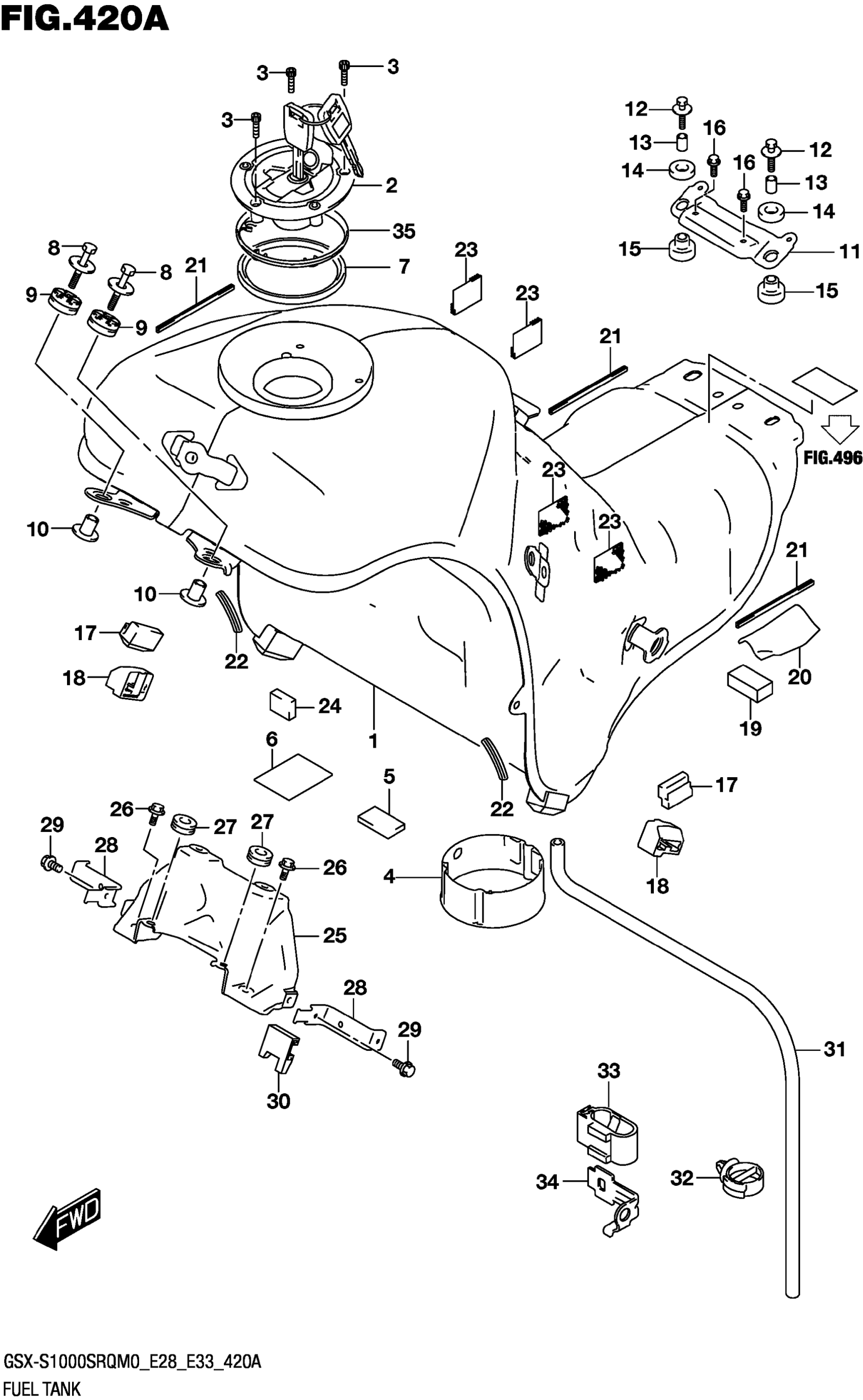

Suzuki GSX-S1000SRQM0 (2020) FUEL TANK (E33) Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-07L00

$1,169.92

2

CAP SET,FUEL TANK FILLER

44200-17840

$166.45

3

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

4

VESSEL,FUEL TANK INNER

44121-07L00

$16.65

5

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.99

6

CUSHION, FUEL TANK

44278-11J00

$5.19

7

RUBBER,FUEL TANK COVER

44295-07L01

$20.10

8

BOLT (6X30)

09116-06172

$2.50

9

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

10

SPACER,FUEL TANK FR

44512-16G00

$7.44

11

BRACKET, FUEL TANK REAR

44550-07L00

$36.83

12

BOLT (6X30)

09116-06171

$3.08

13

SPACER (6.5X9X18)

09180-06271

$2.35

14

CUSHION, FUEL TANK RR

44512-42E00

$3.43

15

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

16

BOLT (6X16)

09116-06168

$2.50

17

CUSHION, FUEL TANK SIDE This part replaces 44541-08J00.

44541-08J01

$5.45

18

CUSHION, FUEL TANK SIDE NO.2

44542-07L00

$10.18

19

CUSHION,FUEL TANK CENTER

44543-07L00

Unavailable

20

CUSHION, FUEL TANK INNER NO.3

44544-07L00

Unavailable

21

MOLDING,FUEL TANK (L:110)

44552-24B00

$14.08

22

MOLDING (L:50)

44552-24B10

$11.18

23

FASTENER,FRAME COVER (15X25)

47912-37H00

$10.18

24

CUSHION, FUEL TANK INNER NO.1

63191-31D00

Unavailable

25

BRACKET, FUEL TANK FRONT

44521-07L00

$305.32

26

BOLT (6X25)

01550-0625A

$1.97

27

CUSHION (6X18X6)

09320-06504

$4.96

28

BRACKET, FUEL TANK COVER

44530-07L00

$13.78

29

BOLT

01550-0616A

$1.97

30

CUSHION,FUEL TANK COVER BRKT

44545-07L00

$9.23

31

HOSE, FUEL TANK DRAIN NO.2

44423-04K11

$18.77

32

CLAMP

09403-20307

Unavailable

33

CLAMP, DRAIN HOSE

44484-07L00

$3.77

34

BRACKET, HOSE CLAMP

44485-07L00

$14.13

35

RING, FUEL TANK COVER

44297-07L00

$6.72
