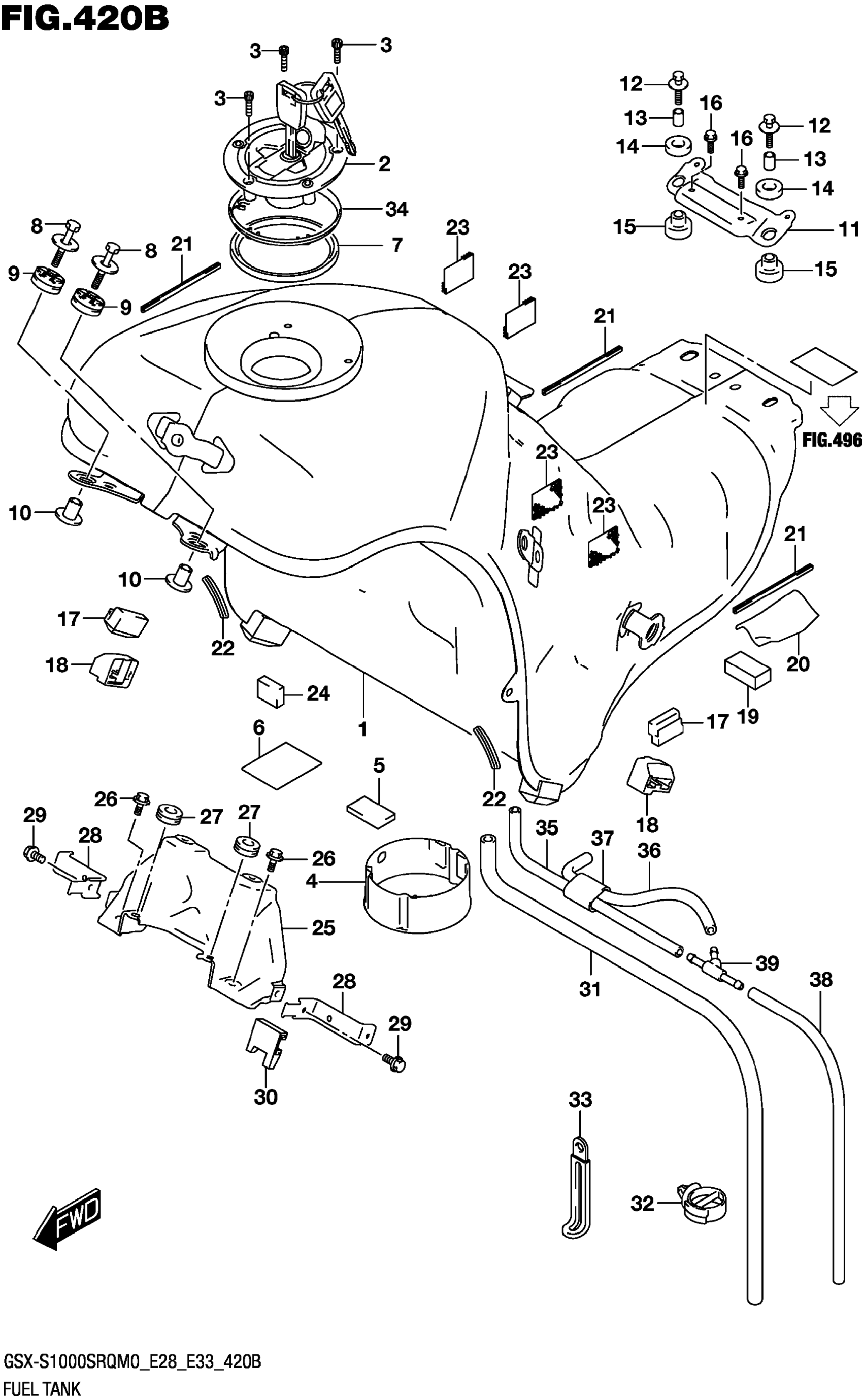

Suzuki GSX-S1000SRQM0 (2020) FUEL TANK (E28) Diagram

TANK ASSY, FUEL

44100-07L00

$1,169.92

CAP SET,FUEL TANK FILLER

44200-17840

$166.45

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

VESSEL,FUEL TANK INNER

44121-07L00

$16.65

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.99

CUSHION, FUEL TANK

44278-11J00

$5.19

RUBBER,FUEL TANK COVER

44295-07L01

$20.10

BOLT (6X30)

09116-06172

$2.50

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

SPACER,FUEL TANK FR

44512-16G00

$7.44

BRACKET, FUEL TANK REAR

44550-07L00

$36.83

BOLT (6X30)

09116-06171

$3.08

SPACER (6.5X9X18)

09180-06271

$2.35

CUSHION, FUEL TANK RR

44512-42E00

$3.43

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

BOLT (6X16)

09116-06168

$2.50

CUSHION, FUEL TANK SIDE This part replaces 44541-08J00.

44541-08J01

$5.45

CUSHION, FUEL TANK SIDE NO.2

44542-07L00

$10.18

CUSHION,FUEL TANK CENTER

44543-07L00

Unavailable

CUSHION, FUEL TANK INNER NO.3

44544-07L00

Unavailable

MOLDING,FUEL TANK (L:110)

44552-24B00

$14.08

MOLDING (L:50)

44552-24B10

$11.18

FASTENER,FRAME COVER (15X25)

47912-37H00

$10.18

CUSHION, FUEL TANK INNER NO.1

63191-31D00

Unavailable

BRACKET, FUEL TANK FRONT

44521-07L00

$305.32

BOLT (6X25)

01550-0625A

$1.97

CUSHION (6X18X6)

09320-06504

$4.96

BRACKET, FUEL TANK COVER

44530-07L00

$13.78

BOLT

01550-0616A

$1.97

CUSHION,FUEL TANK COVER BRKT

44545-07L00

$9.23

HOSE, FUEL TANK DRAIN NO.1

44423-04K01

Unavailable

CLAMP

09403-20307

Unavailable

CLAMP,DRAIN HOSE

44486-07L00

Unavailable

RING, FUEL TANK COVER

44297-07L00

$6.72

HOSE, FUEL TANK BRTHR NO.1

44424-04K01

$10.38

HOSE,FUEL TANK BRTHR NO.3

44424-15H11

$13.72

HOSE

09352-12164-010

Unavailable

HOSE (5X8.2X530)

09352-50005-530

Unavailable

3 WAY

09367-06007

$3.46
