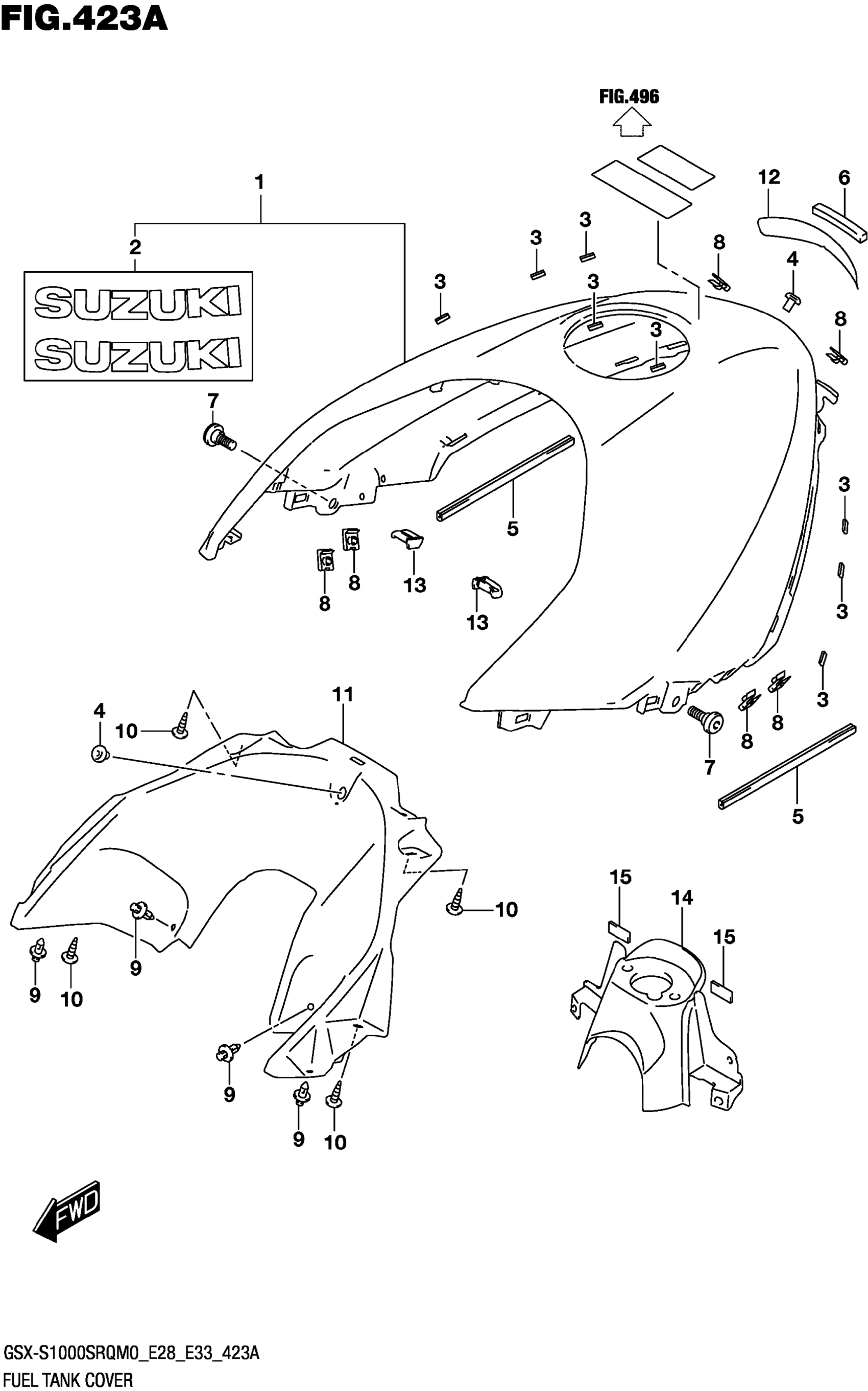

Suzuki GSX-S1000SRQM0 (2020) FUEL TANK COVER (E28) Diagram

COVER,FUEL TANK UPPER (SILVER | BODY COLOR:YMD

44290-07L00-YMD

$538.47

COVER,FUEL TANK UPPER (BLACK) | BODY COLOR:YVB

44290-07L00-YVB

$538.47

.EMBLEM,SUZUKI (RED)

68111-07L00-07G

$26.80

CUSHION, FUEL TANK COVER

44292-07L00

$1.38

SCREW, FUEL TANK COVER

44513-07L00

$5.13

MOLDING,FUEL TANK (L:110)

44552-24B00

$13.86

CUSHION, SEAT TAIL COVER CTR

45518-16G00

$7.30

SCREW (5X13)

09139-05091

$2.09

NUT (M5)

09148-05052

$3.13

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

SCREW

03541-0512A

$1.41

COVER, FUEL TANK FR (BLACK)

44281-07L00-YKV

$273.67

PROTECTOR, FUEL TANK COVER

44285-07L00

$18.80

CLIP

09409-08012

$2.61

COVER, FUEL TANK LOWER

44271-04K01

$25.82

CUSHION (10X30X2)

44894-24A00

$1.86
