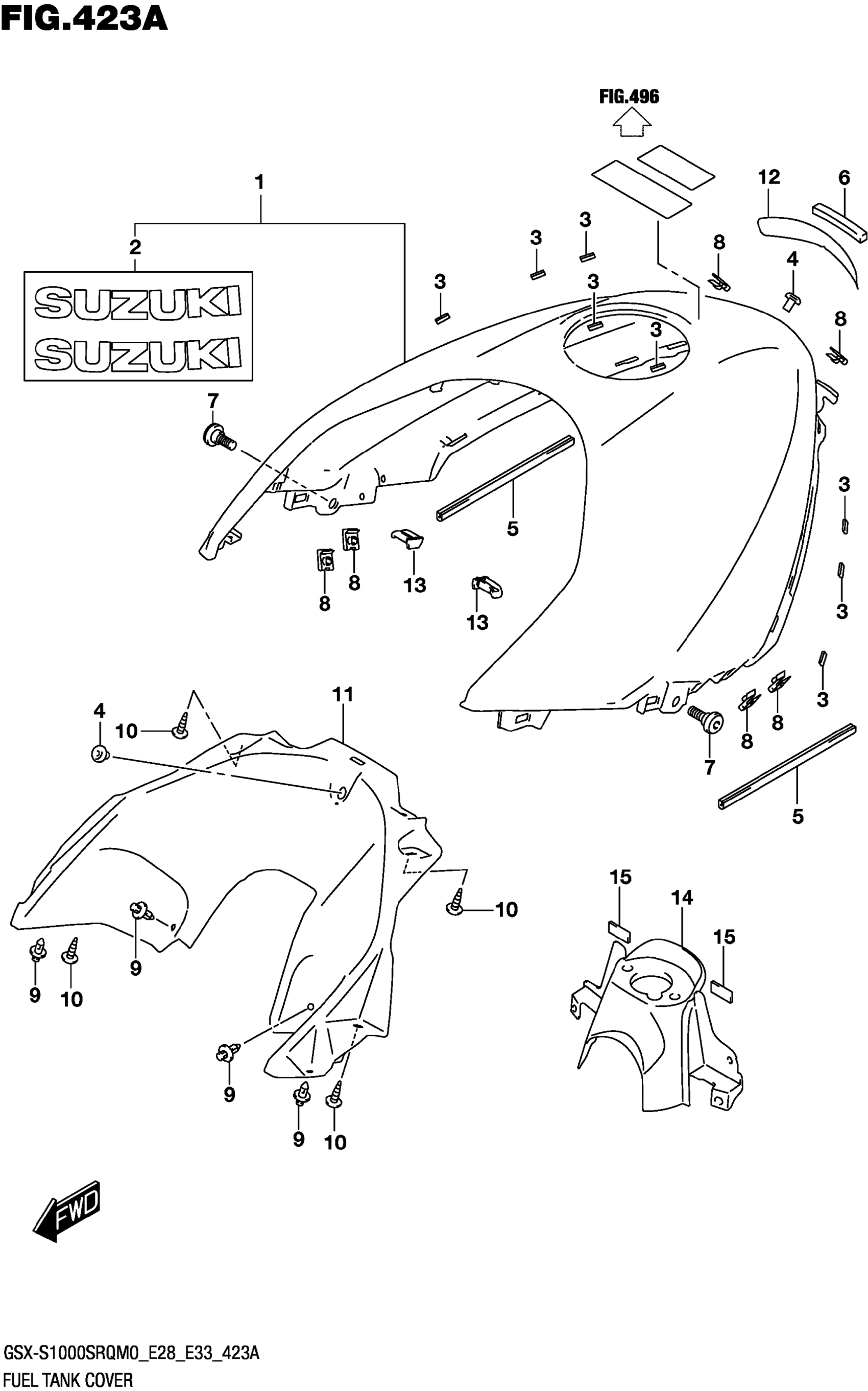

Suzuki GSX-S1000SRQM0 (2020) FUEL TANK COVER (E28) Diagram

COVER,FUEL TANK UPPER (SILVER | BODY COLOR:YMD

44290-07L00-YMD

$488.58

COVER,FUEL TANK UPPER (BLACK) | BODY COLOR:YVB

44290-07L00-YVB

$488.58

.EMBLEM,SUZUKI (RED)

68111-07L00-07G

$23.73

CUSHION, FUEL TANK COVER

44292-07L00

$1.49

SCREW, FUEL TANK COVER

44513-07L00

$4.55

MOLDING,FUEL TANK (L:110)

44552-24B00

$14.08

CUSHION, SEAT TAIL COVER CTR

45518-16G00

$6.47

SCREW (5X13)

09139-05091

$2.03

NUT (M5)

09148-05052

$3.37

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

SCREW

03541-0512A

$1.49

COVER, FUEL TANK FR (BLACK)

44281-07L00-YKV

$245.93

PROTECTOR, FUEL TANK COVER

44285-07L00

$16.65

CLIP

09409-08012

$2.82

COVER, FUEL TANK LOWER

44271-04K01

$22.87

CUSHION (10X30X2)

44894-24A00

$1.72
