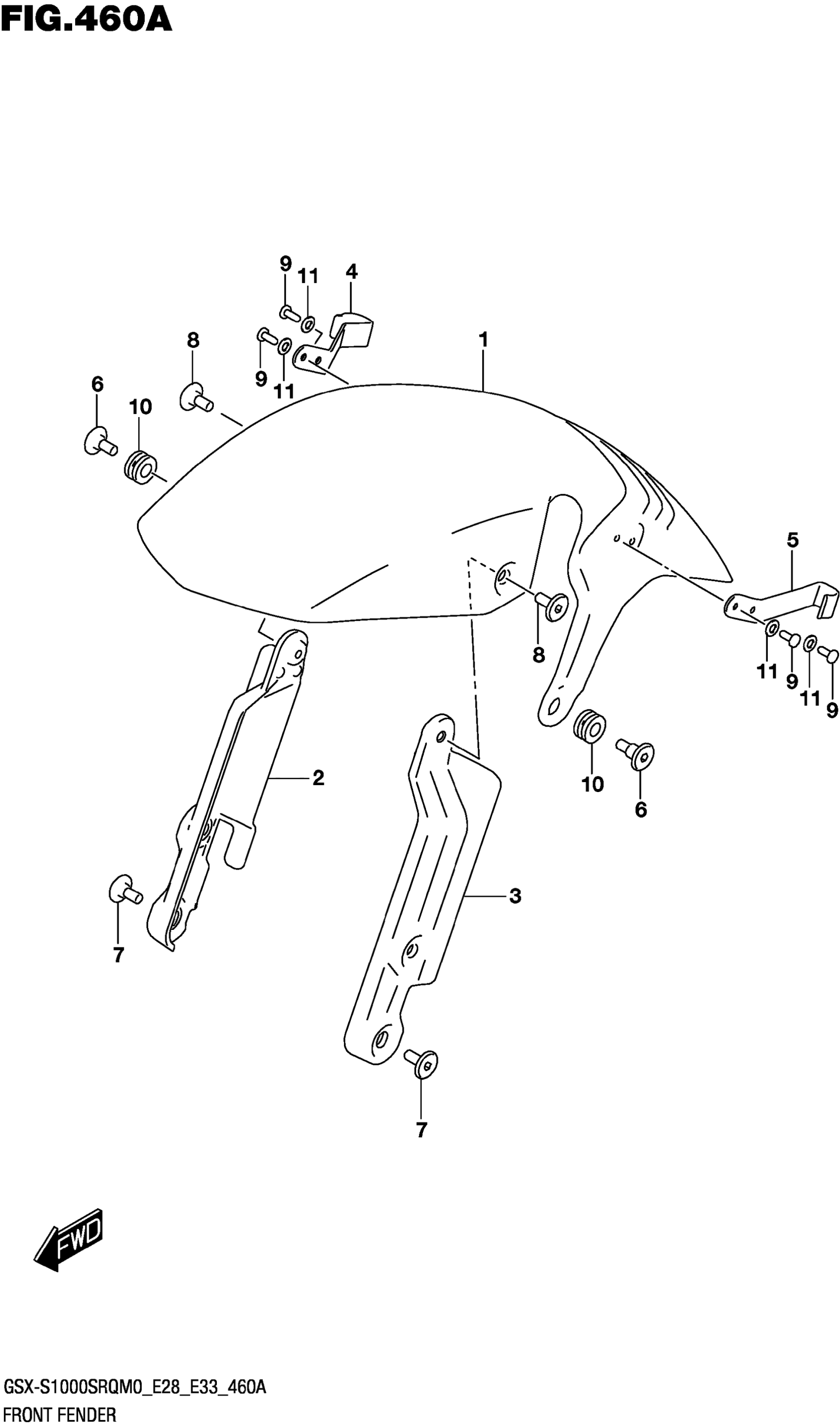

Suzuki GSX-S1000SRQM0 (2020) FRONT FENDER Diagram

#

Description
Price

1-1

FENDER, FRONT (SILVER) | BODY COLOR:YMD

53111-07L00-YMD

$250.53

1-2

FENDER,FRONT (BLACK) | BODY COLOR:YVB

53111-07L00-YVB

$250.53

2

BRACKET, FRONT FENDER RH | )

53112-07L00-YAP

$187.70

3

BRACKET, FRONT FENDER LH | )

53113-07L00-YAP

$187.70

4

CLAMP, BRAKE HOSE RH

53117-07L00

$8.83

5

CLAMP, BRAKE HOSE LH

53118-07L00

$8.83

6

SCREW (6X20)

09139-06211

$3.27

7

SCREW (6X16)

09139-06221

$3.62

8

SCREW (6X16)

09139-06222

$2.80

9

RIVET

09229-04038

$0.52

10

CUSHION (9X18X9.5)

09320-09016

$2.01

11

WASHER

08322-0104B

$0.25
