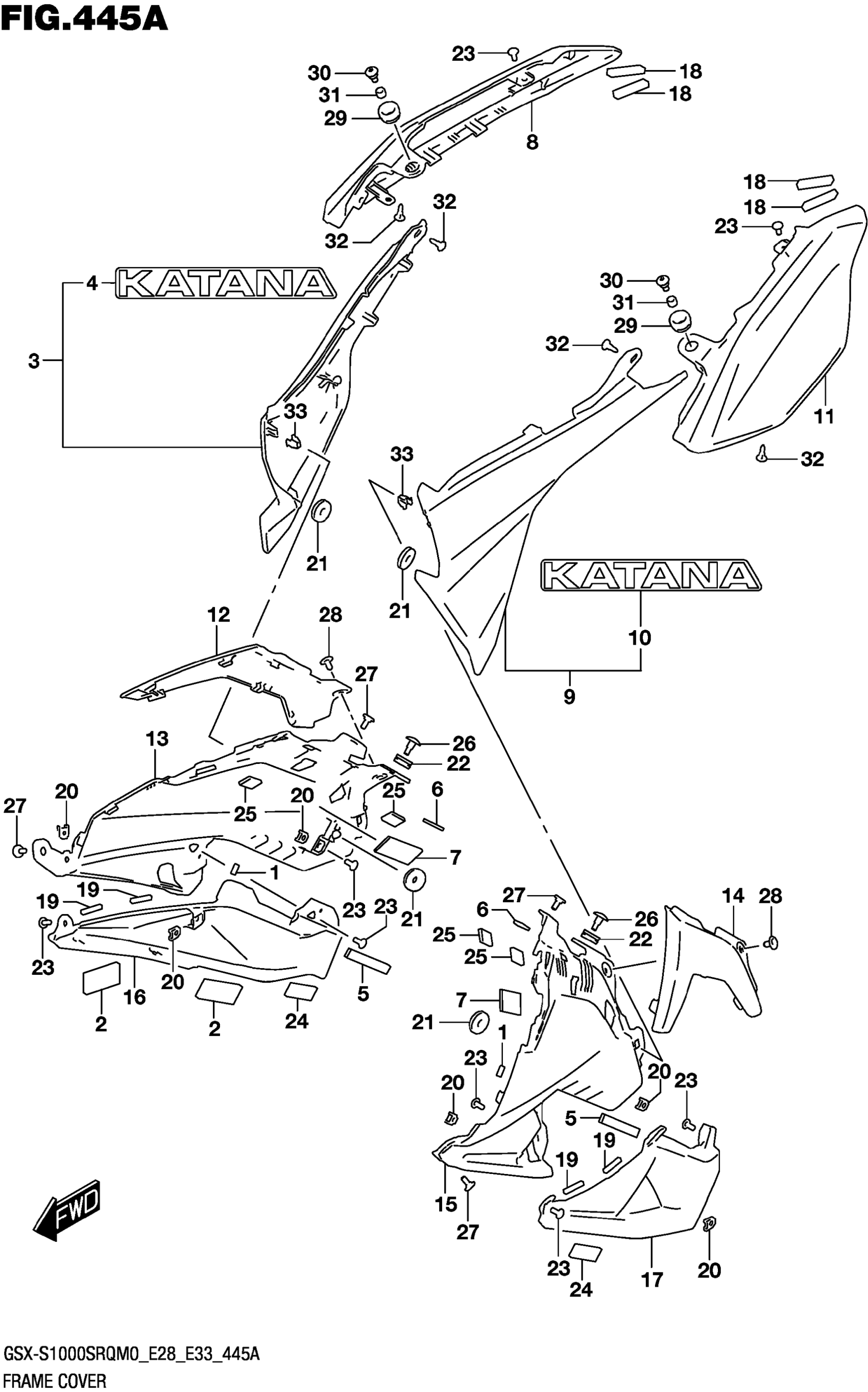

Suzuki GSX-S1000SRQM0 (2020) FRAME COVER Diagram

#

Description
Price

1

CUSHION, FUEL TANK COVER

44292-07L00

$1.49

2

.CUSHION (20X40X3)

44294-14H00

$3.33

3

COVER, FRAME RH (BLACK)

47110-07L00-YKV

$218.38

4

.EMBLEM, FRAME COVER | ACK)

68161-07L00-CTY

$14.30

5

CUSHION, FRAME COVER LWR

47114-07L00

$3.92

6

CUSHION, FRAME COVER CTR

47115-07L00

$12.43

7

CUSHION, FRAME COVER

47116-07L00

$4.55

8

COVER,FRAME REAR,R (BLACK)

47121-07L01-YVB

$189.55

9

COVER, FRAME LH (BLACK)

47210-07L00-YKV

$218.38

10

.EMBLEM, FRAME COVER | ACK)

68161-07L00-CTY

$14.30

11

COVER,FRAME REAR,L (BLACK)

47221-07L01-YVB

$189.55

12

COVER, FRAME FRONT UPPER RH

47311-07L01-YVB

$126.23

13-1

COVER, FRAME FR CTR RH | ILVER) BODY COLOR:YMD

47312-07L00-YMD

$205.43

13-2

COVER,FRAME FRONT CENTER,RH ( | LACK) BODY COLOR:YVB

47312-07L00-YVB

$205.43

14

COVER, FRAME FRONT UPPER LH

47321-07L01-YVB

Unavailable

15-1

COVER, FRAME FR CTR LH | ILVER) BODY COLOR:YMD

47322-07L00-YMD

$205.43

15-2

COVER,FRAME FRONT CENTER,LH ( | LACK) BODY COLOR:YVB

47322-07L00-YVB

$205.43

16

COVER, FRAME FR LWR RH

47411-07L00

$146.75

17

COVER, FRAME FR LWR LH

47511-07L00

$146.75

18

CUSHION (12X50X10)

94412-31F00

$2.13

19

TAPE (6X25X0.13)

94443-06G00

$3.25

20

NUT (M5)

09148-05045

$2.36

21

CUSHION (8x26x7)

09320-08018

$3.04

22

CUSHION (8.5X20X8)

09320-08510

$1.97

23

SCREW

03541-0512A

$1.49

24

CUSHION (15X23X4) | X23X4)

47163-10FA0

$4.55

25

FASTENER,FRAME COVER (15X25)

47912-37H00

$10.18

26

SCREW (5X16.4)

09139-05078

$3.49

27

SCREW (5X13)

09139-05091

$2.03

28

CLIP

09409-06328

$3.23

29

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.91

30

SCREW (6X16)

09139-06030

$3.70

31

SPACER (6.5X10X7)

09180-06283

$1.91

32

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

33

CLIP (10.5X14.3)

09409-08326

$2.48
