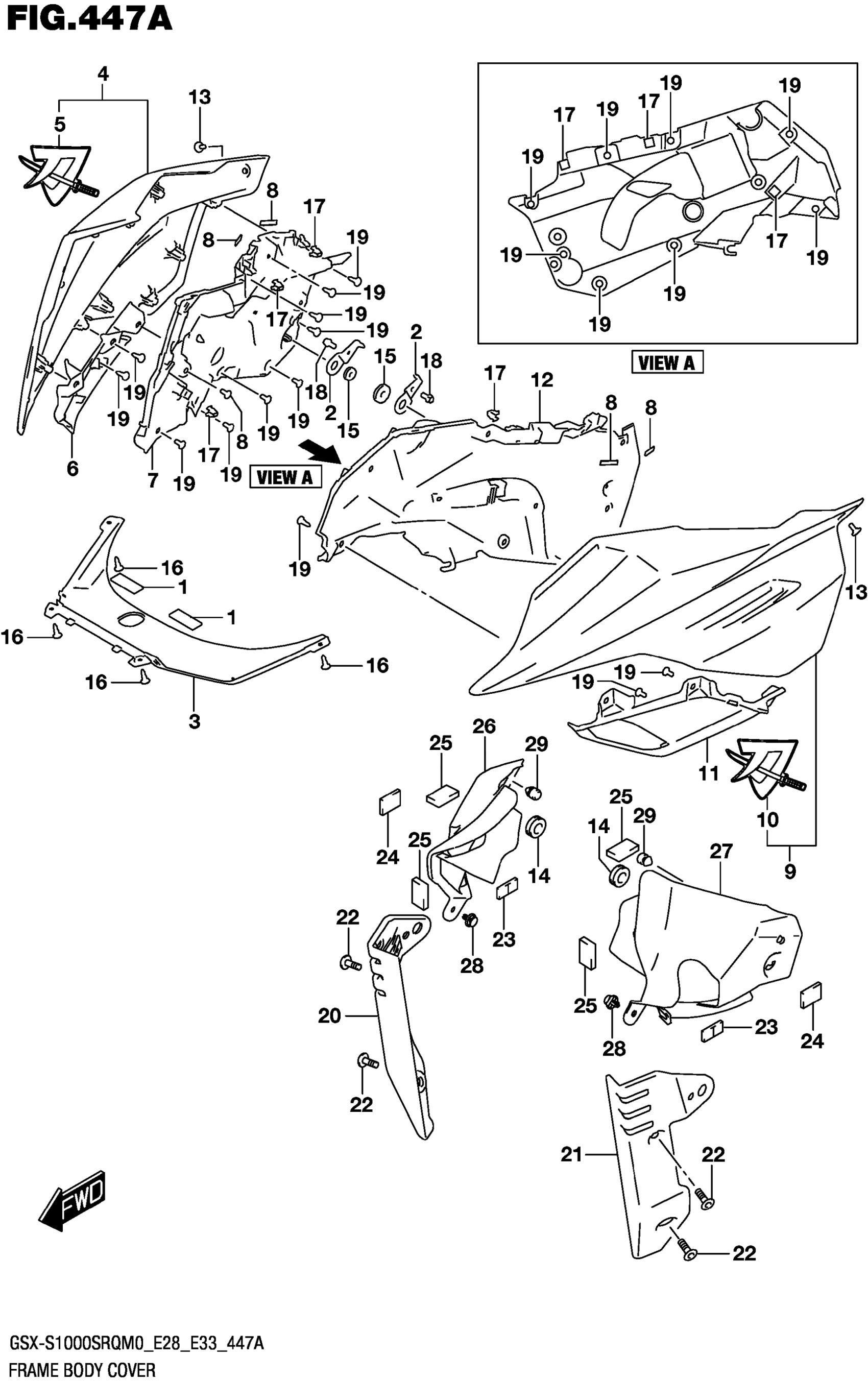

Suzuki GSX-S1000SRQM0 (2020) FRAME BODY COVER Diagram

#

Description
Price

1

.COVER (30X45X2)

36930-60A10

$2.80

2

BRACKET, FRAME BODY COVER

47539-04K00

$12.33

3

COVER, BODY COWL

94419-07L00

$36.18

4-1

COVER, SIDE RH (SILVER) | BODY COLOR:YMD

94670-07L00-YMD

$250.02

4-2

COVER,SIDE RH (BLACK) | BODY COLOR:YVB

94670-07L00-YVB

$250.02

5-1

.TAPE, SIDE COWLING | ,SILVER) BODY COLOR:YMD

68685-07L00-BWS

$20.17

5-2

.TAPE,SIDE COWLING (CHROME,RE | ,BLACK) BODY COLOR:YVB

68685-07L00-BWT

$20.17

6

COVER, SIDE LOWER RH

94672-07L00

$30.18

7

COVER, SIDE INNER RH

94673-07L00

$33.58

8

CUSHION (6X25X1)

94675-07L00

$2.75

9-1

COVER, SIDE LH (SILVER) | BODY COLOR:YMD

94680-07L00-YMD

$250.02

9-2

COVER,SIDE,LH (BLACK) | BODY COLOR:YVB

94680-07L00-YVB

$250.02

10-1

.TAPE, SIDE COWLING | ,SILVER) BODY COLOR:YMD

68685-07L00-BWS

$20.17

10-2

.TAPE,SIDE COWLING (CHROME,RE | ,BLACK) BODY COLOR:YVB

68685-07L00-BWT

$20.17

11

COVER, SIDE LOWER LH

94682-07L00

$30.18

12

COVER, SIDE INNER LH

94683-07L00

$33.58

13

SCREW (5X13)

09139-05091

$2.09

14

CUSHION (6X18X6)

09320-06504

$4.61

15

CUSHION (8x26x7)

09320-08018

$2.82

16

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

17

CLIP (10.5X14.3)

09409-08326

$2.53

18

BOLT

01547-0612B

$1.25

19

SCREW

03541-0512B

$1.82

20

COVER, FRAME BODY RH

47531-07L00

$65.48

21

COVER, FRAME BODY LH

47541-07L00

$65.48

22

BOLT, FRAME BODY COVER

47532-07L02

$3.62

23

CUSHION (10X30X2)

44894-24A00

$1.86

24

PAD (20X25X2) | CUT AS REQUIRED

61544-94500

$1.22

25

PAD (20X25X2) | CUT AS REQUIRED

61544-94500

$1.22

26

COVER, FRAME BODY UPR RH

47551-07L00

Unavailable

27

COVER, FRAME BODY UPR LH

47561-07L00

$60.78

28

CLIP

94479-35F00

$5.38

29

CUSHION

09321-06036

$1.56
