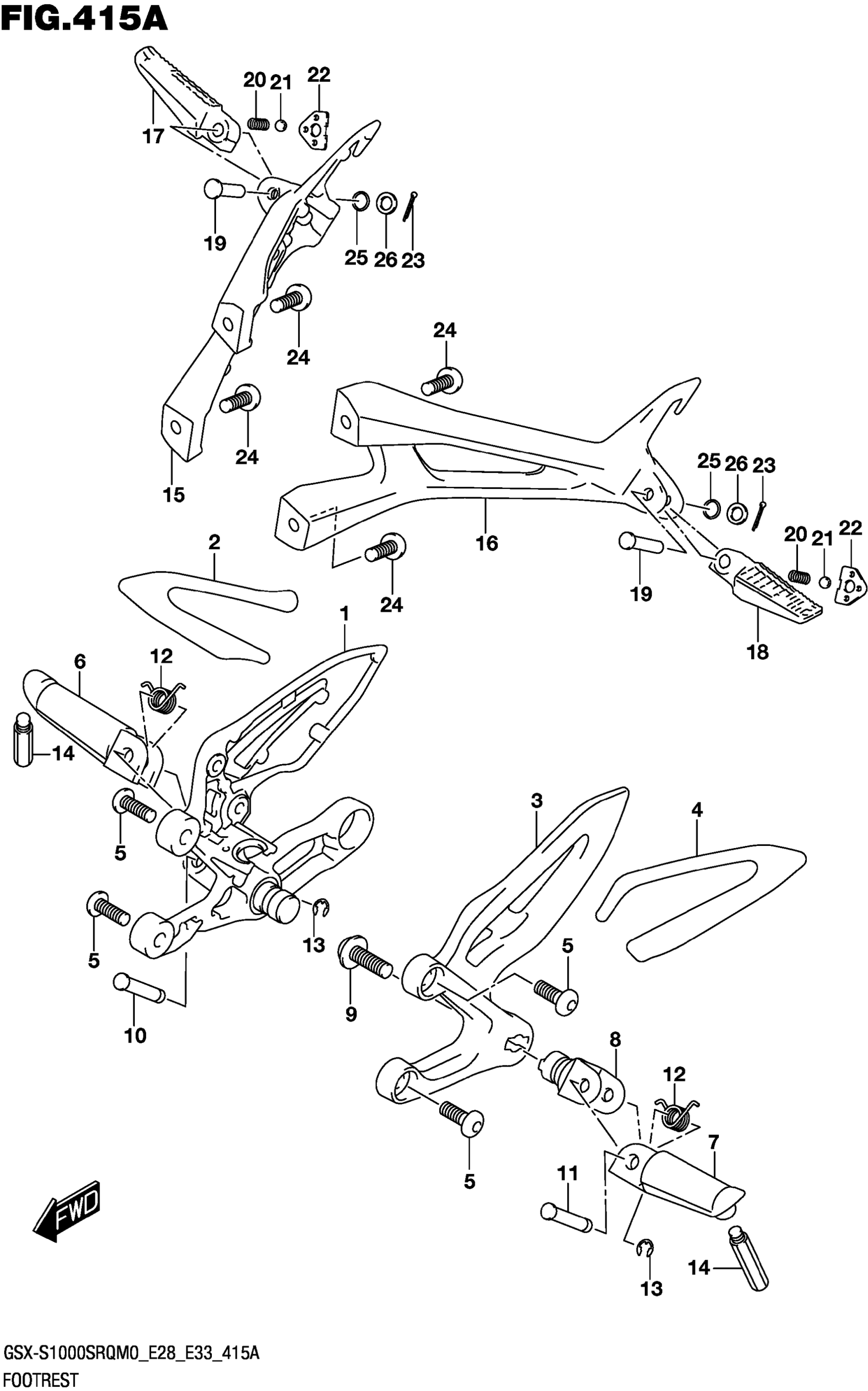

Suzuki GSX-S1000SRQM0 (2020) FOOTREST Diagram

#

Description
Price

1

BRACKET, FR FOOTREST RH | (E28,E33) This part replaces 43510-04K10.

43510-48K10

$110.40

2

TAPE, FR FOOTREST RH | (E28,E33)

43571-04K10

$27.42

3

BRACKET,FR FOOTREST,L | (E28,E33)

43521-04K10

$113.82

4

TAPE, FR FOOTREST LH | (E28,E33)

43572-04K10

$27.97

5

BOLT (8X23) | (E28,E33)

09106-08200

$2.32

6

BAR,FRONT FOOTREST,R | (E28,E33)

43516-35F20

$47.54

7

BAR,FRONT FOOTREST,L | (E28,E33)

43526-35F20

$47.54

8

HOLDER,FOOTREST,L | (E28,E33) This part replaces 43530-16G10.

43540-04K10

$41.57

9

BOLT (10X28) | (E28,E33)

09106-10064

$4.90

10

PIN | (E28,E33)

09208-08019

$2.79

11

PIN | (E28,E33)

09208-08018

$2.79

12

SPRING,FRONT FOOTREST | (E28,E33)

43581-47H00

$3.33

13

E-RING | (E28,E33)

08332-1106A

$1.49

14

.BOLT,BANK SENSOR | (E28,E33)

43576-48B50

$14.20

15

BRACKET,PILLION FOOTREST RH | (E28,E33)

43811-07L00

$256.35

16

BRACKET,PILLION FOOTREST LH | (E28,E33)

43821-07L00

$256.35

17

BAR, PILLION FOOTREST RH | (E28,E33)

43611-37H60

$56.12

18

BAR, PILLION FOOTREST LH | (E28,E33)

43621-37H60

$56.12

19

PIN | (E28,E33)

09200-08002

$2.05

20

SPRING | (E28,E33)

09440-05003

$1.49

21

BALL | (E28,E33)

06111-07004

$1.49

22

PLATE,PILLION FOOTREST | (E28,E33)

43816-01H20

$6.58

23

PIN | (E28,E33)

04111-2015A

$1.49

24

BOLT (8X23) | (E28,E33)

09106-08200

$2.32

25

O RING (D:2.4,ID:6.9) | (E28,E33)

18592-68K00

$4.82

26

WASHER (8.5X14X1.6) | (E28,E33)

09160-08090

$2.39
