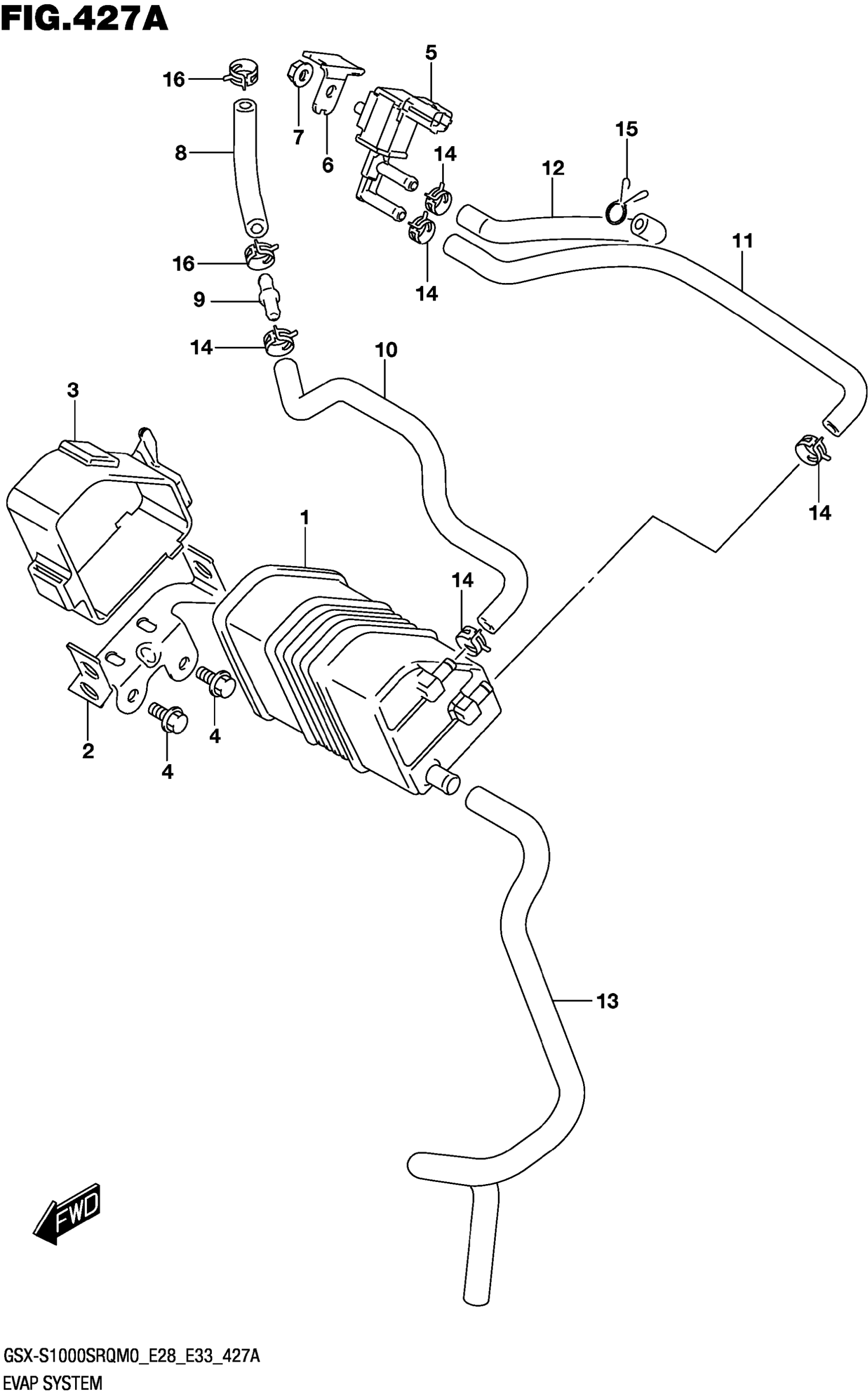

Suzuki GSX-S1000SRQM0 (2020) EVAP SYSTEM (E33) Diagram

#

Description
Price

1

CANISTER ASSY,CHARCOAL This part replaces 18560-04K00.

18560-04K01

$107.13

2

BRACKET, CANISTER

18571-04K00

Unavailable

3

CUSHION, CANISTER

18572-04K00

Unavailable

4

BOLT

01550-0612A

$1.97

5

VALVE,CANISTER PURGE

18117-52G10

$151.17

6

BRACKET, PURGE VALVE

18573-04K00

Unavailable

7

NUT (6X12)

08316-1006A

$2.19

8

HOSE,SURGE NO.1

18561-07L00

$13.78

9

JOINT

09367-06009

Unavailable

10

HOSE,SURGE NO.2

18562-07L00

$26.73

11

HOSE, PURGE NO.1

18562-04K00

Unavailable

12

HOSE, PURGE NO.2

18563-04K00

Unavailable

13

HOSE, CANISTER DRAIN

18564-04K00

Unavailable

14

CLIP (ID:10.5,H:8)

09401-10409

$2.26

15

CLIP (ID:10)

09401-10403

$1.65

16

CLIP (ID:11,H:8)

09401-11413

$2.26
