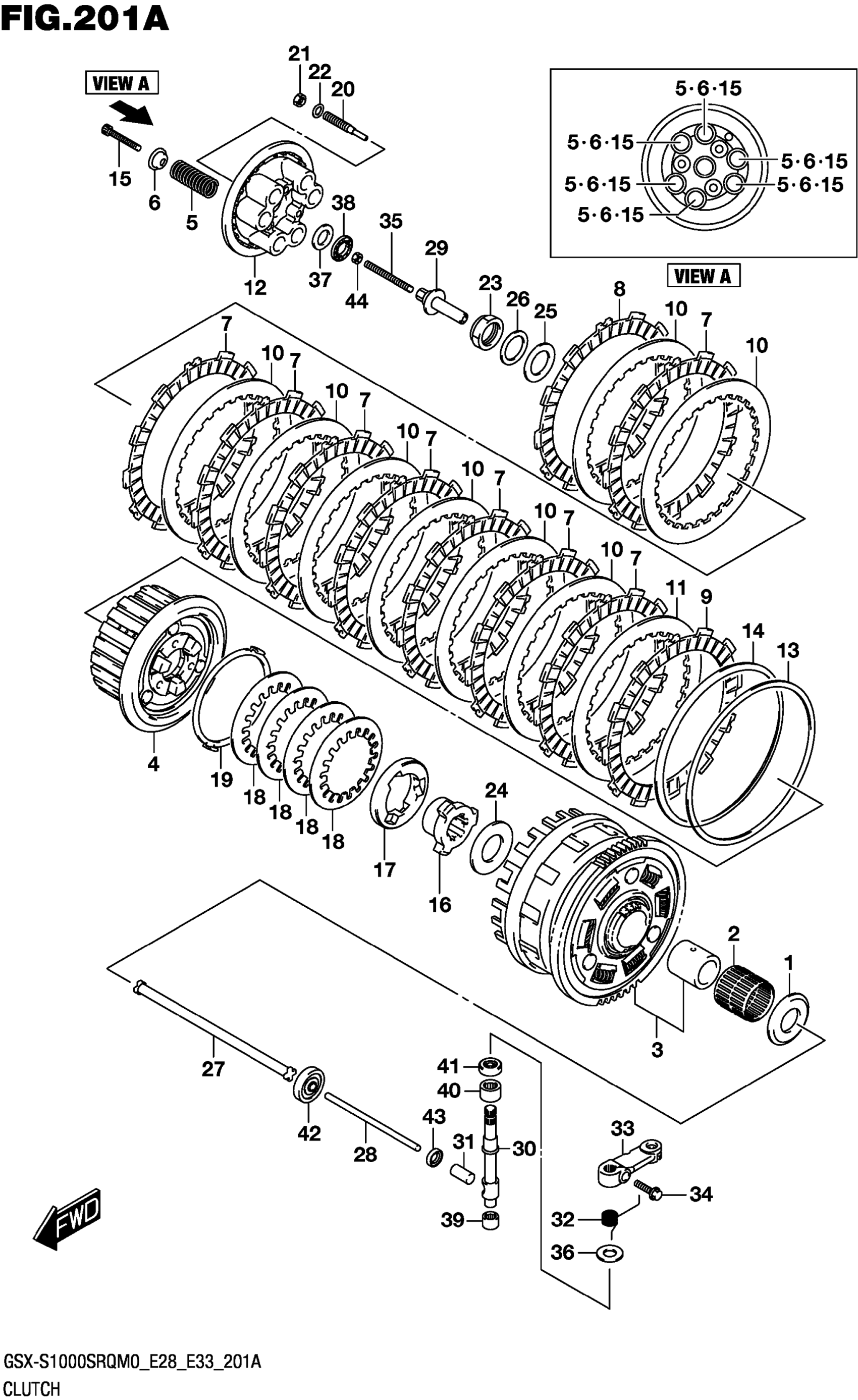

Suzuki GSX-S1000SRQM0 (2020) CLUTCH Diagram

#

Description
Price

1

WASHER (25X54X2.4)

09160-25073

$15.75

2

BEARING (35X40X35.8)

09263-35017

$38.42

3

GEAR ASSY, PRI DRIVEN (NT:73) | 3)

21200-40880

$578.83

4

HUB,CLUTCH SLEEVE

21410-41G20

$268.38

5

SPRING,CLUTCH

21413-41G00

$9.70

6

WASHER

21414-29F00

$6.15

7

PLATE,CLUTCH DRIVE (T:2.7)

21441-36F00

$20.82

8

PLATE,CLUTCH DRIVE (T:2.7)

21441-49H00

$39.43

9

PLATE,CLUTCH DRIVE NO.3 (T:2. | )

21442-41G00

$26.85

10

PLATE, CLUTCH DRIVEN (T:2.3)

21451-41G00

$13.42

11

PLATE, CLUTCH DRIVEN NO.2 | 3)

21451-41G40

$18.80

12

DISC,CLUTCH PRESSURE

21462-41G00

$88.67

13

.SEAT,WAVE WASHER

21471-41G00

$13.59

14

.WASHER,CLUTCH PLATE WAVE

21472-41G20

$19.64

15

BOLT, CLUTCH SPRING

21482-41G10

$3.21

16

CAM,CLUTCH DRIVE

21611-41G20

$158.50

17

CAM,CLUTCH DRIVEN

21612-41G20

$133.88

18

WASHER,CAM REACTION WAVE

21621-41G00

$14.59

19

WASHER,CAM REACTION SEAT

21624-41G10

$18.22

20

LIFTER,CLUTCH PRESSURE DISC

21622-41G00

$10.33

21

NUT,CL PRESS DISC LIFTER LOCK

21623-41G00

$2.80

22

SHIM (8.8X14X1)

09181-08139

$1.99

23

NUT

09159-24010

$12.27

24

.WASHER (25X50X2.5)

09160-25056

$10.94

25

WASHER (25X41X2.5)

09160-25077

$11.38

26

WASHER (24.2X35X2.7)

09164-24008

$5.00

27

ROD,CLUTCH PUSH,R

23110-38B00

$22.18

28

ROD,CLUTCH PUSH,L

23111-35F00

$12.73

29

PIECE,CLUTCH PUSH

23121-41G00

$55.32

30

CAMSHAFT,CLUTCH RELEASE

23122-41G00

$64.22

31

CAP,CLUTCH PUSH ROD

23123-41G00

$10.46

32

SPRING,CLUTCH RELEASE RETURN

23125-41G00

$3.11

33

ARM, CLUTCH RELEASE

23271-41G60

$62.70

34

BOLT (6X20)

09103-06527

$2.07

35

SCREW (6X73)

09134-06015

$6.44

36

WASHER (10.5X24X1.0)

09160-10020

$1.93

37

WASHER (15.5X28X1)

09160-15045

$3.62

38

BEARING (15X28X2)

09263-15003

$7.70

39

BEARING (10X14X10)

09263-10014

$12.57

40

BEARING (12X18X12)

09263-12027

$6.79

41

SEAL,OIL (10X20X6)

09282-10012

$7.42

42

SEAL,OIL (6X34X10.5)

09283-06010

$15.62

43

SEAL,OIL (10X17X5)

09285-10004

$3.13

44

NUT

08310-0006A

$1.89
