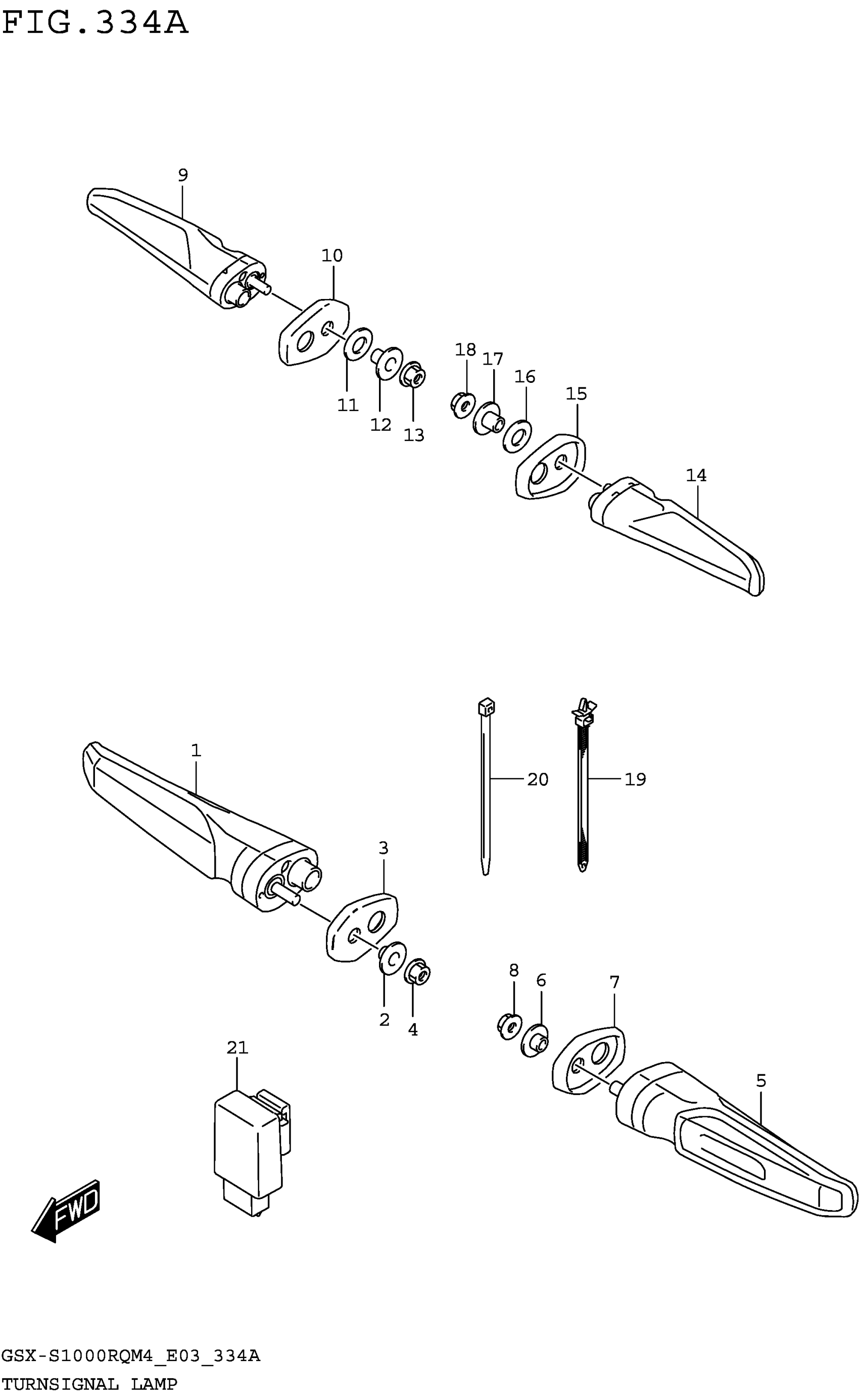

Suzuki GSX-S1000RQM4 (2024) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL R

35601-06LG0

$118.73

2

WASHER

09169-06098

$4.53

3

CUSHION,TURNSIGNAL

35690-06L00

$7.64

4

NUT (6X12)

08316-1006A

$2.19

5

LAMP ASSY,FRONT TURNSIGNAL,L This part replaces 35602-06LG0.

35602-06LG1

$98.92

6

WASHER

09169-06098

$4.53

7

CUSHION,TURNSIGNAL

35690-06L00

$7.64

8

NUT (6X12)

08316-1006A

$2.19

9

LAMP ASSY,REAR TURNSIGNAL,R

35603-06LJ0

$139.67

10

CUSHION,TURNSIGNAL

35690-06L10

$7.45

11

CUSHION

09320-08056

$2.70

12

WASHER,TURNSIGNAL

09169-06101

$10.60

13

NUT (6X12)

08316-1006A

$2.19

14

LAMP ASSY,REAR TURNSIGNAL,L

35604-06LJ0

$139.67

15

CUSHION,TURNSIGNAL

35690-06L10

$7.45

16

CUSHION

09320-08056

$2.70

17

WASHER,TURNSIGNAL

09169-06101

$10.60

18

NUT (6X12)

08316-1006A

$2.19

19

CLAMP (L:90)

09407-11402

$1.80

20

CLAMP (L:145)

09407-14407

$3.57

21

RELAY ASSY,TURNSIGNAL

38610-06LA0

$109.93
