Description

Price

1-1

WHEEL, REAR (17M/CXMT6.00) | (BLUE) FOR YSF

64111-04K30-YLY

$924.72

1-2

WHEEL,REAR (17M/CXMT6.00,BLAC | (BLACK) FOR QKA,YVB

64111-04K30-019

$997.88

2

SPACER,RR HUB BEARING

64731-35F10

$48.41

3

BEARING (28X52X12)

09262-28062

$23.81

4

SEAL,OIL (37X52X8)

09284-37002

$7.19

5

DISC, REAR BRAKE

69211-04K00

$158.73

6

BOLT (8X21)

09106-08160

$3.22

7

RING,SPEED SENSOR RR (50T)

64162-04K00

$34.05

8

BOLT

07130-0512A

$2.19

9

AXLE, RR

64711-49G30

$160.21

10

NUT,REAR AXLE

64721-17K00

$15.01

11

WASHER (25.2X42X3.2)

09160-25070

$4.30

12

SPACER,REAR AXLE,R

64741-35F10

$12.34

13

SPACER,REAR AXLE,L

64751-47H10

$21.15

14

DRUM,REAR SPROCKET

64610-04K00

$283.02

15

RETAINER,RR SPROCKET DRUM

64733-35F00

$24.36

16

BEARING (32X65X17)

09262-32024

$35.55

17

SEAL,OIL (39X65X7)

09285-39001

$9.58

18

ABSORBER,RR HUB SHOCK

64651-47H10

$28.80

19

SPROCKET, REAR (NT:44)

64511-04K00

$109.98

20

NUT

08319-3110A

$2.73

21

TIRE, REAR (190/50ZR17M/C | (73W)) SPORTMAX ROADSPORT2 P,DUNLOP

65110-48K01

$346.40

22

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

23-1

BALANCER,WHEEL (10G)

55411-22H00

$9.70

23-2

BALANCER,WHEEL (20G)

55412-22H00

$11.37

23-3

BALANCER,WHEEL (30G)

55413-22H00

$12.93

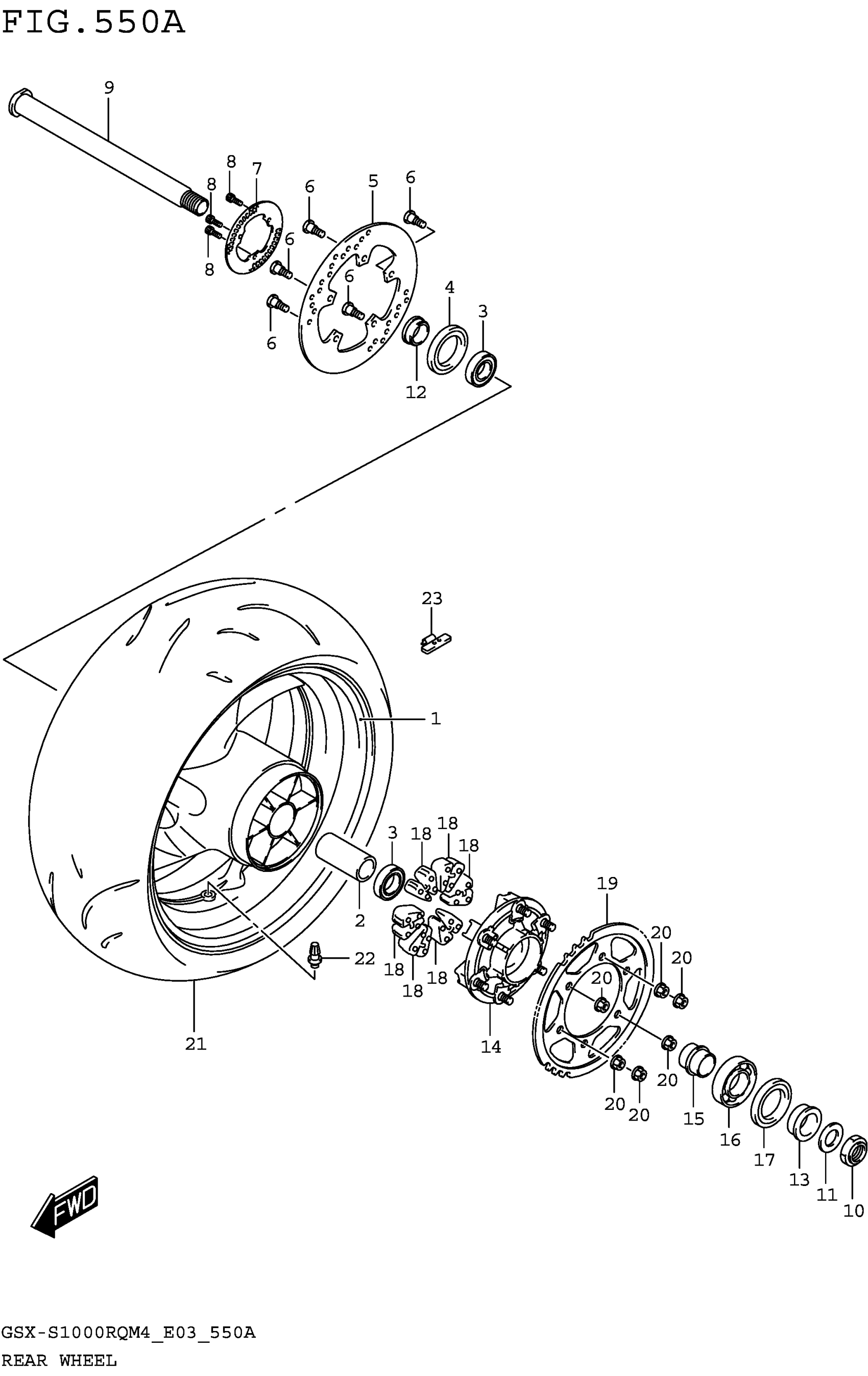

Suzuki GSX-S1000RQM4 (2024) REAR WHEEL Diagram
