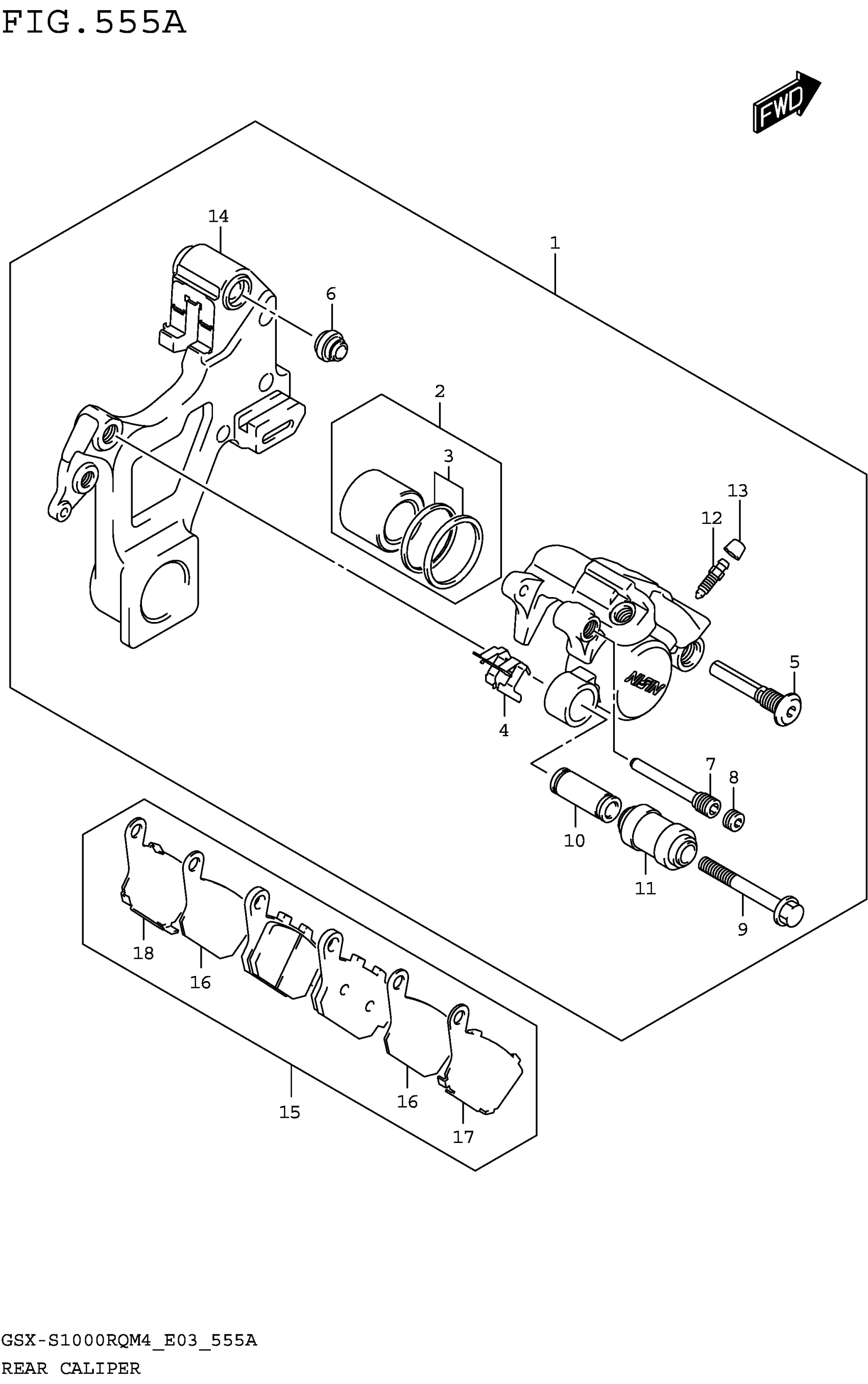

Suzuki GSX-S1000RQM4 (2024) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR

69100-04K00-999

$342.45

2

.PISTON SET

69100-04810

$44.45

3

..SEAL SET,PISTON

69100-04820

$8.27

4

.SPRING,PAD

69115-04F00

$11.53

5

.PIN,BOLT

59305-36E00

$17.14

6

.BOOT

59303-14500

$5.06

7

.PIN,PAD

69141-40F00

$27.76

8

.PLUG,PIN

59146-21E10

$5.62

9

.BOLT

69182-04F00

$8.54

10

.SLEEVE

69185-04F00

$20.88

11

.BOOT,SLEEVE

69186-04F00

$12.45

12

.BLEEDER

59121-01A00

$7.99

13

.CAP,BLEEDER

59122-46H00

$4.17

14

.BRACKET

69150-04K00

$138.65

15

PAD & RETAINER SET

69100-08860

$62.13

16

.INSULATOR

69132-08J00

$13.43

17

.RETAINER

69133-16G00

$18.93

18

.RETAINER

69134-16G00

$18.60
