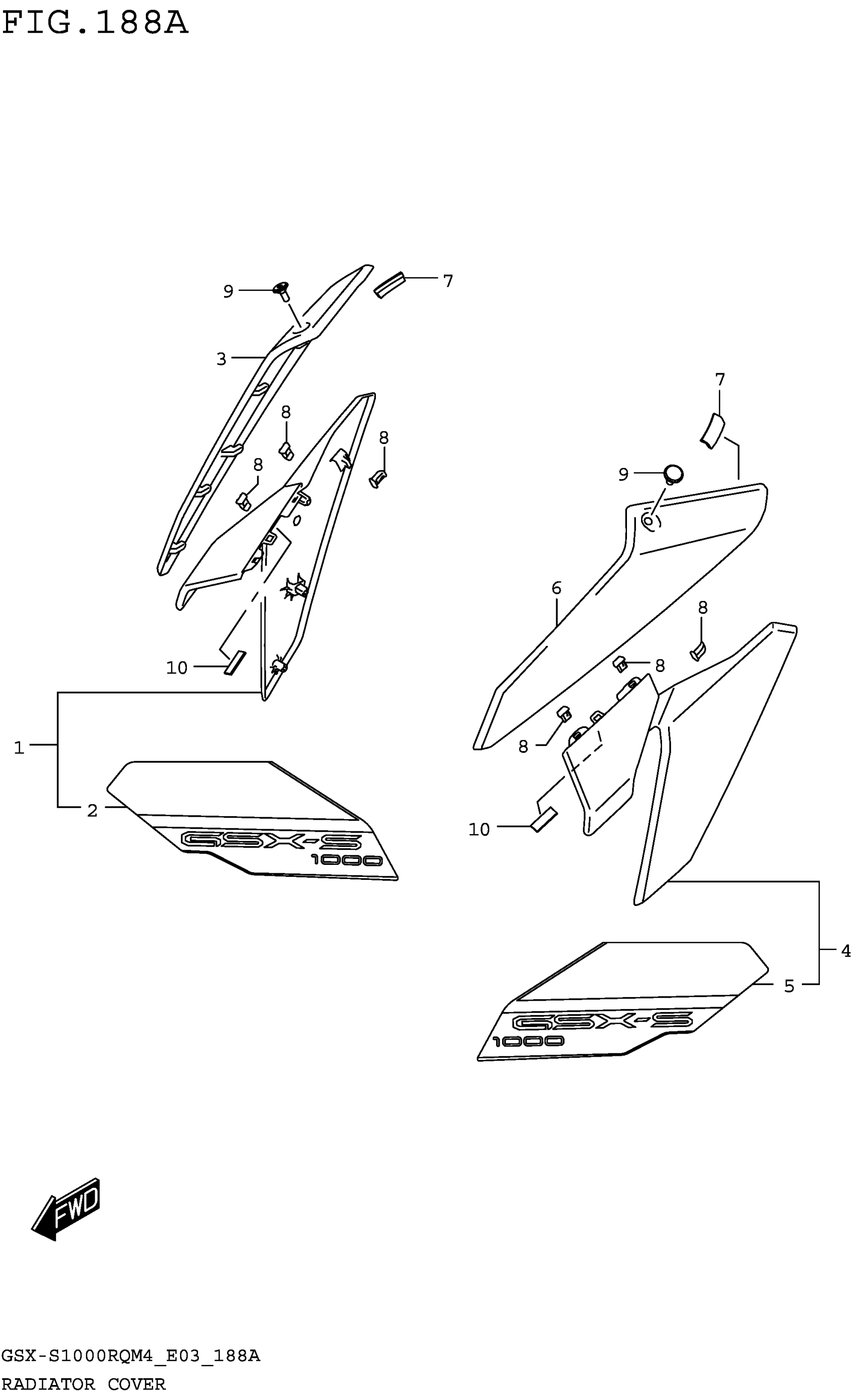

Suzuki GSX-S1000RQM4 (2024) RADIATOR COVER Diagram

#

Description
Price

1-1

COVER, FRAME BODY LWR RH | (WHITE) FOR YSF

47530-48K20-YUH

$121.58

1-2

COVER, FRAME BODY LWR RH | (BLACK) FOR YVB

47530-48K20-YKV

$121.58

1-3

COVER, FRAME BODY LWR RH (RED | FOR QKA

47530-48K20-YYG

$121.58

2-1

.TAPE, FRAME BODY COVER LWR R | FOR YSF

68135-48K40-CRZ

$50.93

2-2

.TAPE, FRAME BODY COVER LWR | RH (BLACK/GRAY) FOR YVB

68135-48K40-CSA

$36.12

2-3

.TAPE, FRAME BODY COVER LWR R | FOR QKA

68135-48K40-CSB

$50.93

3-1

COVER,FRAME BODY UPR,R (BLUE) | (BLUE)

47532-48K00-YSF

$71.28

3-2

COVER,FRAME BODY UPR,R (BLACK | (BLACK)

47532-48K00-YVB

$71.28

3-3

COVER, FRAME BODY UPR RH | (SILVER)

47532-48K00-QKA

$61.10

4-1

COVER, FRAME BODY LWR LH | (WHITE) FOR YSF

47540-48K20-YUH

$121.58

4-2

COVER, FRAME BODY LWR LH | (BLACK) FOR YVB

47540-48K20-YKV

$121.58

4-3

COVER, FRAME BODY LWR LH (RED | FOR QKA

47540-48K20-YYG

$121.58

5-1

.TAPE, FRAME BODY COVER LWR L | FOR YSF

68145-48K40-CRZ

$50.93

5-2

.TAPE, FRAME BODY COVER LWR | LH (BLACK/GRAY) FOR YVB

68145-48K40-CSA

$36.12

5-3

.TAPE, FRAME BODY COVER LWR L | FOR QKA

68145-48K40-CSB

$50.93

6-1

COVER,FRAME BODY UPR,L (BLUE) | (BLUE)

47542-48K00-YSF

$71.28

6-2

COVER,FRAME BODY UPR,L (BLACK | (BLACK)

47542-48K00-YVB

$71.28

6-3

COVER, FRAME BODY UPR LH | (SILVER)

47542-48K00-QKA

$61.10

7

CUSHION (16X30X3.5)

94633-31J00

$2.43

8

CLIP

09409-08012

$2.54

9

SCREW (5X13)

09139-05091

$2.01

10

CUSHION (10X30X2)

44894-24A00

$1.78
